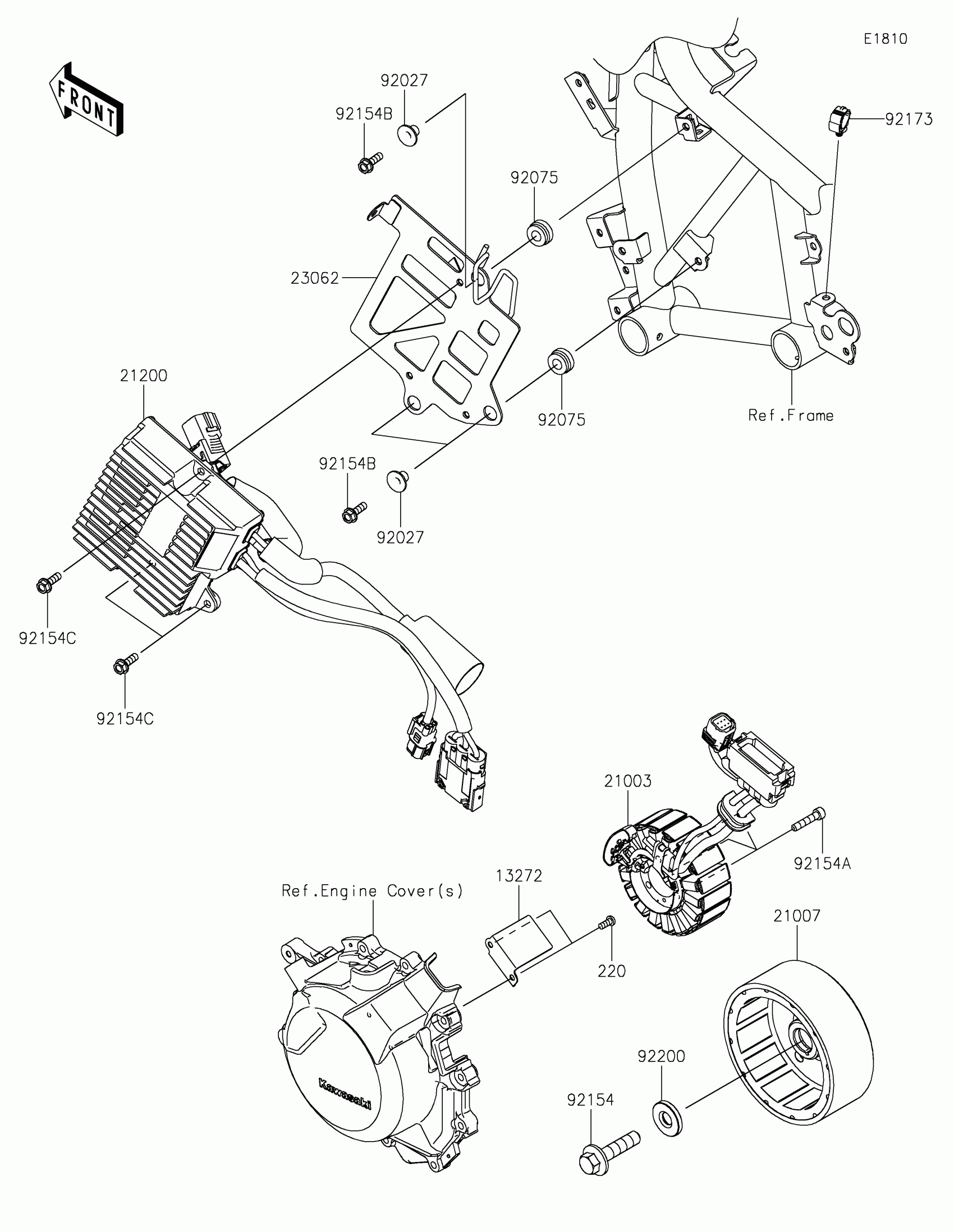

Kawasaki Z7 Hybrid Generator Diagram

Description

Price

13272

PLATE,HARNESS

13272-4037

$10.42

21003

STATOR

21003-0218

$745.41

21007

ROTOR

21007-0740

$1,019.33

21200

INVERTER

21200-0001

$2,184.08

23062

BRACKET-COMP,INVERTER

23062-1366

$70.55

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92154

BOLT,12X50

92154-1826

$7.34

92154A

BOLT,SOCKET,6X30

92154-2820

$2.17

92154B

BOLT,6X20

92154-7029

$1.07

92154C

BOLT,FLANGED,6X20

92154-7513

$2.21

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92200

WASHER,12X33X5

92200-0220

$7.75

220

SCREW-PAN-CROS,5X12

220AA0512

$0.47
