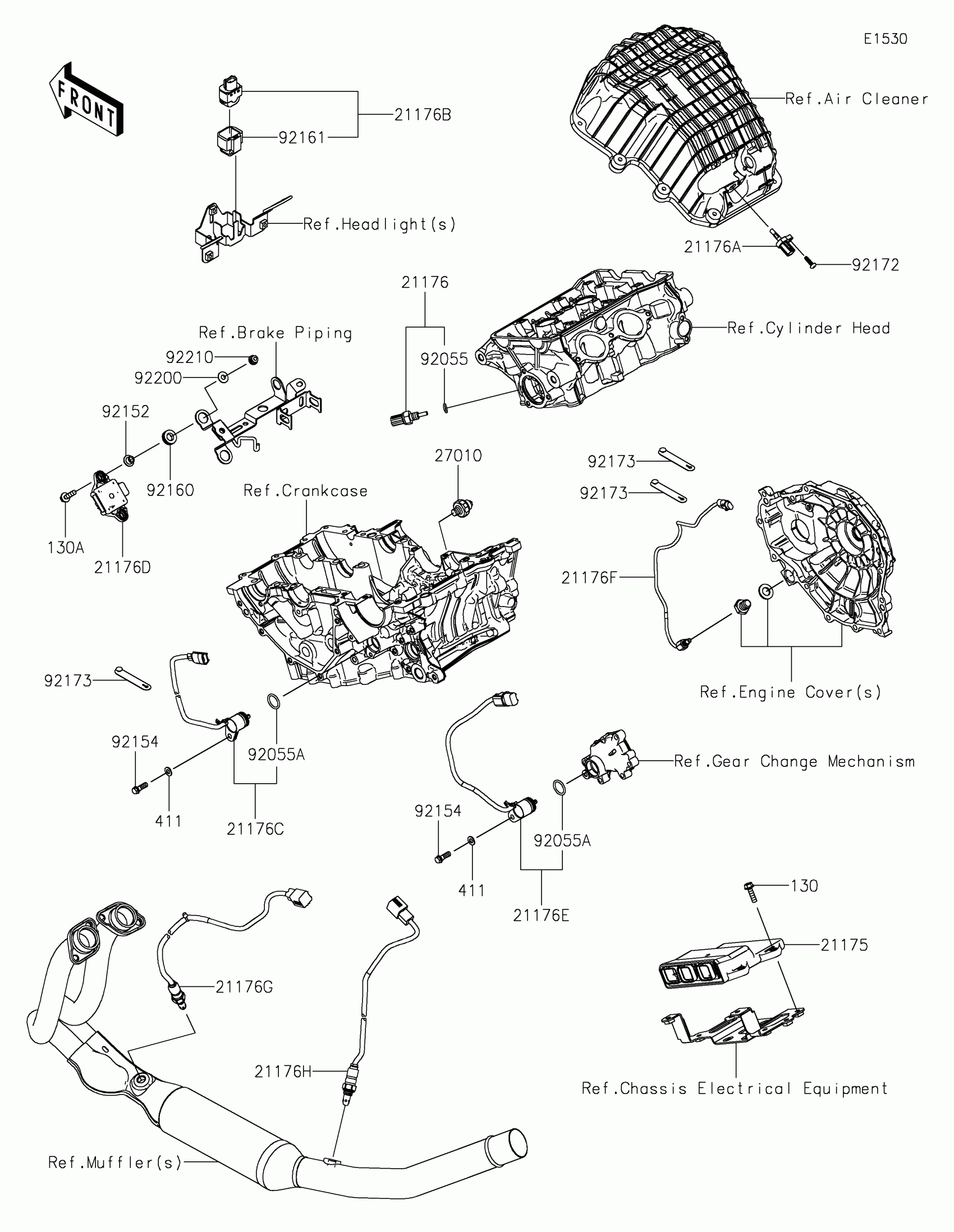

Kawasaki Z7 Hybrid Fuel Injection Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC

21175-1948

$1,631.53

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

21176C

SENSOR,GEAR POSITION

21176-0852

$151.78

21176D

SENSOR,GYRO

21176-1126

$736.46

21176E

SENSOR,GEAR POSITION

21176-1164

$151.78

21176F

SENSOR,OIL TEMP

21176-1173

$74.65

21176G

SENSOR,OXYGEN,FR

21176-1174

$235.01

21176H

SENSOR,OXYGEN,RR

21176-1175

$235.01

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0917

$3.71

92152

COLLAR

92152-3791

$5.73

92154

BOLT

92154-3764

$1.69

92160

DAMPER

92160-1278

$4.39

92161

DAMPER

92161-0951

$14.90

92172

SCREW,TAPPING,5X16

92172-0790

$0.85

92173

CLAMP

92173-2199

$1.48

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

411

WASHER-PLAIN,6MM

411AA0600

$2.92
