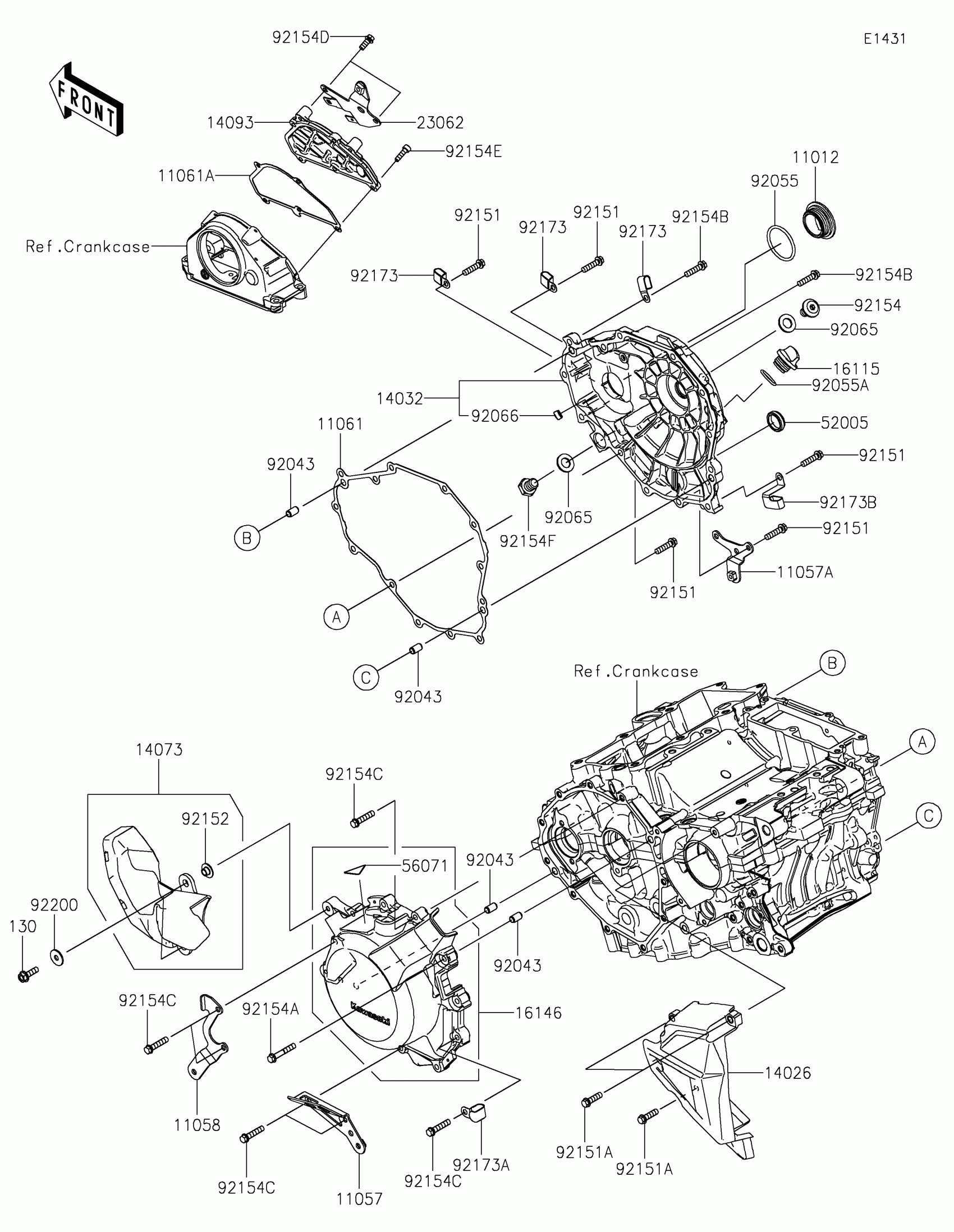

Kawasaki Z7 Hybrid Engine Cover(s) Diagram
#
Description
Price
11012
CAP
11012-1362
$8.79
11057
BRACKET
11057-7958
$8.43
11057A
BRACKET
11057-7959
$3.97
11058
BRACKET
11058-2131
$6.38
11061
GASKET,CLUTCH COVER
11061-1438
$40.78
11061A
GASKET,COVER
11061-1439
$11.54
14026
COVER-CHAIN
14026-0155
$55.99
14032
COVER-CLUTCH
14032-0697
$238.34
14073
DUCT,COVER-GENERATOR
14073-1881
$59.37
14093
COVER,CASE-MOTOR
14093-1284
$56.38
16115
CAP-OIL FILLER
16115-1053
$12.20
16146
COVER-ASSY,GENERATOR
16146-0936
$147.95
23062
BRACKET-COMP
23062-1477
$13.94
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
56071
LABEL-WARNING,HIGH VOLTAGE
56071-1100
$3.07
92043
PIN,6.2X8X14
92043-1263
$0.43
92055
RING-O,39.4X3.1
92055-0734
$1.97
92055A
RING-O,19.8MM
92055-0844
Unavailable
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG
92066-0823
$2.39
92151
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92151A
BOLT,6X22
92151-1936
Unavailable
92152
COLLAR
92152-3787
$6.83
92154
BOLT,SOCKET,10X16
92154-0126
$7.60
92154A
BOLT,FLANGED,6X35
92154-1779
$1.71
92154B
BOLT,FLANGED,6X25
92154-2734
$2.17
92154C
BOLT,FLANGED,6X28
92154-2788
$1.42
92154D
BOLT,FLANGED,6X14
92154-2838
$0.90
92154E
BOLT,SOCKET,5X18
92154-3981
$2.00
92154F
BOLT,SENSOR
92154-4479
$17.68
92173
CLAMP
92173-1828
$2.95
92173A
CLAMP
92173-2439
$6.03
92173B
CLAMP
92173-2668
$5.52
92200
WASHER,6.5X20X1.6
92200-0283
$1.40
130
BOLT-FLANGED,6X20
130BA0620
$1.74
