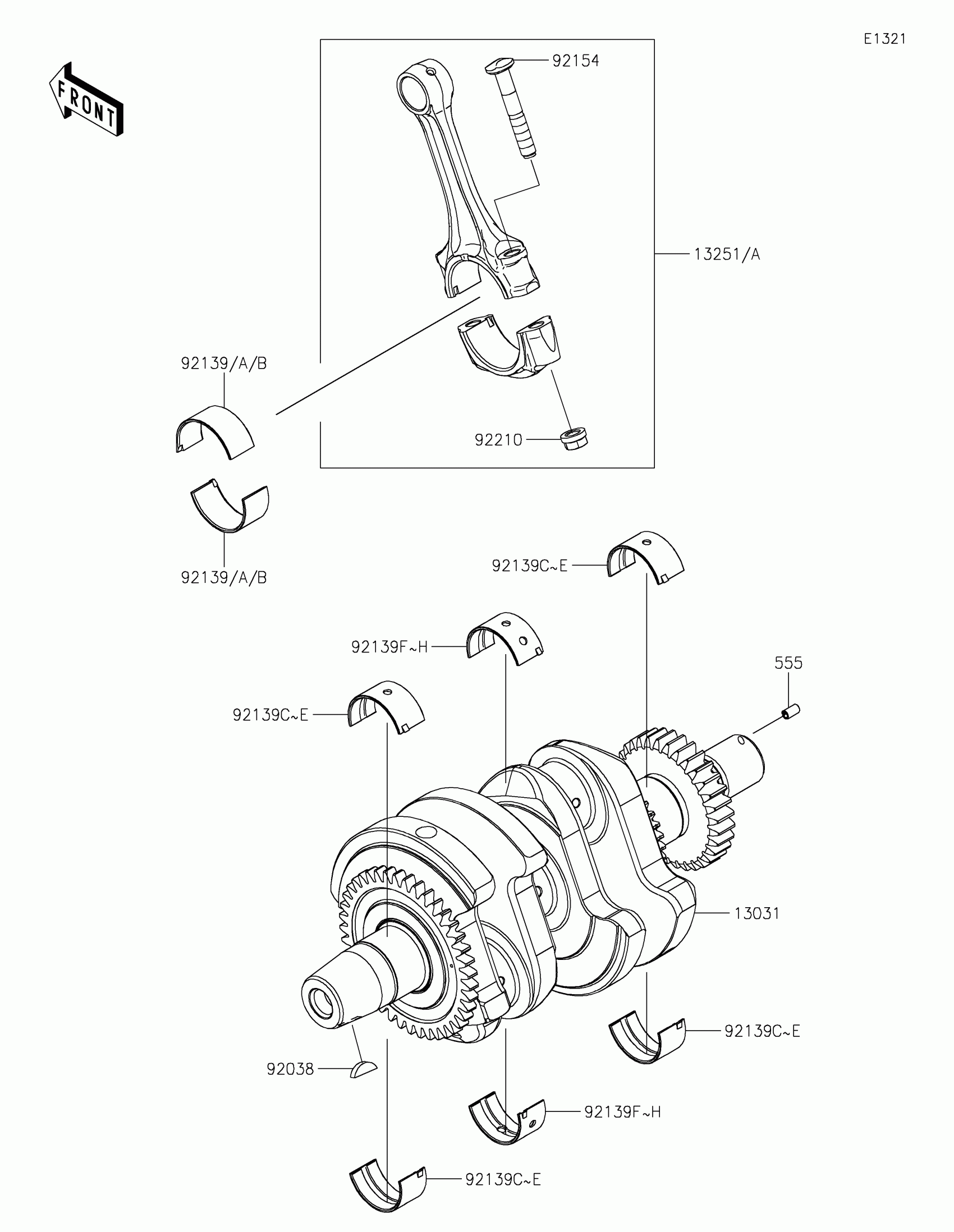

Kawasaki Z7 Hybrid Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-1526

$807.25

13251

ROD-ASSY-CONNECTING,G

13251-0757-GG

$163.54

13251A

ROD-ASSY-CONNECTING,H

13251-0757-HH

Unavailable

92038

KEY,WOODRUFF

92038-001

$4.96

92139

BUSHING,CONNECTING ROD,BLUE

92139-1219

Unavailable

92139A

BUSHING,CONNECTING ROD,BLACK

92139-1220

$19.74

92139B

BUSHING,CONNECTING ROD,BROWN

92139-1221

Unavailable

92139C

BUSHING,CRANK #1,BLUE

92139-1222

Unavailable

92139D

BUSHING,CRANK #1,BLACK

92139-1223

$11.17

92139E

BUSHING,CRANK #1,BROWN

92139-1224

Unavailable

92139F

BUSHING,CRANK #2,BLUE

92139-1225

Unavailable

92139G

BUSHING,CRANK #2,BLACK

92139-1226

$19.74

92139H

BUSHING,CRANK #2,BROWN

92139-1227

Unavailable

92154

BOLT,7MM

92154-7075

$2.78

92210

NUT,CONNECTING ROD,7MM

92210-0384

$6.75

555

PIN-SPRING,4X8

555A0408

$3.92
