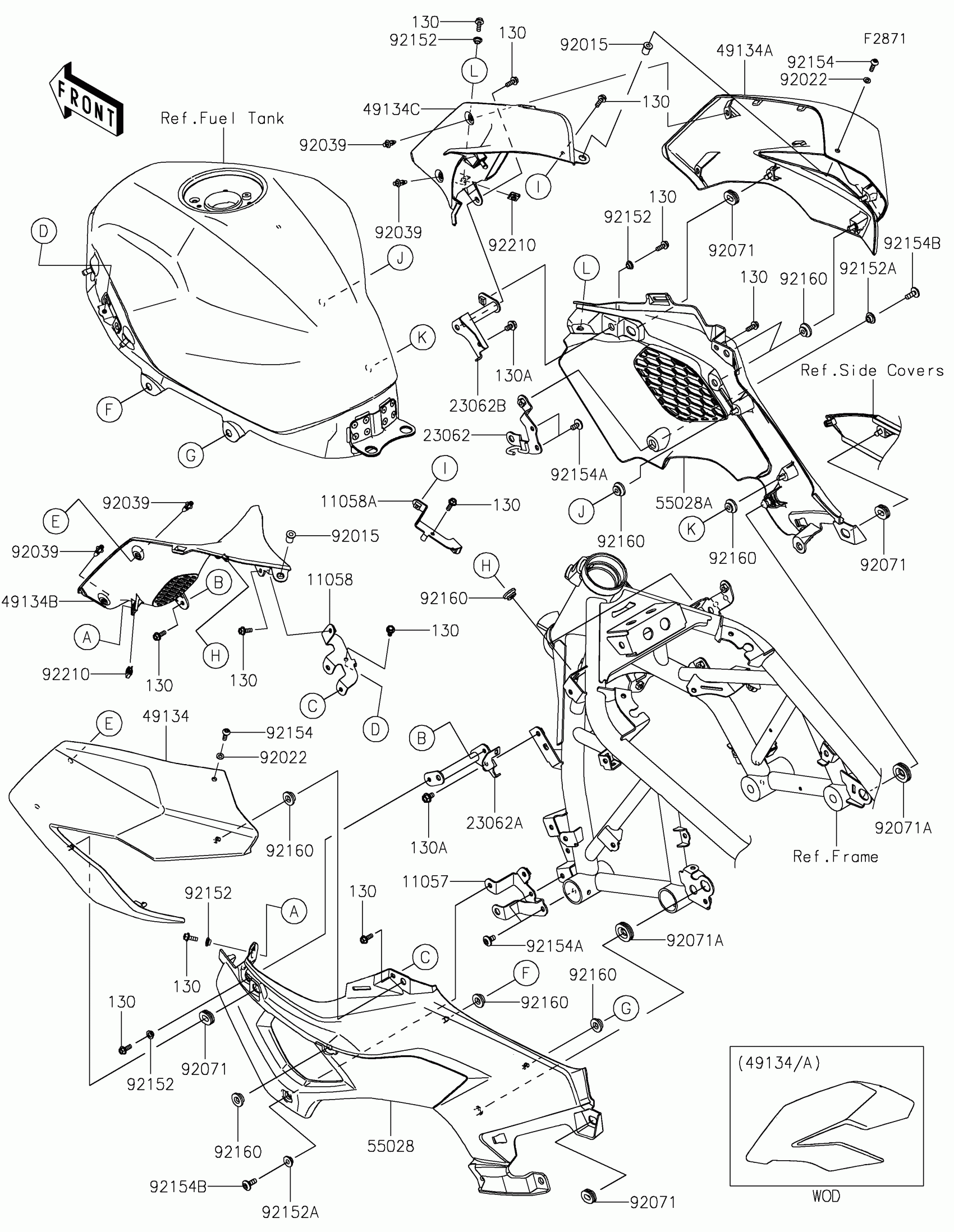

Kawasaki Z7 Hybrid Cowling(Center) Diagram
#
Description
Price
11057
BRACKET,SIDE COWL.,LH
11057-7955
$11.08
11058
BRACKET,SIDE COWL.,LH,UPP
11058-1048
$7.28
11058A
BRACKET,SIDE COWL.,RH,UPP
11058-1049
$10.67
23062
BRACKET-COMP,SIDE COWL.,RH,LWR
23062-1469
$13.42
23062A
BRACKET-COMP,SIDE COWL.,LH,CNT
23062-1471
$15.33
23062B
BRACKET-COMP,SIDE COWL.,RH,CNT
23062-1472
$14.05
49134
SHROUD,OUTER,LH,M.B.SILVER
49134-0026-63S
$239.05
49134A
SHROUD,OUTER,RH,M.B.SILVER
49134-0027-63S
$246.08
49134B
SHROUD,INNER,LH
49134-0028
$59.87
49134C
SHROUD,INNER,RH
49134-0029
$64.53
55028
COWLING,SIDE,LH
55028-0870
$115.67
55028A
COWLING,SIDE,RH
55028-0871
$116.23
92015
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,5.1X10X1.0
92022-1977
$3.65
92039
RIVET
92039-0709
$2.67
92071
GROMMET,11X23X7
92071-0762
$1.41
92071A
GROMMET
92071-1043
$5.46
92152
COLLAR,6X8X4.5
92152-2395
$1.17
92152A
COLLAR,6.5X10X5.9
92152-2486
$3.44
92154
BOLT,SOCKET,5X16
92154-4294
$2.75
92154A
BOLT,SOCKET,6X12
92154-4310
$1.53
92154B
BOLT,SOCKET,6X16
92154-7026
$5.53
92160
DAMPER
92160-1613
$3.74
92210
NUT
92210-0571
$3.52
130
BOLT-FLANGED,5X14
130BA0514
$2.06
130A
BOLT-FLANGED,6X10
130BA0610
$1.20
