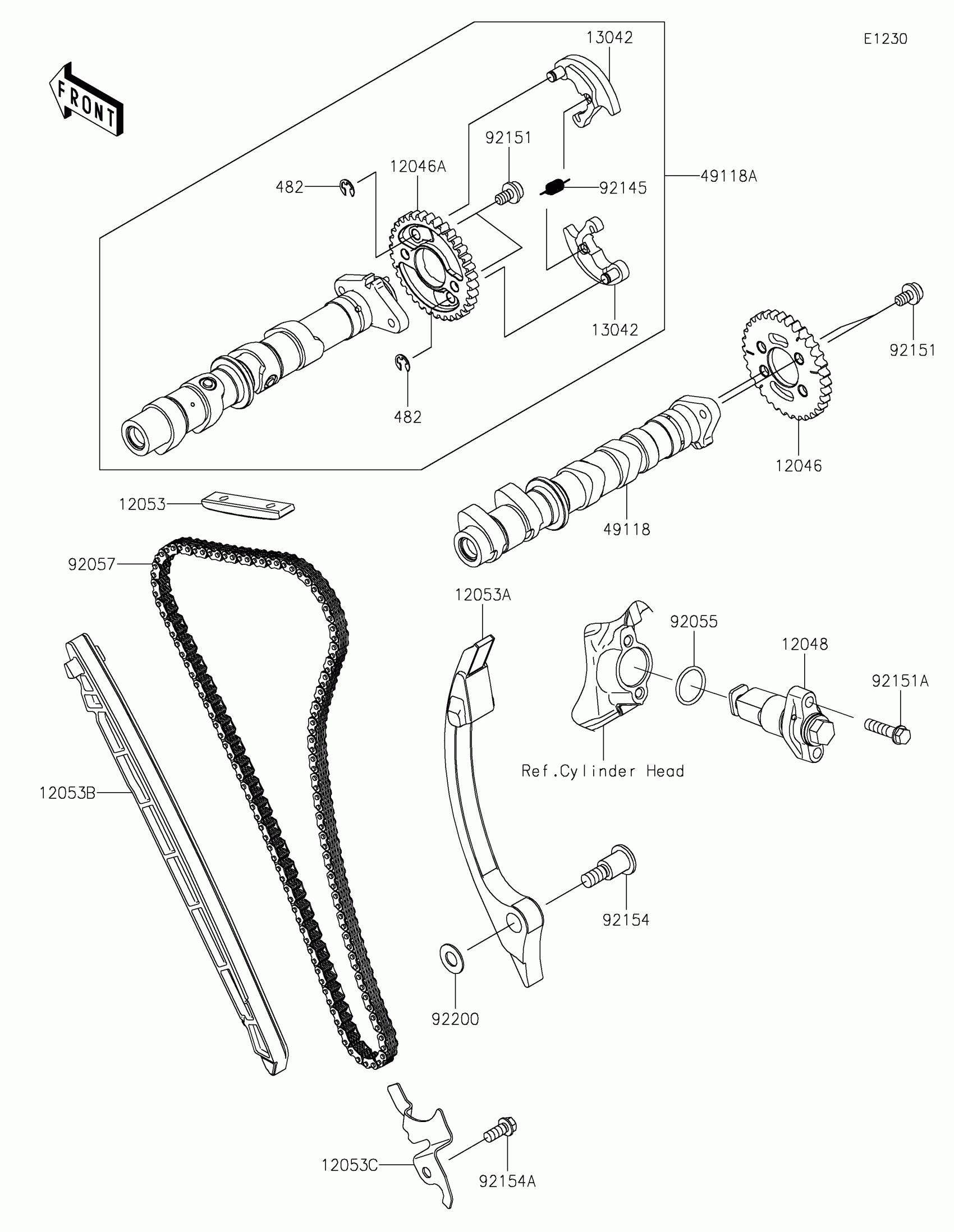

Kawasaki Z7 Hybrid Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,34T

12046-0599

$41.34

12046A

SPROCKET,34T

12046-0635

$80.94

12048

TENSIONER-ASSY

12048-0132

$106.78

12053

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053A

GUIDE-CHAIN,RR

12053-0244

$65.39

12053B

GUIDE-CHAIN,FR

12053-0323

$35.07

12053C

GUIDE-CHAIN,LWR

12053-0324

$3.19

13042

WEIGHT

13042-0005

$37.85

49118

CAMSHAFT-COMP,INTAKE

49118-1272

$296.52

49118A

CAMSHAFT-COMP,EXHAUST

49118-1293

$615.15

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,92RH2015 126M

92057-0602

$99.05

92145

SPRING

92145-0390

$3.35

92151

BOLT,SOCKET,6X10

92151-1829

$2.80

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92154

BOLT,SOCKET,8X29.2

92154-0953

$5.05

92154A

BOLT,FLANGED,6X14

92154-2907

$0.64

92200

WASHER,9X18X1

92200-1954

$1.69

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41
