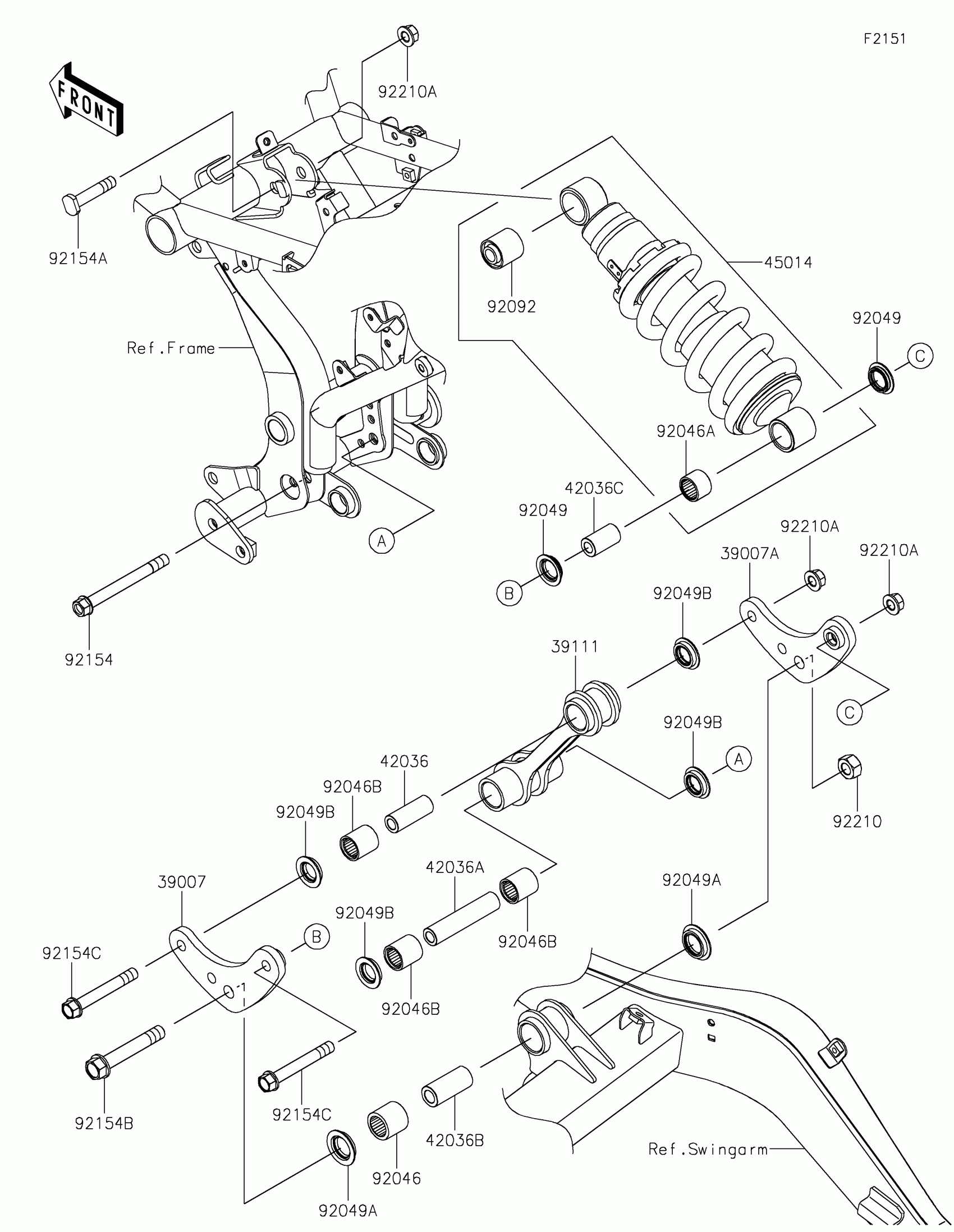

Kawasaki Z650RS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,LH

39007-0401

$73.90

39007A

ARM-SUSP,RH

39007-0402

$73.90

39111

ROD-TIE

39111-0343

$156.71

42036

SLEEVE,10.1X17X44.5

42036-0718

$24.01

42036A

SLEEVE,10.1X17X79.8

42036-0787

$29.82

42036B

SLEEVE,12.1X20X44.5

42036-0788

$24.96

42036C

SLEEVE,10.1X18X32

42036-1344

$11.28

45014

SHOCKABSORBER,P.SILVER

45014-0565-458

$466.98

92046

BEARING-NEEDLE,7E-HVS20X27X25

92046-1236

$19.86

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL

92049-0133

$10.05

92049A

SEAL-OIL,ARM

92049-1109

$9.28

92049B

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-1058

$29.88

92154

BOLT,FLANGED,10X100

92154-1257

$10.24

92154A

BOLT,10X50

92154-2165

$5.88

92154B

BOLT,FLANGED,12X75

92154-2166

$11.30

92154C

BOLT,FLANGED,10X75

92154-2226

$9.23

92210

NUT,LOCK,12MM

92210-0274

$2.61

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
