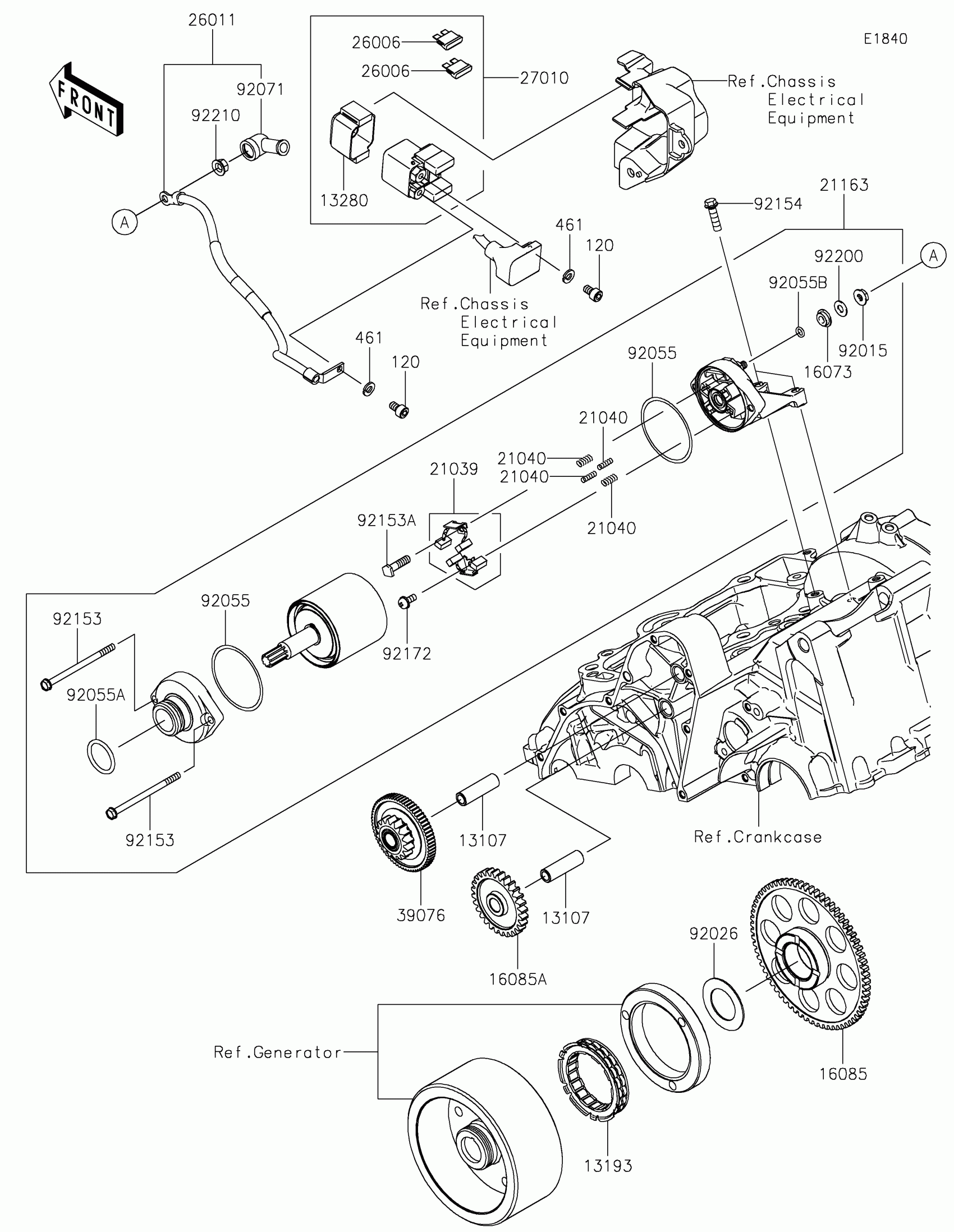

Kawasaki Z650RS Starter Motor Diagram
#
Description
Price
13107
SHAFT,IDLE GEAR
13107-1106
$16.69
13193
CLUTCH-ASSY-ONEWAY
13193-0006
$125.52
13280
HOLDER
13280-0710
$14.49
16073
INSULATOR
16073-0053
$11.93
16085
GEAR,67T
16085-0076
$117.38
16085A
GEAR,IDLE,28T
16085-0148
$104.12
21039
BRUSH,CARBON
21039-0004
$117.72
21040
SPRING-BRUSH
21040-0003
$9.79
21163
STARTER-ELECTRIC
21163-0746
$502.13
26006
FUSE,BLADE,30A,GREEN
26006-1006
$4.96
26011
WIRE-LEAD
26011-0939
$32.25
27010
SWITCH,MAGNETIC
27010-0709
$135.86
39076
LIMITER,16T&66T
39076-0034
$112.03
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92026
SPACER,29.1X47.5X1.2
92026-087
$9.91
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92071
GROMMET
92071-0024
$10.21
92153
BOLT
92153-1850
$11.93
92153A
BOLT
92153-1866
$4.65
92154
BOLT,FLANGED,6X22
92154-0504
$1.94
92172
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92210
NUT,6MM
92210-0188
$2.15
120
BOLT-SOCKET,6X10
120CB0610
$2.49
461
WASHER-SPRING,6MM
461DB0600
$0.65
