2022 Kawasaki Z650RS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

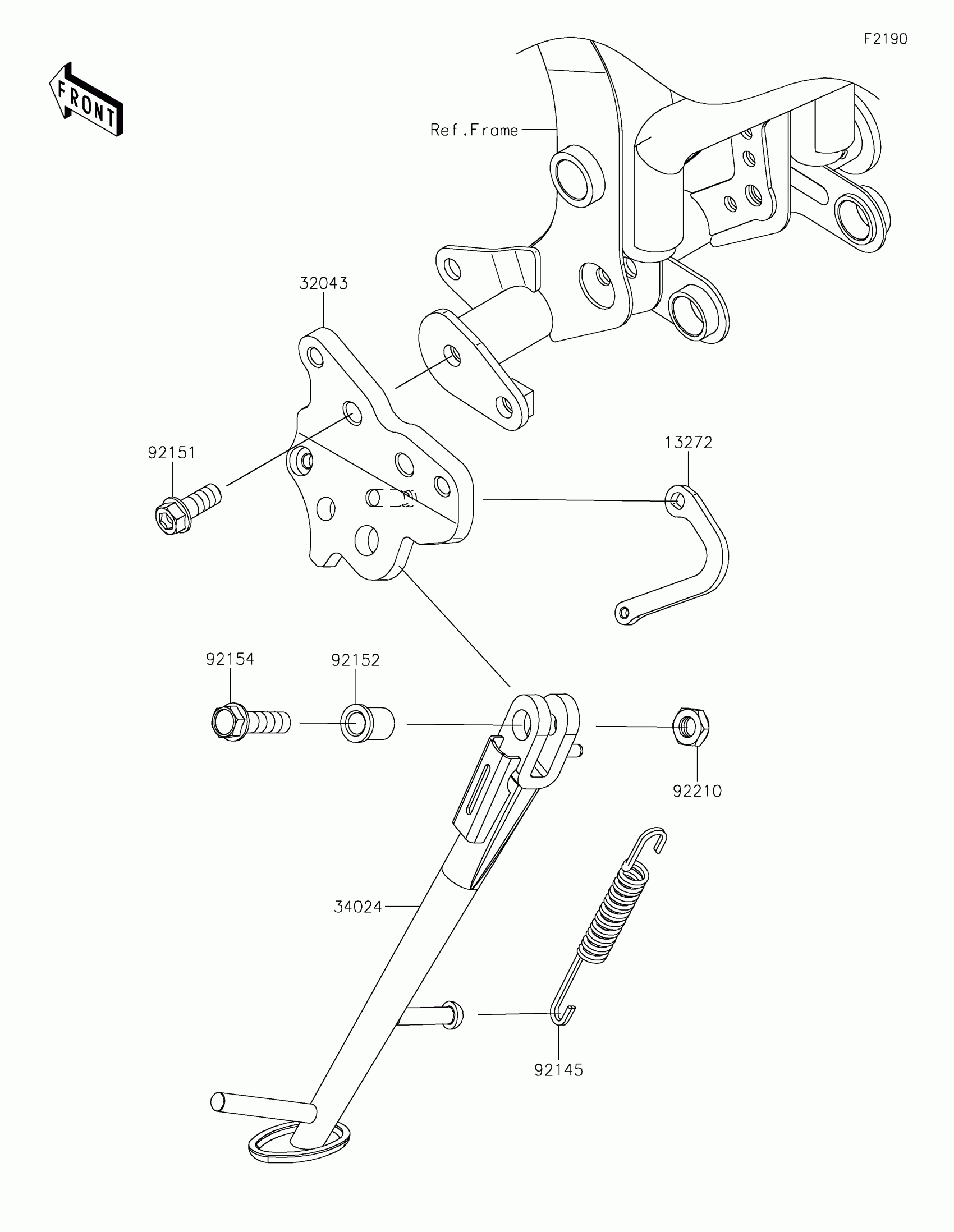

2022 Kawasaki Z650RS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,SPRING

13272-2166

1

$5.34

In stock

32043

BRACKET-STAND

32043-0620

1

$80.17

In stock

34024

STAND-SIDE

34024-0169

1

$94.34

In stock

92145

SPRING,SIDE STAND

92145-1735

1

$14.00

In stock

92151

BOLT,FLANGED,10X25

92151-1802

1

$3.84

In stock

92152

COLLAR,10.2X18X20.1

92152-2299

1
Out of stock

92154

BOLT,FLANGED,10X37

92154-1352

1

$7.92

In stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock
