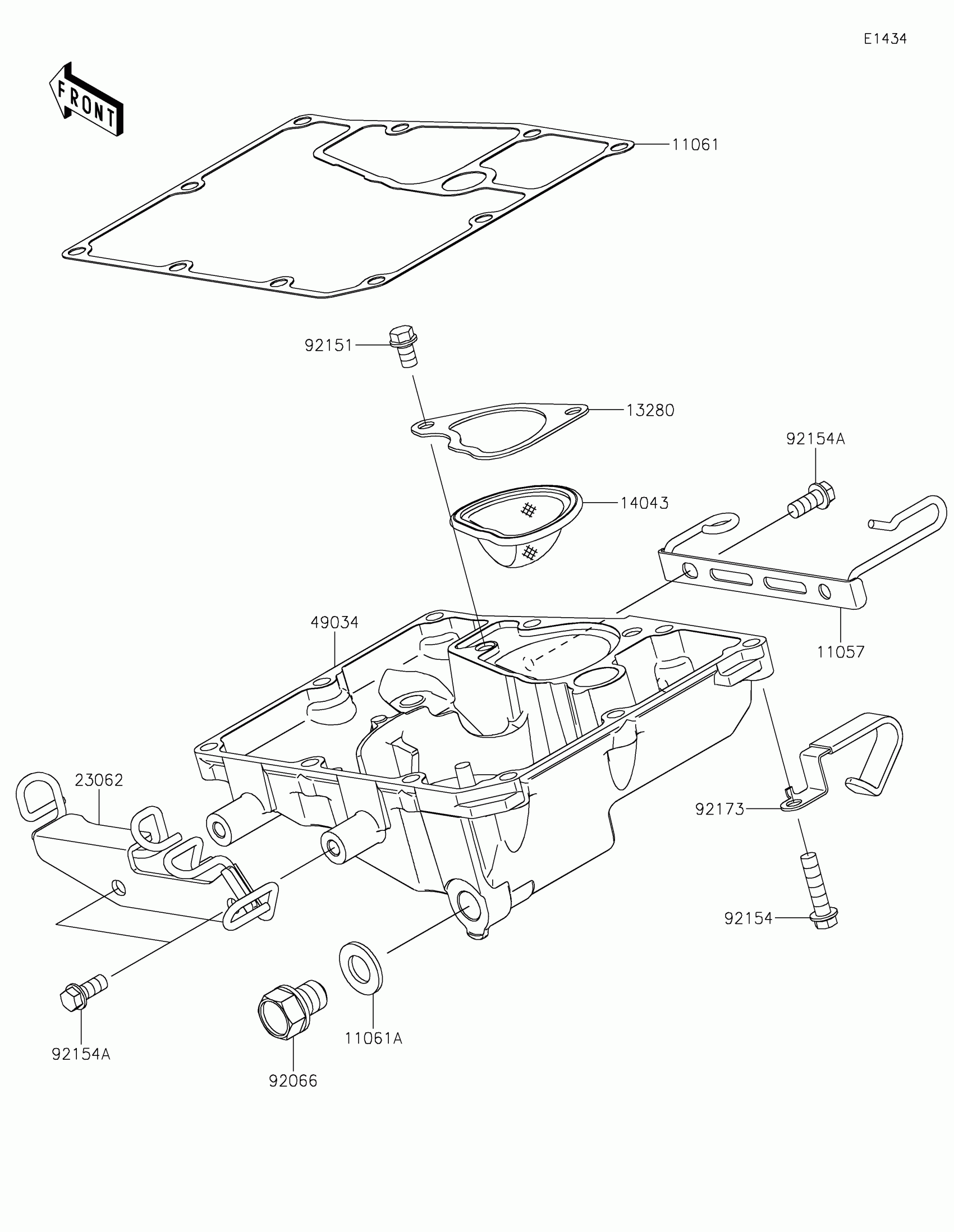

Kawasaki Z650RS Oil Pan Diagram

Description

Price

11057

BRACKET,RH

11057-0047

$7.68

11061

GASKET,OIL PAN

11061-0167

$15.06

11061A

GASKET,12X22X2

11061-0417

$3.18

13280

HOLDER,OIL FILTER

13280-0134

$4.61

14043

FILTER,OIL(SCAVENGE)

14043-0008

$10.88

23062

BRACKET-COMP,LH

23062-1251

$19.02

49034

PAN-OIL

49034-0552

$147.77

92066

PLUG,OIL DRAIN,12X15

92066-0767

$6.89

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

$2.34

92154

BOLT,FLANGED,6X25

92154-0819

$2.32

92154A

BOLT,FLANGED,6X14

92154-1426

$2.00

92173

CLAMP

92173-1693

$3.74
