2022 Kawasaki Z650RS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

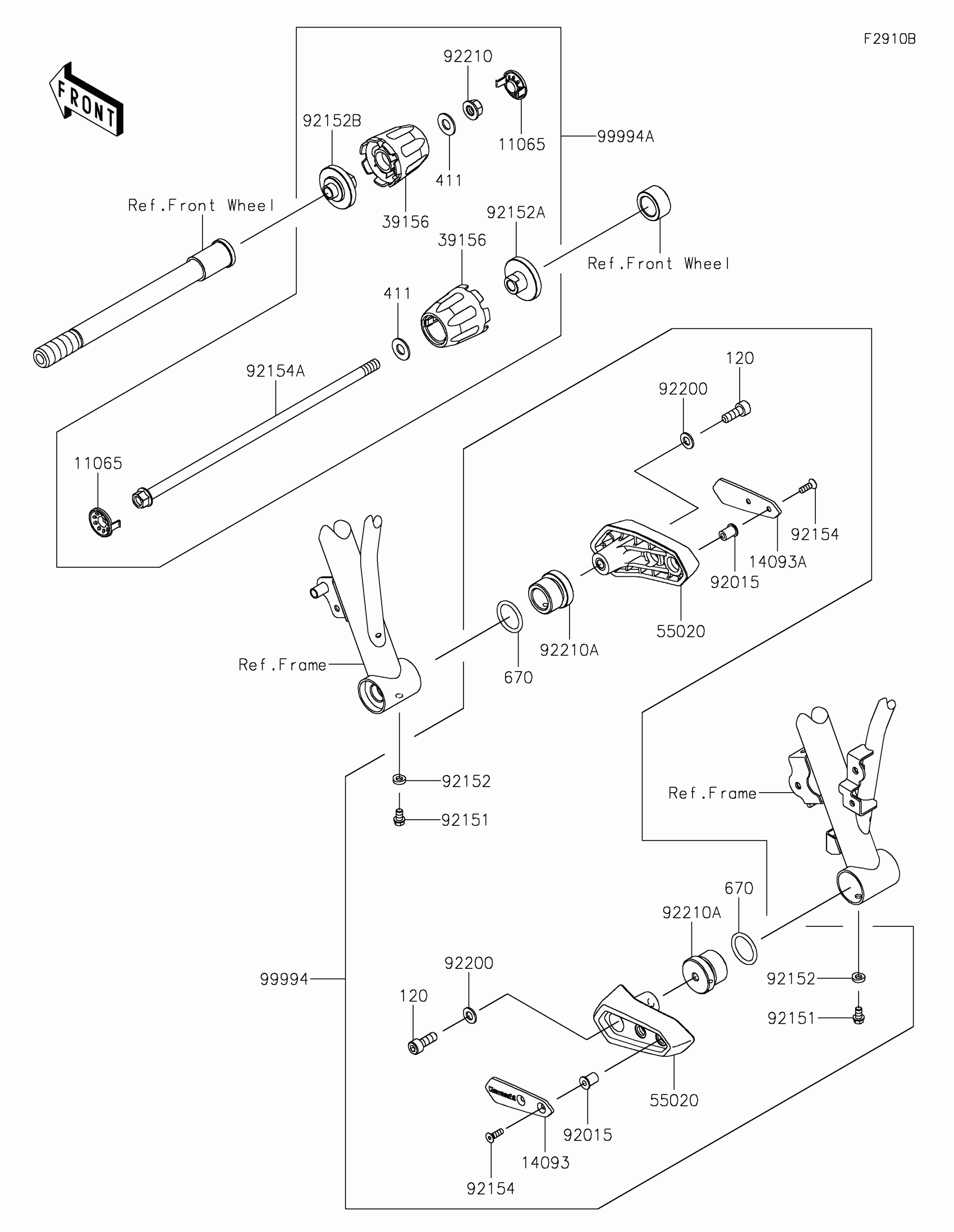

2022 Kawasaki Z650RS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,B.SILVER

11065-1313-54N

1

$7.41

In stock

14093

COVER,SLIDER,LH

14093-0971

1

$60.50

In stock

14093A

COVER,SLIDER,RH

14093-0972

1

$53.50

In stock

39156

PAD,AXLE SLIDER

39156-2212

1

$60.42

In stock

55020

GUARD

55020-1997

1

$145.01

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92151

BOLT,6X10

92151-1277

1

$1.39

In stock

92152

COLLAR,6.3X12

92152-2236

1
Out of stock

92152A

COLLAR,LH

92152-2272

1
Out of stock

92152B

COLLAR,RH

92152-2273

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1014

1

$0.85

In stock

92154A

BOLT,FLANGED,10X310

92154-4229

1

$85.37

In stock

92200

WASHER,8.4X16X1.6

92200-0807

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT

92210-1505

1
Out of stock

99994

FRAME SLIDER

99994-1541

1

$418.52

In stock

99994A

AXLE SLIDER,B.SILVER

99994-1542-54N

1

$169.07

In stock

120

BOLT-SOCKET,8X22

120CA0822

1

$4.31

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

670

O RING,26MM

670B3026

1

$4.06

In stock
