2022 Kawasaki Z650RS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

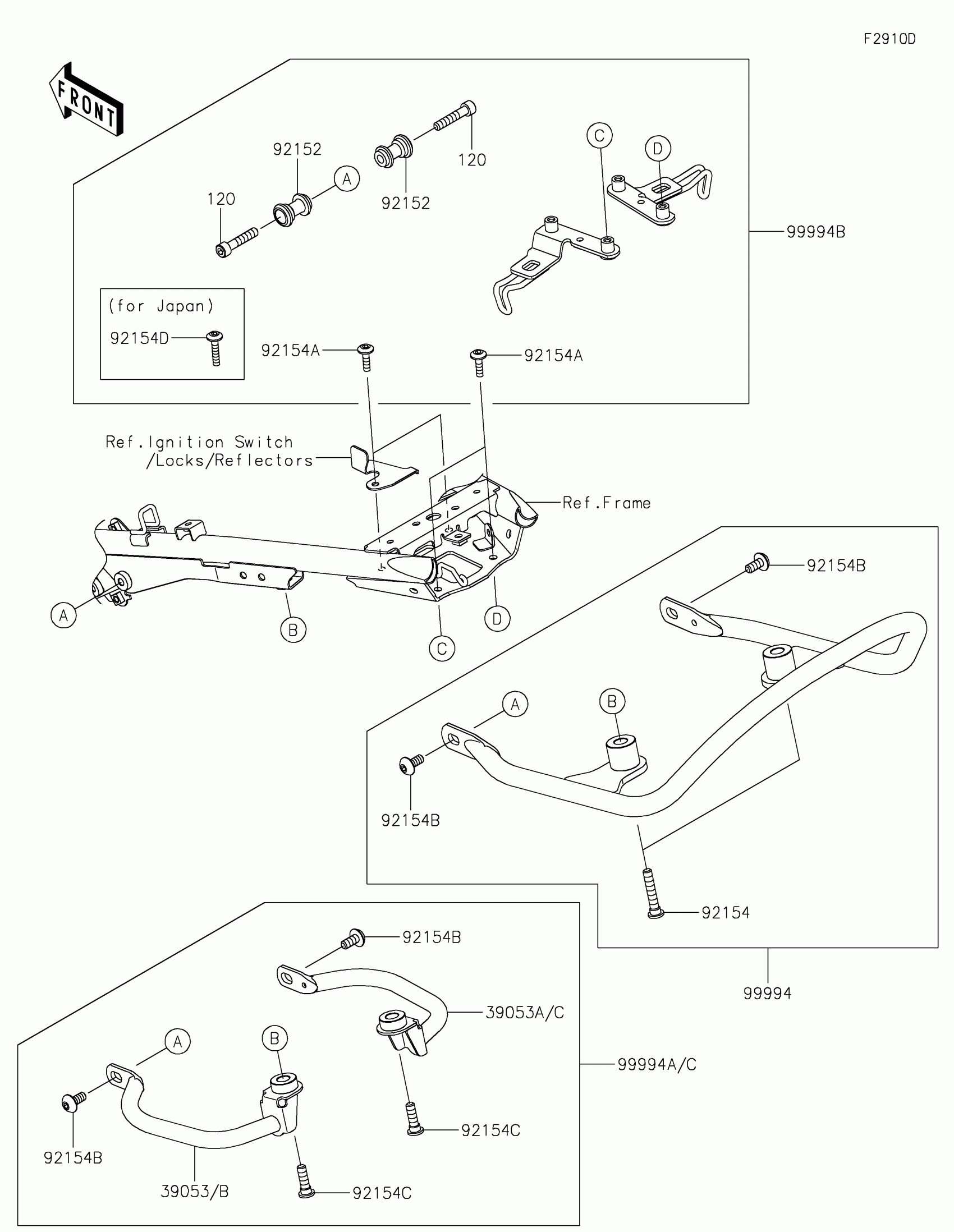

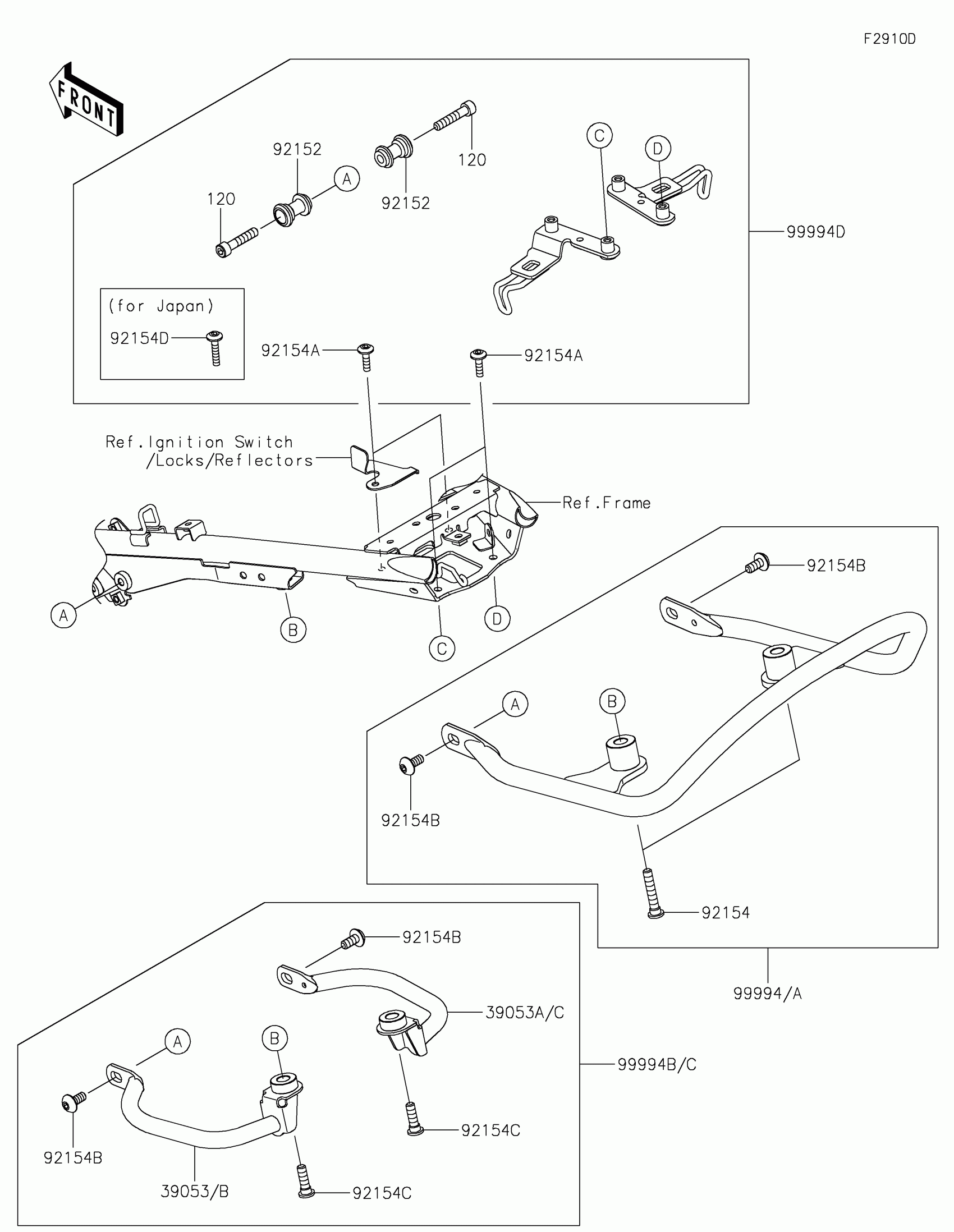

2022 Kawasaki Z650RS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39053

GRIP-SIDE,LH,PLATING

39053-0005

1
Out of stock

39053A

GRIP-SIDE,RH,PLATING

39053-0006

1
Out of stock

39053B

GRIP-SIDE,LH,BLACK

39053-0007

1
Out of stock

39053C

GRIP-SIDE,RH,BLACK

39053-0008

1
Out of stock

92152

COLLAR

92152-2403

1
Out of stock

92154

BOLT,SOCKET,8X40

92154-0544

1
Out of stock

92154A

BOLT,SOCKET,6X22

92154-2234

1
Out of stock

92154B

BOLT,SOCKET,8X18

92154-2239

1
Out of stock

92154C

BOLT,SOCKET,8X28

92154-2334

1
Out of stock

92154D

BOLT,SOCKET,6X30

92154-4326

1
Out of stock

99994

GRAB BAR(BLACK)

99994-1545

1
Out of stock

99994A

SIDE GRIP(PLATING)

99994-1546

1
Out of stock

99994B

HOOK FOR BAGGAGE

99994-1554

1
Out of stock

99994C

SIDE GRIP(BLACK)

99994-1556

1
Out of stock

120

BOLT-SOCKET,8X40

120CC0840

1
Out of stock
← Accessory Accessory →
