Description

Price

11065

CAP,F.S.BLACK

11065-0957-18R

$14.49

33001

ARM-COMP-SWING,F.S.BLACK

33001-0663-18R

$668.04

33032

SHAFT-SWING ARM,20X298

33032-0050

$100.34

33040

ADJUSTER-CHAIN,IN,LH

33040-0085

$27.32

33040A

ADJUSTER-CHAIN,IN,RH

33040-0086

$27.32

33040B

ADJUSTER-CHAIN,OUTER,F.S.BLACK

33040-0087-18R

$19.99

42036

SLEEVE,20.1X28X43.5

42036-0785

$31.89

42036A

SLEEVE,20.1X28X29.5

42036-0786

$28.98

55020

GUARD,CHAIN

55020-2359

$43.64

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92046A

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL

92049-0132

$9.39

92049A

SEAL-OIL

92049-0138

$9.39

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$19.64

92152

COLLAR

92152-2786

$3.86

92153

BOLT,SOCKET,6X14

92153-1361

$2.61

92210

NUT,8MM

92210-0116

$2.26

92210A

NUT,8MM

92210-0117

$2.26

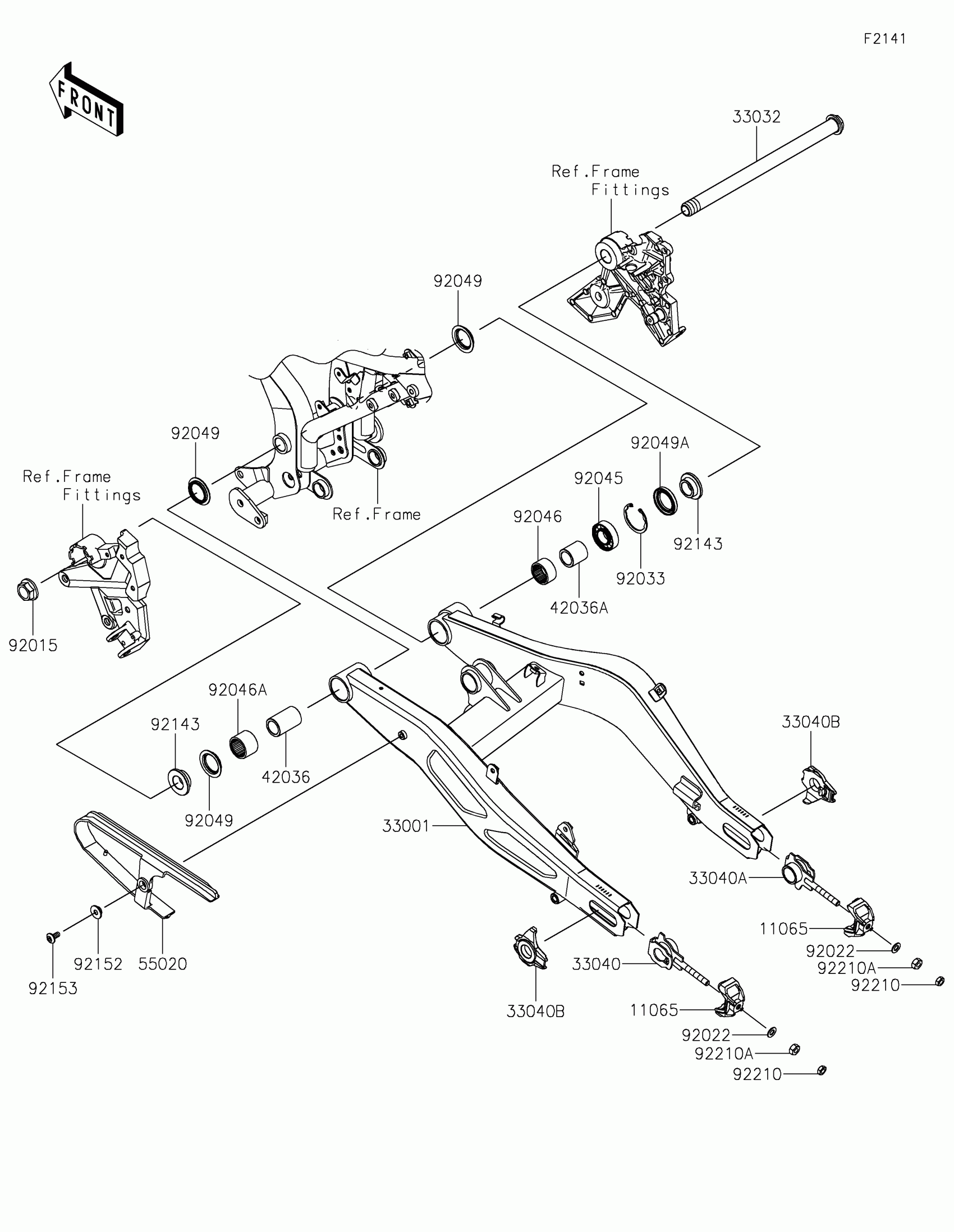

Kawasaki Z650RS ABS Swingarm Diagram

CAP,F.S.BLACK

ARM-COMP-SWING,F.S.BLACK

SHAFT-SWING ARM,20X298

ADJUSTER-CHAIN,IN,LH

ADJUSTER-CHAIN,IN,RH

ADJUSTER-CHAIN,OUTER,F.S.BLACK

SLEEVE,20.1X28X43.5

SLEEVE,20.1X28X29.5

GUARD,CHAIN

NUT,FLANGED,20MM

WASHER,8.5X16X1.2

RING-SNAP,42MM

BEARING-BALL,6004UL11

BEARING-NEEDLE,7E-HVS 28X34X17

BEARING-NEEDLE,BM2824

SEAL-OIL

SEAL-OIL

COLLAR,SWING ARM,RH,L=12.5

COLLAR

BOLT,SOCKET,6X14

NUT,8MM

NUT,8MM
