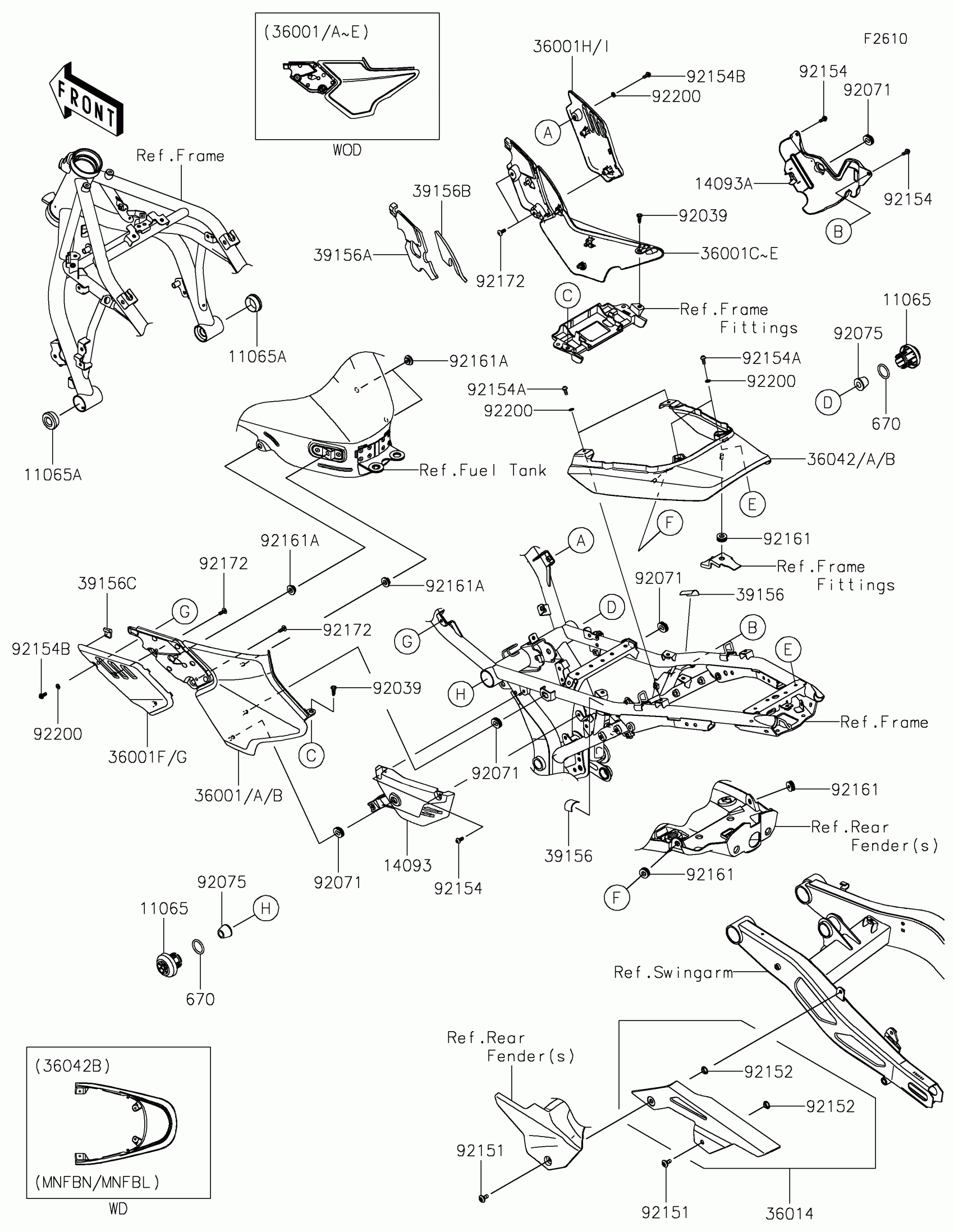

Kawasaki Z650RS ABS Side Covers/Chain Cover Diagram

#

Description
Price

11065

CAP

11065-0956

$3.18

11065A

CAP

11065-1376

$2.30

14093

COVER,MAGNETIC SWITCH,LH

14093-1105

$35.82

14093A

COVER,RESERVOIR,RH

14093-1106

$34.11

36001

COVER-SIDE,LH,RR,C.E.GREEN

36001-0726-63H

$132.70

36001A

COVER-SIDE,LH,RR,M.S.BLACK

36001-0726-660

Unavailable

36001B

COVER-SIDE,LH,RR,EBONY

36001-0726-H8

$132.70

36001C

COVER-SIDE,RH,RR,C.E.GREEN

36001-0727-63H

$133.27

36001D

COVER-SIDE,RH,RR,M.S.BLACK

36001-0727-660

Unavailable

36001E

COVER-SIDE,RH,RR,EBONY

36001-0727-H8

$133.27

36001F

COVER-SIDE,LH,M.M.G.GRAY

36001-0728-53U

$63.67

36001G

COVER-SIDE,LH,B.B.SILVER

36001-0728-63E

$63.67

36001H

COVER-SIDE,RH,M.M.G.GRAY

36001-0729-53U

$63.67

36001I

COVER-SIDE,RH,B.B.SILVER

36001-0729-63E

$63.67

36014

CASE-CHAIN

36014-0044

$17.48

36042

COVER-TAIL,M.S.BLACK

36042-0013-660

Unavailable

36042A

COVER-TAIL,EBONY

36042-0013-H8

$204.69

36042B

COVER-TAIL,C.E.GREEN

36042-5295-63H

$280.44

39156

PAD,30X30X1

39156-2497

$1.16

39156A

PAD,COVER-SIDE,RH,FR

39156-2683

$11.59

39156B

PAD,COVER-SIDE,RH,RR

39156-2684

$5.25

39156C

PAD,23X13X5

39156-2689

$0.68

92039

RIVET

92039-0709

$2.67

92071

GROMMET,11X23X7

92071-0762

$1.41

92075

DAMPER,HANDLE HOLDER

92075-039

$4.69

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92154B

BOLT,SOCKET,5X12

92154-4289

$0.95

92161

DAMPER

92161-0588

$3.94

92161A

DAMPER,6X20X7.5

92161-1937

$1.94

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92200

WASHER,5.2X10X1

92200-2286

$0.39

670

O RING,25MM

670B3025

$1.22
