Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11065

CAP

11065-0962

$2.02

16160

BODY,THERMOSTAT

16160-0830

$46.93

39062

HOSE-COOLING,RADI.-RESERVOIR

39062-0745

$10.17

39062A

HOSE-COOLING,BREATHER

39062-0746

$7.82

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-0747

$11.44

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-0748

$12.20

43093

RESERVOIR-ASSY-TANK

43093-0003

$65.84

49054

THERMOSTAT

49054-0001

$30.76

92055

RING-O,46.7X2.4

92055-0992

$6.32

92150

BOLT,6X14

92150-1340

$5.07

92154

BOLT,FLANGED,6X20

92154-1778

$2.26

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,10.5X8X0.7

92171-1992

$6.22

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1567

$3.54

92173B

CLAMP

92173-1688

$3.86

92173C

CLAMP

92173-2425

$1.36

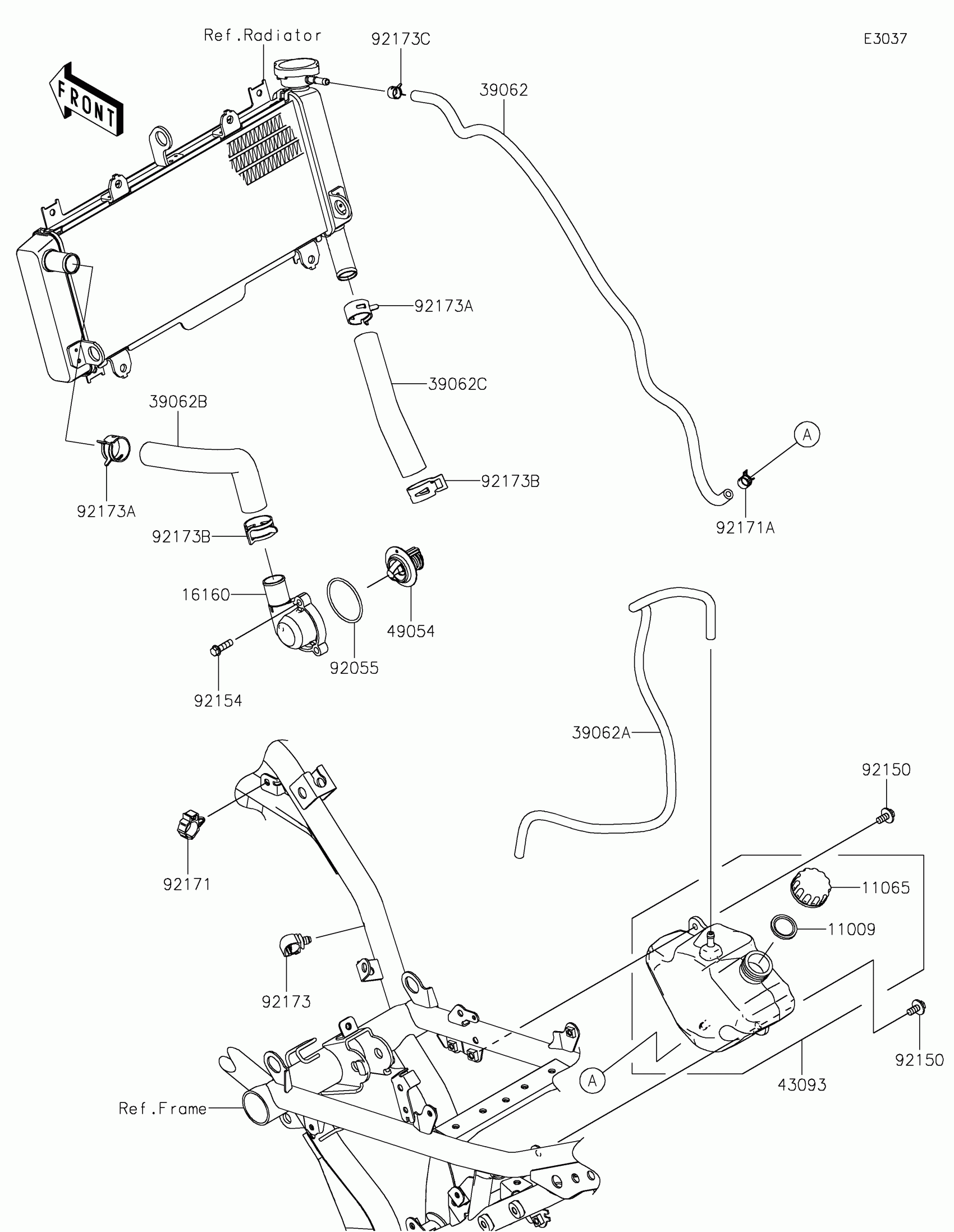

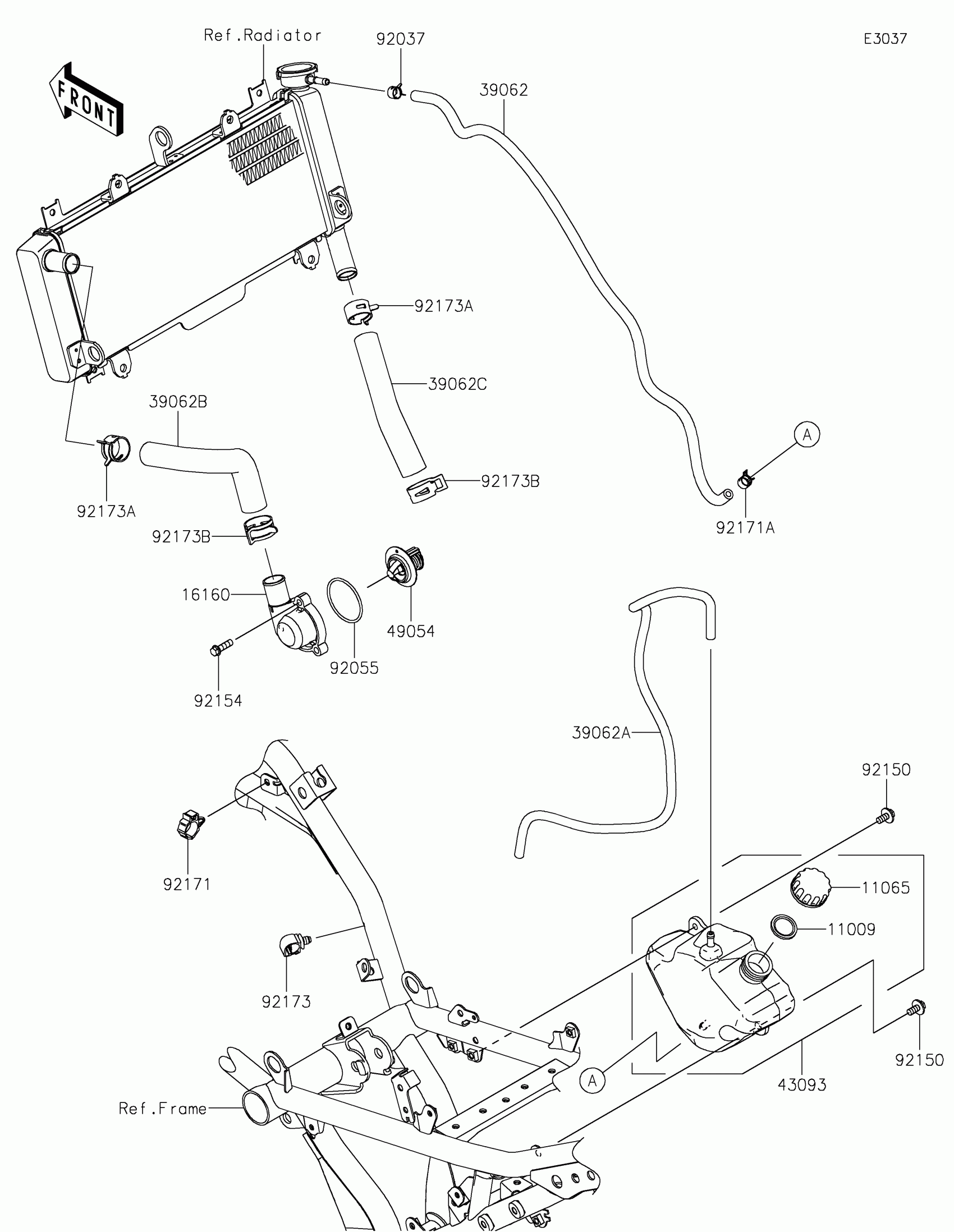

Kawasaki Z650 Water Pipe Diagram

GASKET,RESERVOIR TANK CAP

CAP

BODY,THERMOSTAT

HOSE-COOLING,RADI.-RESERVOIR

HOSE-COOLING,BREATHER

HOSE-COOLING,HEAD-RADIATOR

HOSE-COOLING,RADIATOR-PUMP

RESERVOIR-ASSY-TANK

THERMOSTAT

RING-O,46.7X2.4

BOLT,6X14

BOLT,FLANGED,6X20

CLAMP,BRAKE HOSE

CLAMP,10.5X8X0.7

CLAMP,12MM DIA.

CLAMP

CLAMP

CLAMP
