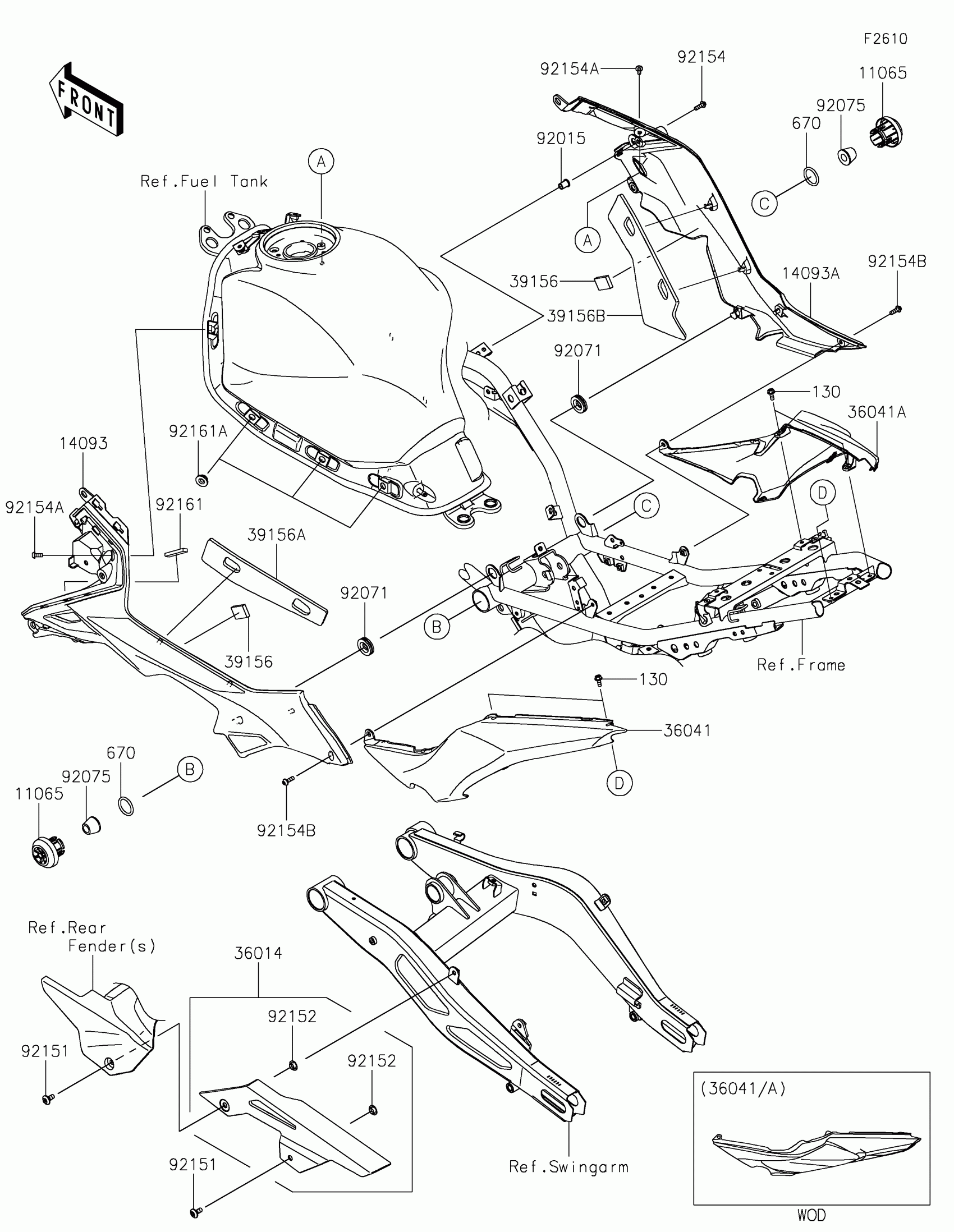

Kawasaki Z650 Side Covers/Chain Cover Diagram

Description

Price

11065

CAP

11065-0956

$2.58

130

BOLT-FLANGED,5X12

130BA0512

$1.55

14093

COVER,KNEE GRIP,LH

14093-0613

$59.28

14093A

COVER,KNEE GRIP,RH

14093-0614

$59.28

36014

CASE-CHAIN

36014-0044

$13.19

36041

COVER-TAIL,LH,P.S.GRAY

36041-0033-36S

$77.70

36041D

COVER-TAIL,LH,M.F.S.BLACK

36041-0033-739

$77.70

36041E

COVER-TAIL,RH,P.S.GRAY

36041-0034-36S

$77.70

36041I

COVER-TAIL,RH,M.F.S.BLACK

36041-0034-739

$77.70

39156

PAD,20X30X6

39156-1751

$1.17

670

O RING,25MM

670B3025

$1.10

92015

NUT,WELL,5MM

92015-1757

$5.58

92071

GROMMET

92071-1043

$3.91

92075

DAMPER,HANDLE HOLDER

92075-039

$3.57

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X12

92154-1421

$0.81

92154B

BOLT,SOCKET,5X16

92154-1701

$0.95

92161

DAMPER,TANK COVER

92161-0804

$1.71

92161A

DAMPER,6X20X7.5

92161-1937

$1.32
