2019 Kawasaki Z650 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

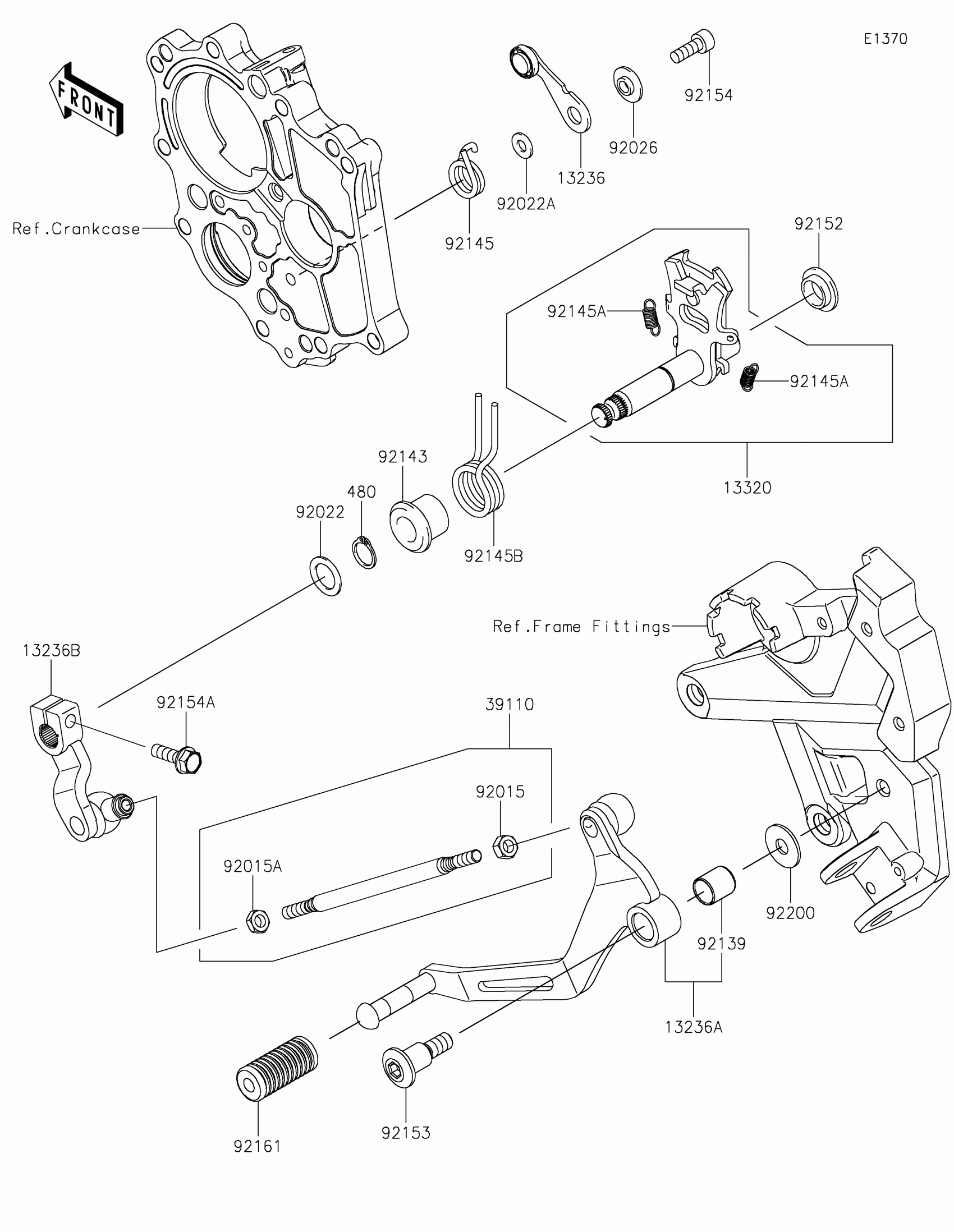

2019 Kawasaki Z650 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,POSITION

13236-0170

1
Out of stock

13236A

LEVER-COMP,CHANGE PEDAL

13236-0778

1
Out of stock

13236B

LEVER-COMP,ENGINE SIDE

13236-0779

1
Out of stock

13320

LEVER-ASSY,CHANGE SHAFT

13320-0032

1
Out of stock

39110

ROD-ASSY-TIE

39110-1124

1
Out of stock

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock

92015

NUT,6MM

92015-1443

1
Out of stock

92015A

NUT,LEFT HANDED,6MM

92015-1444

1
Out of stock

92022

WASHER,13.3X20X1

92022-1496

1
Out of stock

92022A

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92139

BUSHING

92139-0023

1
Out of stock

92143

COLLAR,RETURN SPRING

92143-1498

1
Out of stock

92145

SPRING,POSITION

92145-0304

1
Out of stock

92145A

SPRING,5.5X0.7X18

92145-0703

1
Out of stock

92145B

SPRING,CHANGE SHAFT RETURN

92145-1774

1
Out of stock

92152

COLLAR

92152-1075

1
Out of stock

92153

BOLT,SOCKET,8X16.7

92153-0446

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock

92154A

BOLT,FLANGED,6X20

92154-2595

1
Out of stock

92161

DAMPER,CHANGE PEDAL

92161-1300

1
Out of stock

92200

WASHER,8.0X22.0X1.5

92200-0174

1
Out of stock
