Description

Price

32046

BRACKET-SEAT

32046-0394

$14.11

53003

LEATHER,FR SEAT,BLACK

53003-0425-MA

$95.11

53003A

LEATHER,RR SEAT,BLACK

53003-0426-MA

$81.50

53066

SEAT-ASSY,FR,BLACK

53066-0522-MA

$207.22

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0571-12Y

$174.26

92075

DAMPER

92075-1880

$1.63

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.5X10X11.6

92152-2326

$3.44

92161

DAMPER,SEAT

92161-0930

$7.43

92161A

DAMPER,FR SEAT,FR

92161-0954

$7.43

92161B

DAMPER

92161-1084

$2.67

92161C

DAMPER,SEAT BRACKET,FR

92161-1865

$2.70

92161D

DAMPER,10X20X8

92161-1898

$4.25

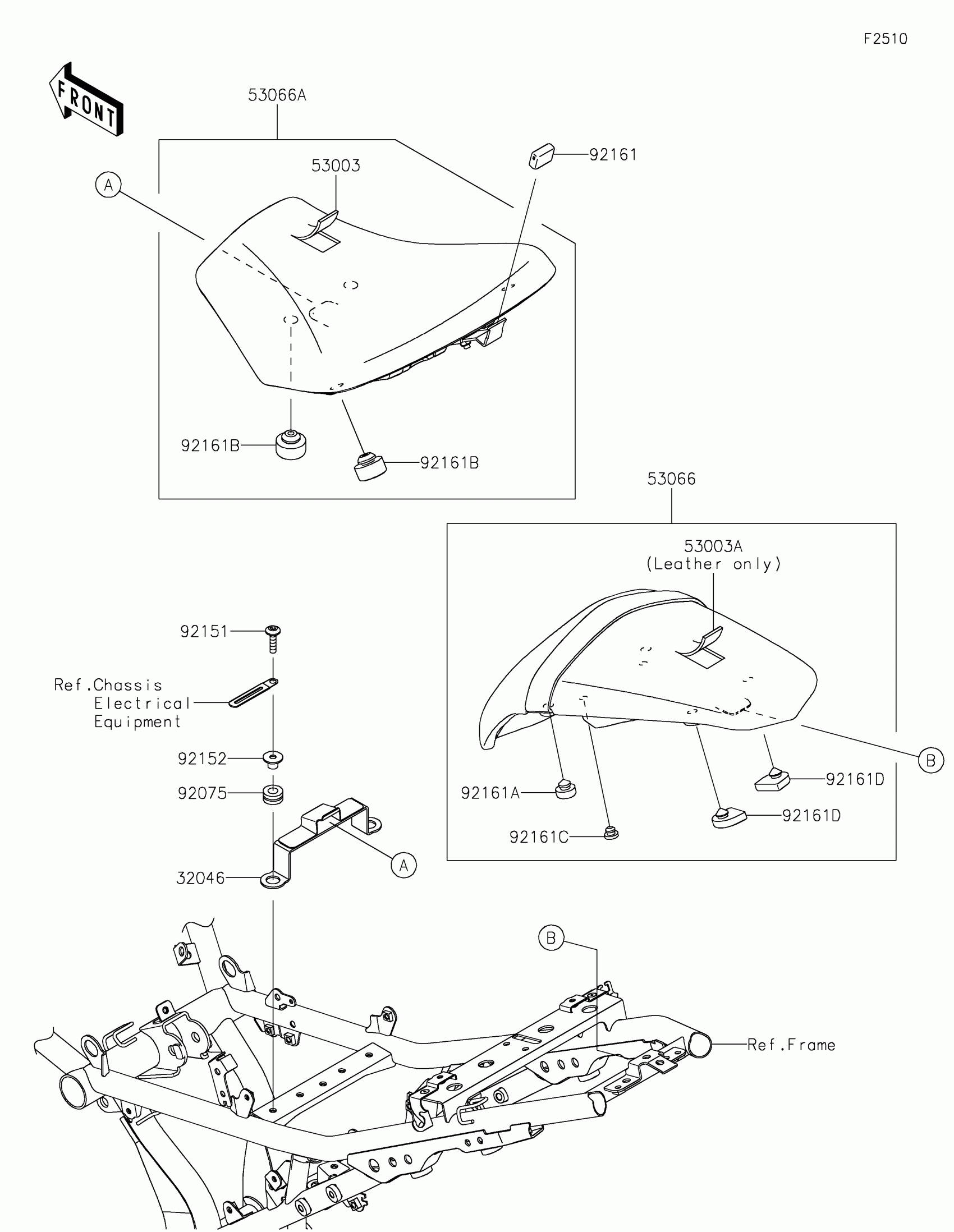

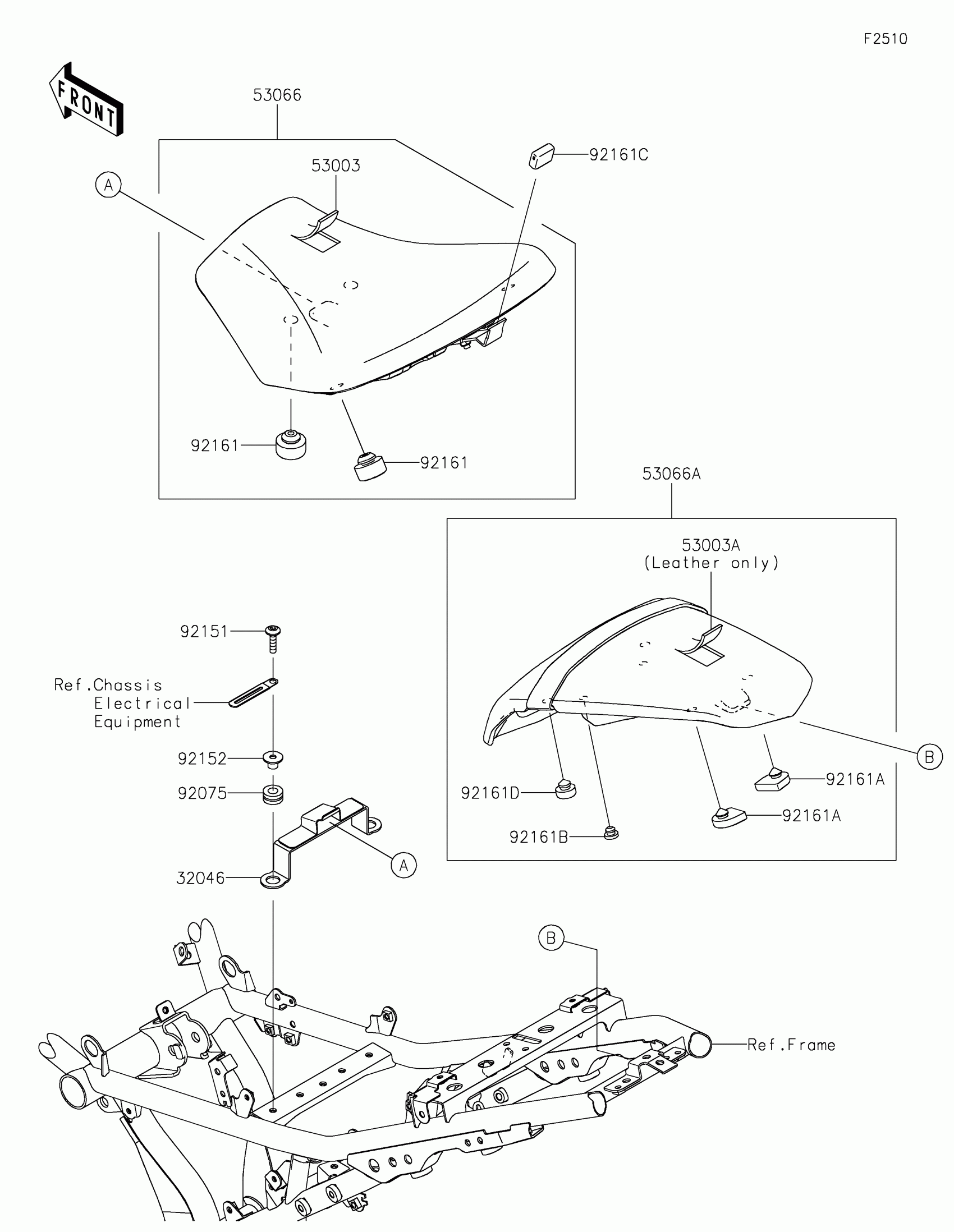

Kawasaki Z650 Seat Diagram

BRACKET-SEAT

LEATHER,FR SEAT,BLACK

LEATHER,RR SEAT,BLACK

SEAT-ASSY,FR,BLACK

SEAT-ASSY,RR,BLACK+BLK

DAMPER

BOLT,SOCKET,6X25

COLLAR,6.5X10X11.6

DAMPER,SEAT

DAMPER,FR SEAT,FR

DAMPER

DAMPER,SEAT BRACKET,FR

DAMPER,10X20X8
