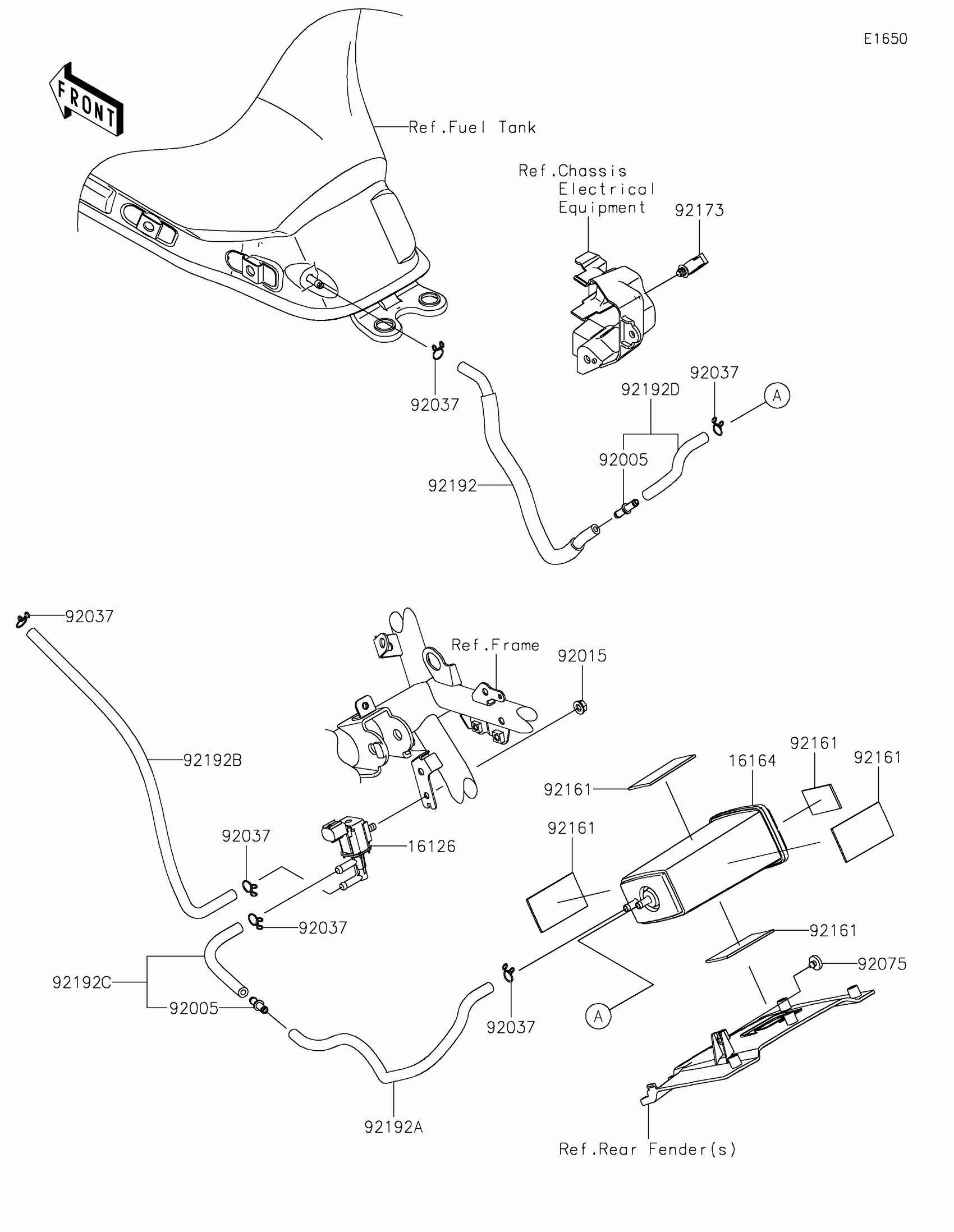

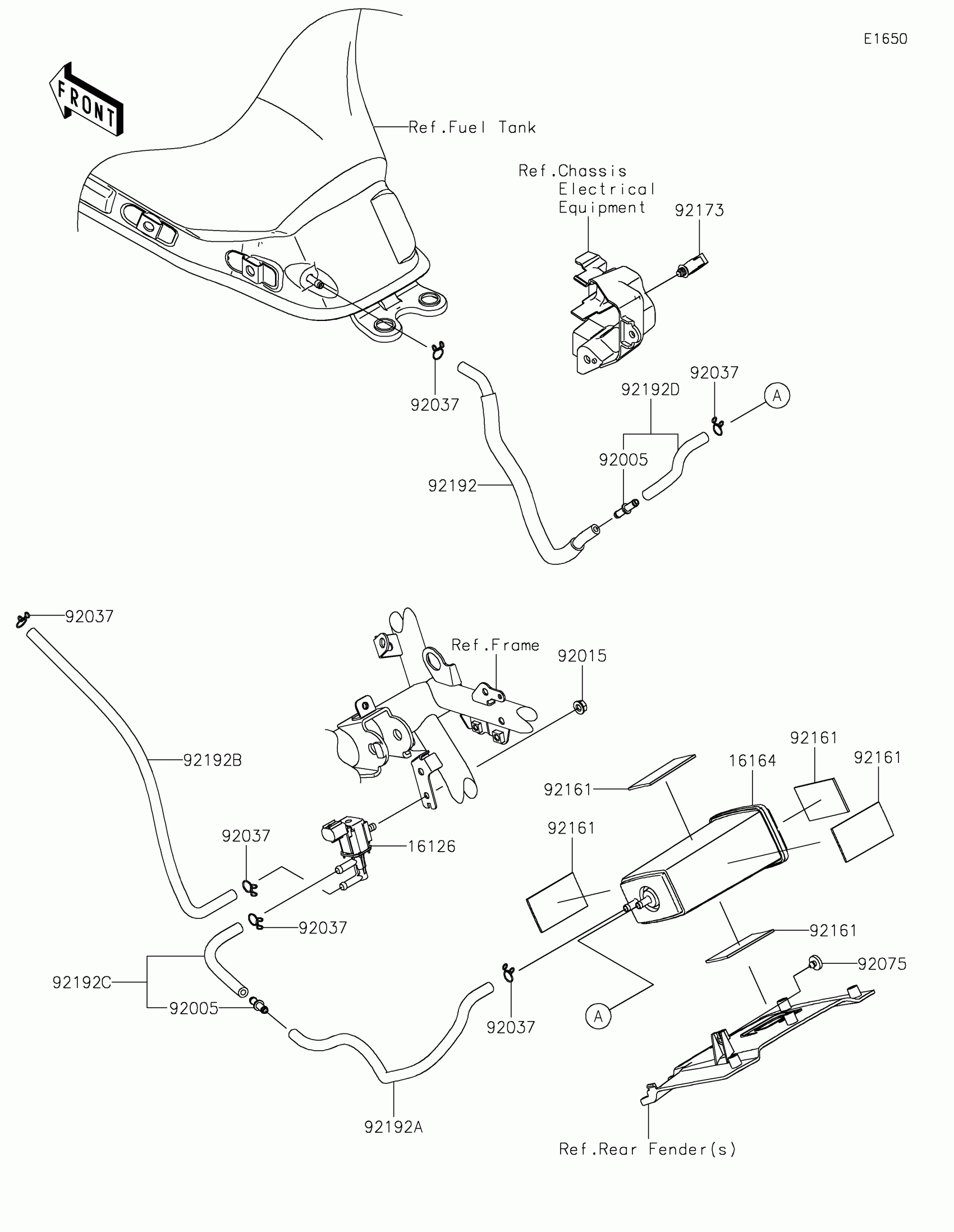

Kawasaki Z650 Fuel Evaporative System(CA) Diagram

Description

Price

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92075

DAMPER,BOOST SENSOR

92075-2113

$1.15

92161

DAMPER

92161-1883

$1.42

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92192

TUBE,TANK-FITTING

92192-1659

$55.60

92192A

TUBE,CANISTER-FITTING

92192-1660

$46.66

92192B

TUBE,VALVE-THROTTLE BODY

92192-1661

$46.66

92192C

TUBE,VALVE-FITTING

92192-1700

$28.27

92192D

TUBE,CANISTER-FITTING

92192-1701

$41.06
