2019 Kawasaki Z650 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

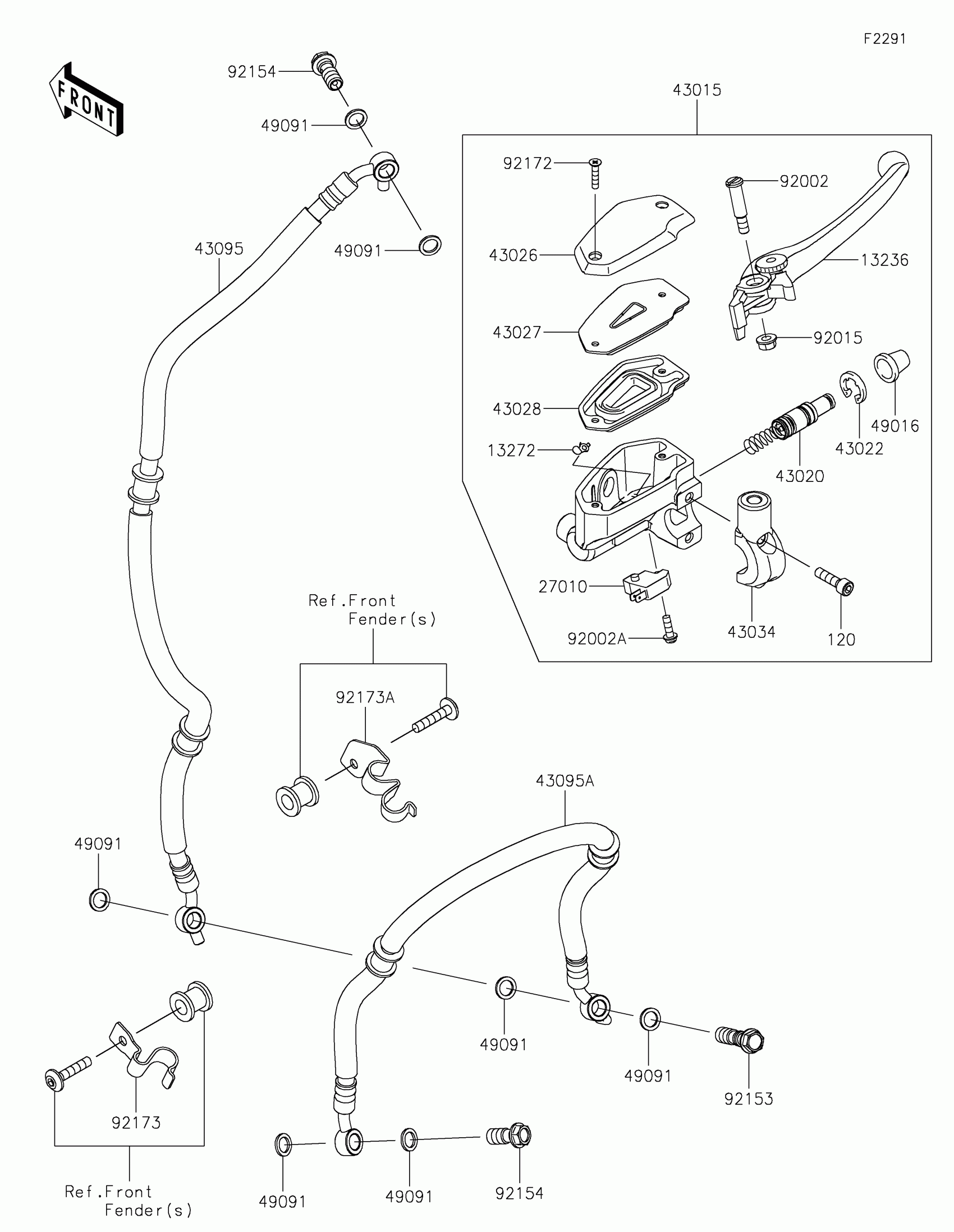

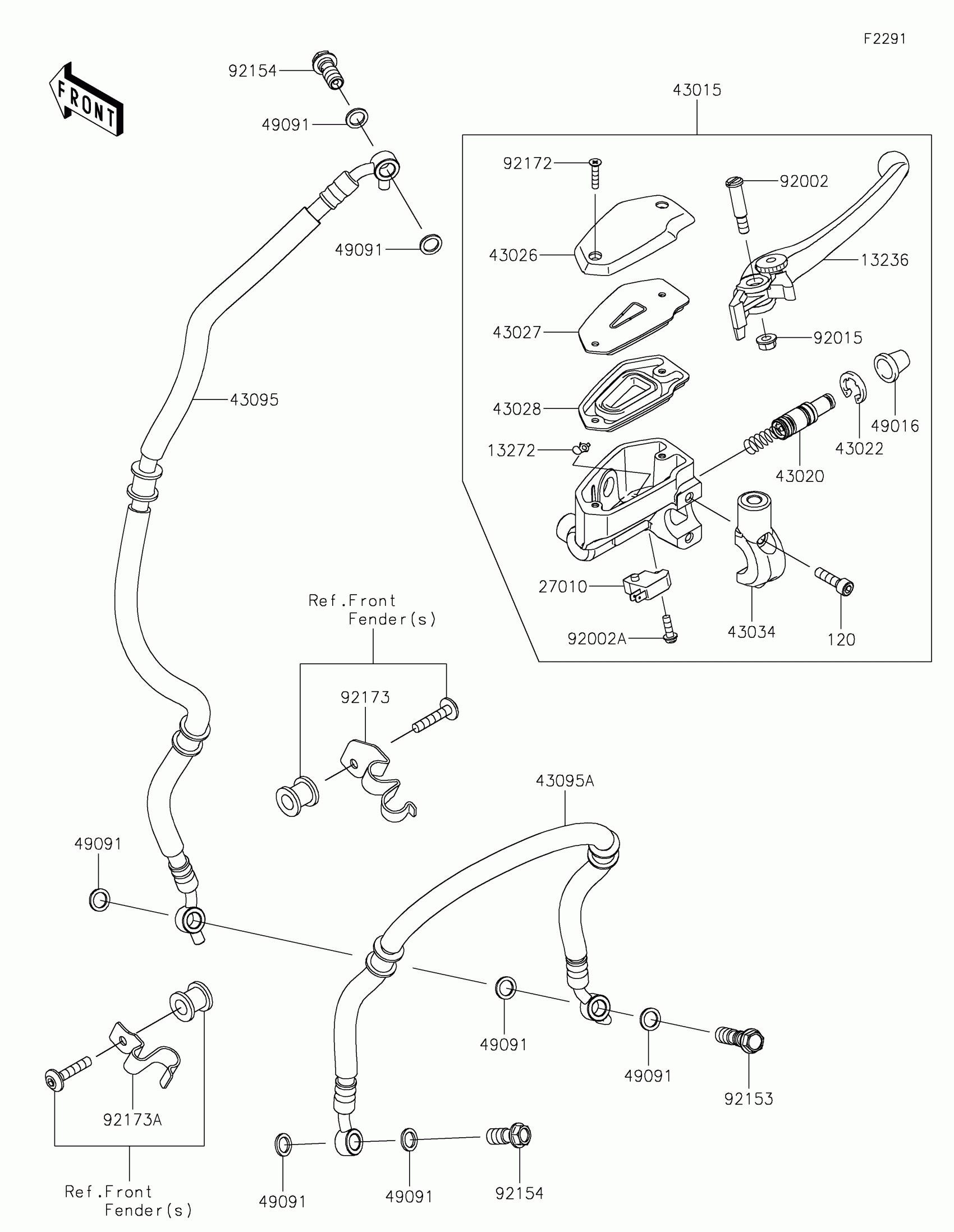

2019 Kawasaki Z650 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120CB0622

1

$4.68

In stock

13236

1

$62.48

In stock

13272

PLATE

13272-0573

1

$7.47

In stock

27010

SWITCH,BRAKE

27010-0762

1

$32.10

In stock

43015

1

$419.59

In stock

43020

PISTON-COMP-BRAKE

43020-0008

1

$67.05

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0019

1

$47.10

In stock

43027

PLATE-DIAPHRAGM

43027-0008

1

$8.47

In stock

43028

DIAPHRAGM

43028-0015

1

$37.15

In stock

43034

1

$45.93

In stock

43095

HOSE-BRAKE,FR,765MM

43095-0963

1

$80.58

In stock

43095A

1

$75.42

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1

$4.68

In stock

92172

SCREW,4X20

92172-0320

1

$3.11

In stock

92173

CLAMP,FR FENDER,LH

92173-1611

1

$3.49

In stock

92173A

CLAMP,FR FENDER,RH

92173-1612

1

$3.15

In stock
