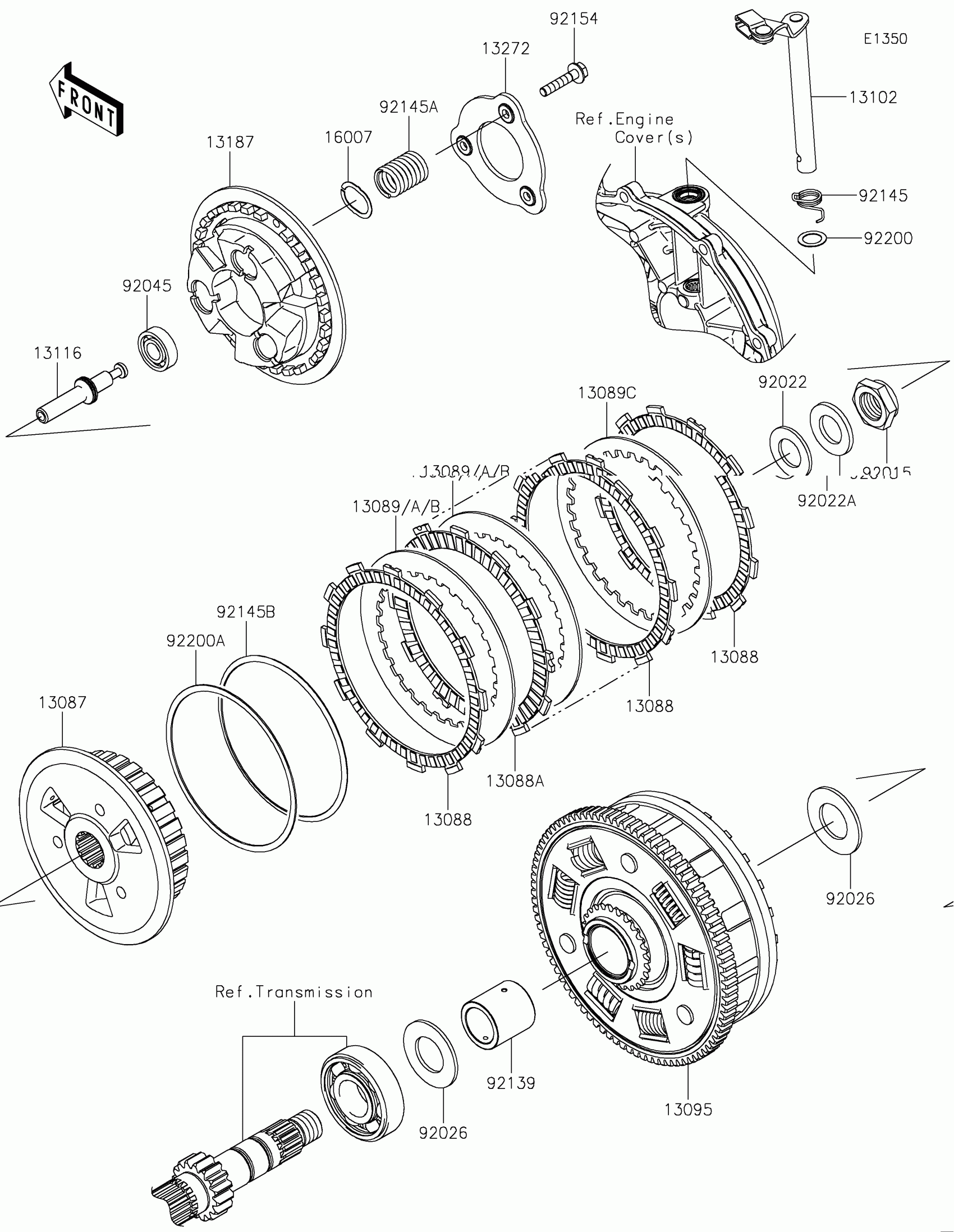

Kawasaki Z650 Clutch Diagram
#
Description
Price
13087
HUB-CLUTCH
13087-0581
$144.95
13088
PLATE-FRICTION
13088-0557
$15.93
13088A
PLATE-FRICTION
13088-0566
$21.14
13089
PLATE-CLUTCH,T=2.0
13089-0021
$11.80
13089A
PLATE-CLUTCH,T=1.6
13089-0038
Unavailable
13089B
PLATE-CLUTCH,T=2.3
13089-0039
Unavailable
13089C
PLATE-CLUTCH
13089-0558
$11.86
13095
HOUSING-COMP-CLUTCH
13095-0585
$579.63
13102
RELEASE-COMP-CLUTCH
13102-0070
$45.06
13116
ROD-PUSH
13116-0734
$22.01
13187
PLATE-CLUTCH OPERATING
13187-0029
$106.94
13272
PLATE
13272-1303
$19.32
16007
SEAT-SPRING
16007-0736
$10.90
92015
NUT,20MM
92015-1555
$13.08
92022
WASHER,20.3X36X2.3
92022-1116
$8.58
92022A
WASHER,20.3X36X3.7
92022-1868
$9.51
92026
SPACER,25.5X47X2.5
92026-0716
$11.16
92045
BEARING-BALL,6001C3ML01
92045-1235
$16.25
92139
BUSHING
92139-0710
$29.82
92145
SPRING,CLUTCH RELEASE
92145-0897
Unavailable
92145A
SPRING
92145-1732
$9.34
92145B
SPRING
92145-1765
$10.39
92154
BOLT,UPSET,6X30
92154-0997
$3.35
92200
WASHER,12X18.5X0.5
92200-1487
$2.75
92200A
WASHER,T=1.0
92200-1579
$10.49
