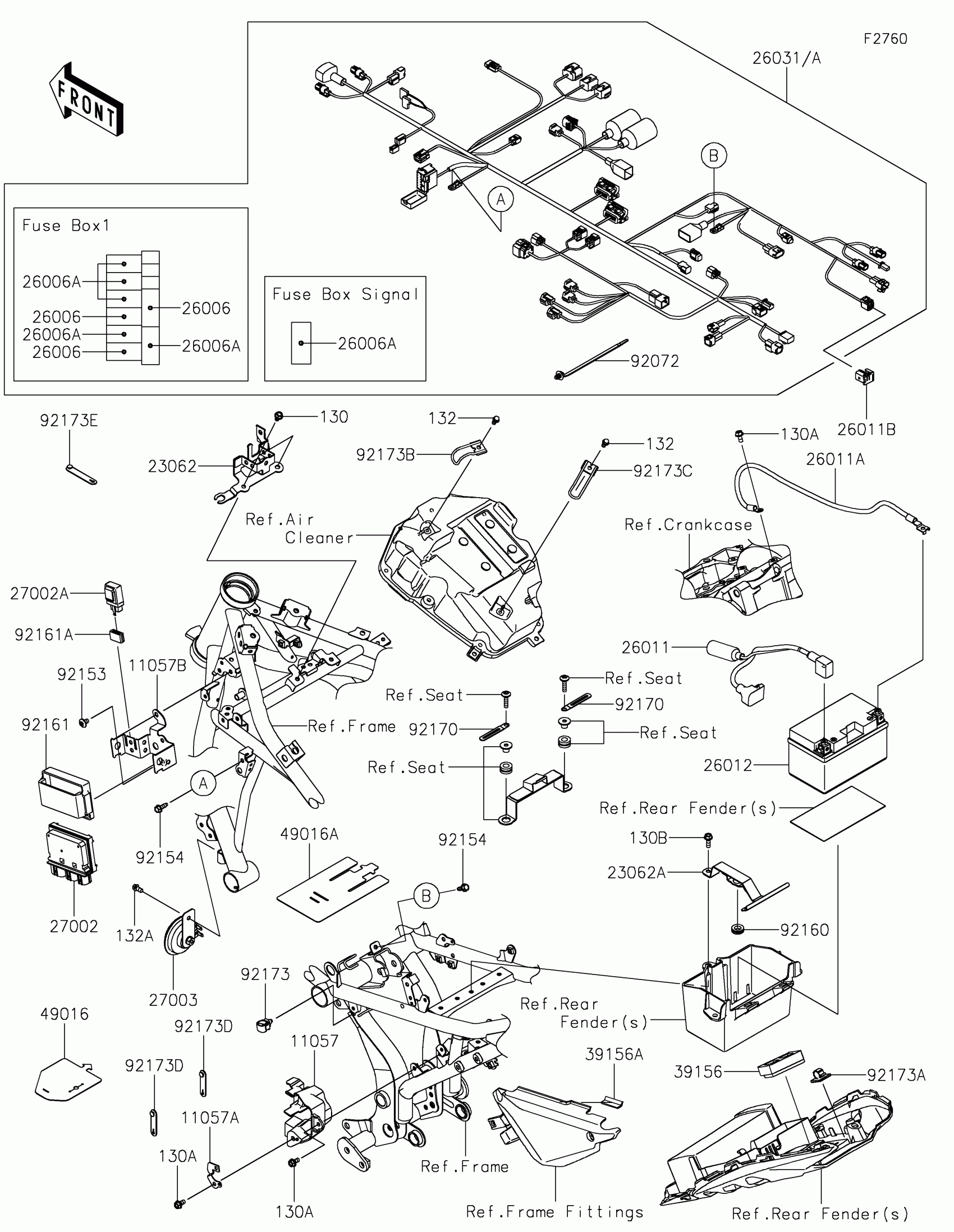

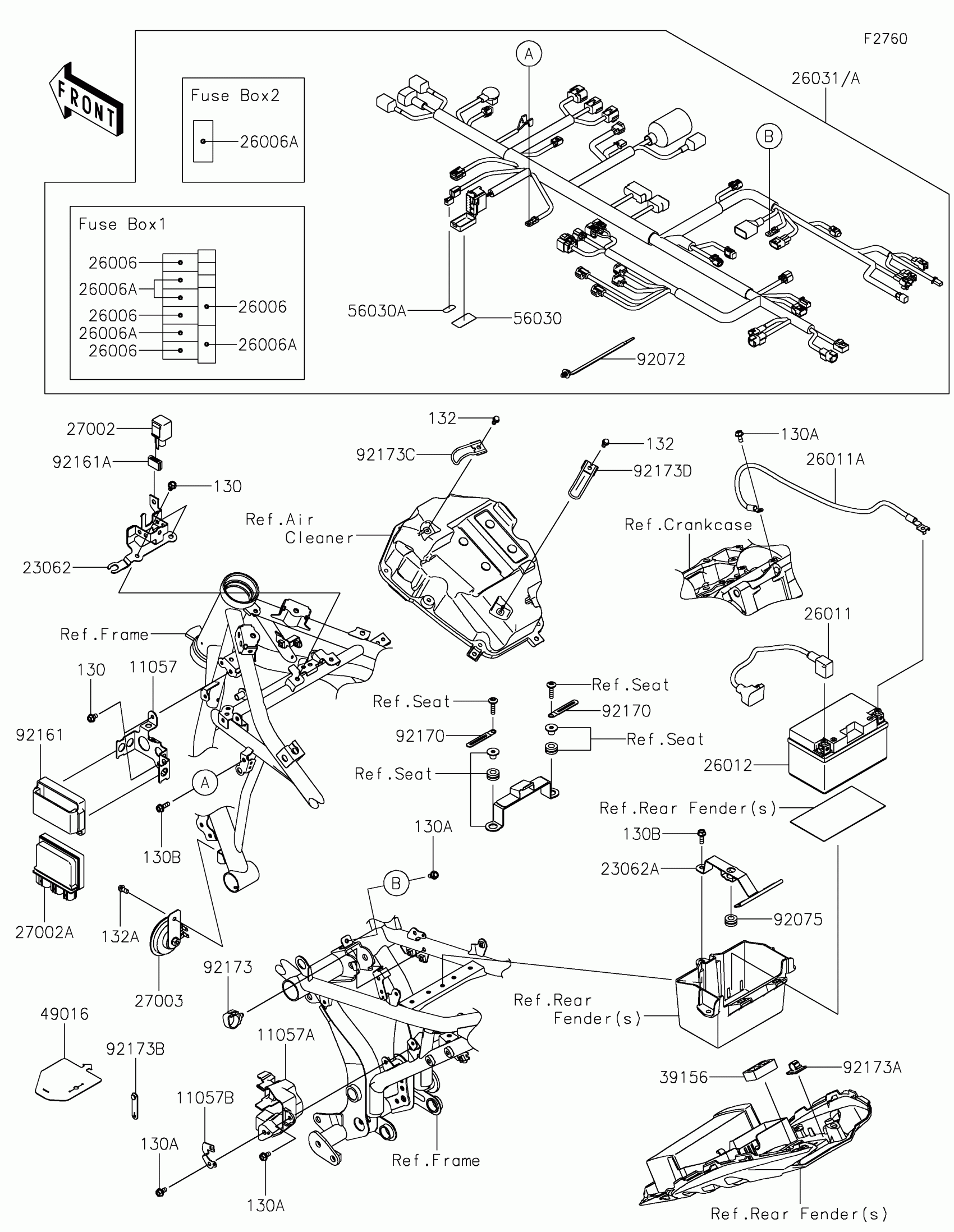

Kawasaki Z650 Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,RELAY BOX

11057-0077

$11.71

11057A

BRACKET,MAGNETIC SW.

11057-0137

$7.93

11057B

BRACKET,COUPLER

11057-0138

$2.70

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

23062

BRACKET-COMP,VD SENSOR

23062-0875

$19.79

23062A

BRACKET-COMP,BATTERY

23062-0899

$10.90

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0979

$37.19

26011A

WIRE-LEAD,BATTERY(-)

26011-0981

$30.38

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

26031A

HARNESS,MAIN

26031-2329

$684.07

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY,BOX

27002-0025

$143.14

27003

HORN

27003-0056

$68.20

39156

PAD,CONNECTOR

39156-2136

$4.41

49016

COVER-SEAL

49016-0645

$6.48

56030

LABEL,FUSE BOX1

56030-0705

$4.37

56030A

LABEL,FUSE BOX2

56030-0706

$4.37

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92075

DAMPER

92075-1880

$1.63

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,15X25X8.5

92161-1443

$1.94

92170

CLAMP

92170-1514

$4.31

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,DRAIN

92173-1055

$6.34

92173B

CLAMP,RUBBER PLATE

92173-1229

$3.94

92173C

CLAMP,A/C CASE,FR

92173-1586

$5.61

92173D

CLAMP,A/C CASE,RR

92173-1587

$5.61

26031

HARNESS,MAIN

26031-2328

$684.07
