2019 Kawasaki Z650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

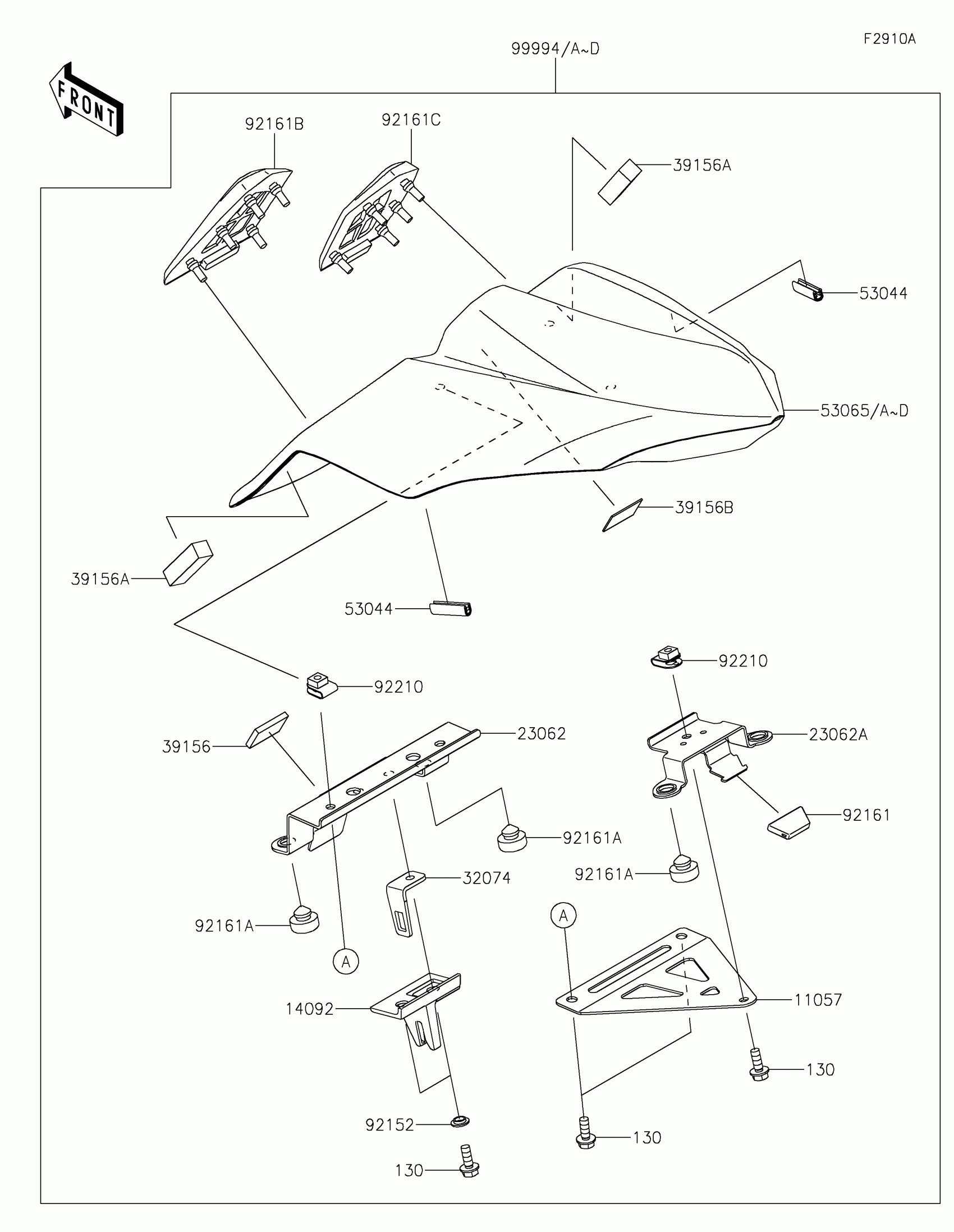

2019 Kawasaki Z650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT COVER

11057-0808

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

14092

COVER

14092-0248

1
Out of stock

23062

BRACKET-COMP

23062-0907

1
Out of stock

23062A

BRACKET-COMP

23062-0914

1
Out of stock

32074

BRACKET-LOCK

32074-0017

1
Out of stock

39156

PAD,20X30X4

39156-0705

1

$0.47

In stock

39156A

PAD,13X43X12

39156-0978

1

$1.66

In stock

39156B

PAD,20X30X1

39156-2199

1

$1.78

In stock

53044

TRIM,L=30

53044-0001

1

$2.29

In stock

53065

COVER SEAT,P.S.GRAY

53065-0039-36S

1

$277.16

In stock

53065D

COVER SEAT,M.F.S.BLACK

53065-0039-739

1
Out of stock

92152

COLLAR

92152-0250

1
Out of stock

92161

DAMPER

92161-0629

1
Out of stock

92161A

DAMPER,10X20X8

92161-0855

1
Out of stock

92161B

1

$38.46

In stock

92161C

1

$38.46

In stock

92210

NUT,6MM

92210-0277

1
Out of stock

99994

KIT,SINGLE SEAT COVER,P.S.GRAY

99994-0796-36S

1
Out of stock

99994D

KIT,SINGLE SEAT COVER,BLACK

99994-0796-739

1
Out of stock
