2019 Kawasaki Z650 Accessory Diagram

← All diagrams

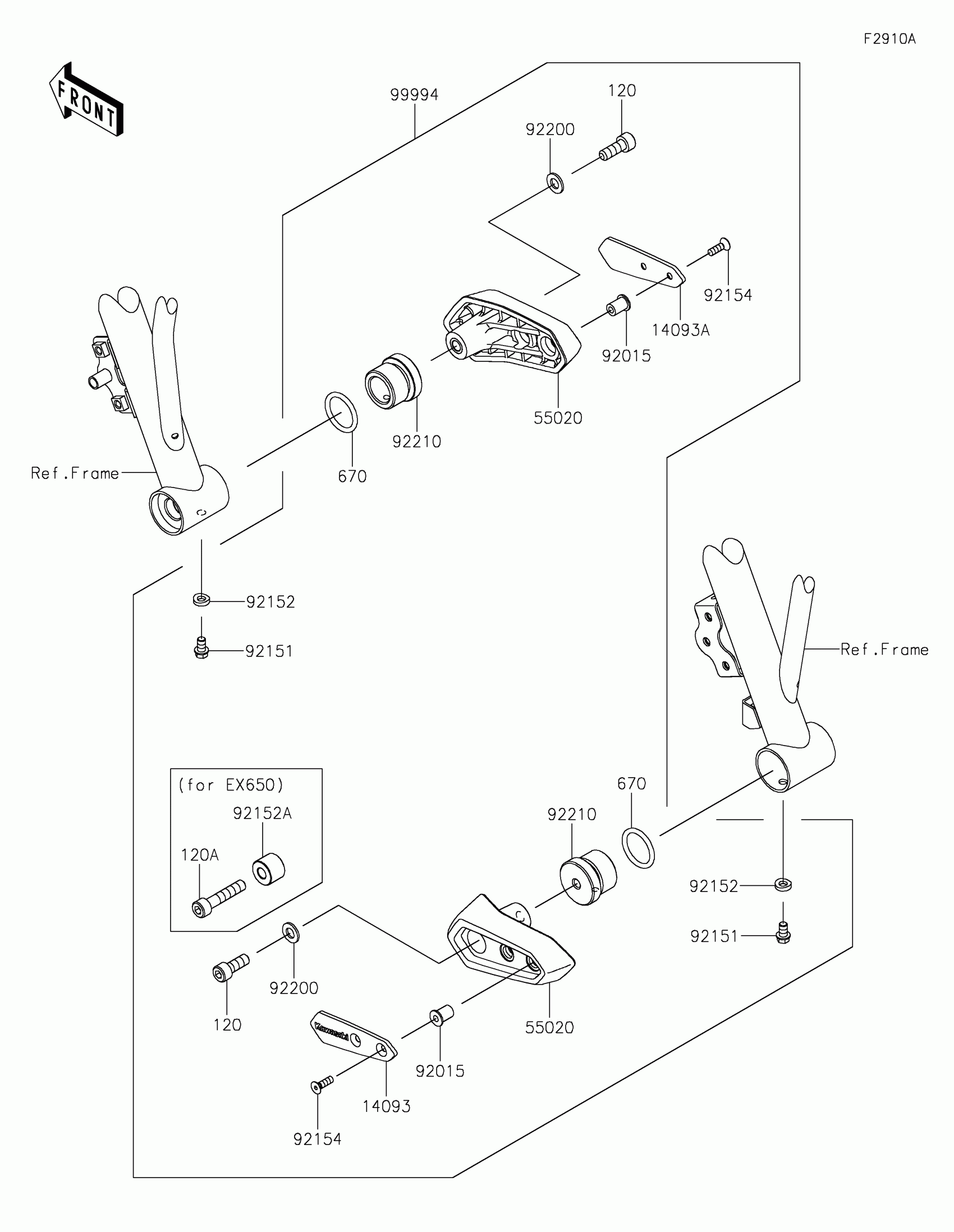

Find the part on the Accessory diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X22

120CA0822

1

$4.31

In stock

120A

BOLT-SOCKET,8X40

120CA0840

1

$2.29

In stock

14093

COVER,SLIDER,LH

14093-0350

1

$91.14

In stock

14093A

COVER,SLIDER,RH

14093-0351

1

$91.14

In stock

55020

GUARD

55020-1997

1

$145.01

In stock

670

O RING,26MM

670B3026

1

$4.06

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92151

BOLT,6X10

92151-1277

1

$1.39

In stock

92152

COLLAR,6.3X12

92152-2236

1
Out of stock

92152A

COLLAR,8.3X20X15

92152-2237

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1014

1

$0.85

In stock

92200

WASHER,8.4X16X1.6

92200-0807

1
Out of stock

92210

NUT

92210-1505

1
Out of stock

99994

1

$276.68

In stock
