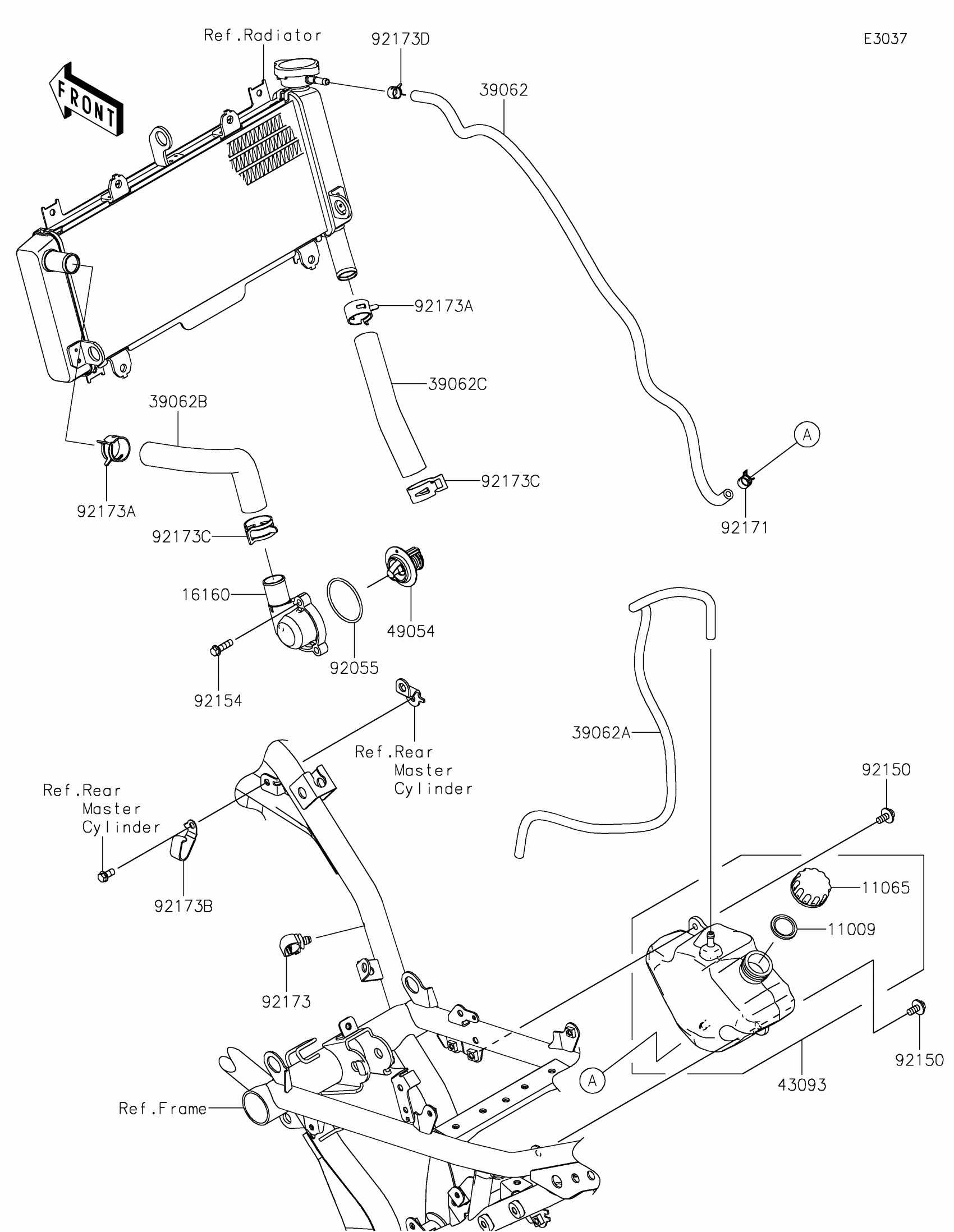

Kawasaki Z650 ABS Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11065

CAP

11065-0962

$2.02

16160

BODY,THERMO

16160-0793

$46.62

39062

HOSE-COOLING,RADI.-RESERVOIR

39062-0745

$10.17

39062A

HOSE-COOLING,BREATHER

39062-0746

$7.82

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-0747

$11.44

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-0748

$12.20

43093

RESERVOIR-ASSY-TANK

43093-0003

$65.84

49054

THERMOSTAT

49054-0001

$30.76

92037

CLAMP

92037-2113

$1.03

92055

RING-O,44.7X2.4

92055-0160

$2.14

92150

BOLT,6X14

92150-1340

$5.07

92154

BOLT,FLANGED,6X20

92154-1778

$2.26

92171

CLAMP,10.5X8X0.7

92171-1992

$6.22

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1567

$3.54

92173B

CLAMP

92173-1592

$3.21

92173C

CLAMP

92173-1688

$3.86
