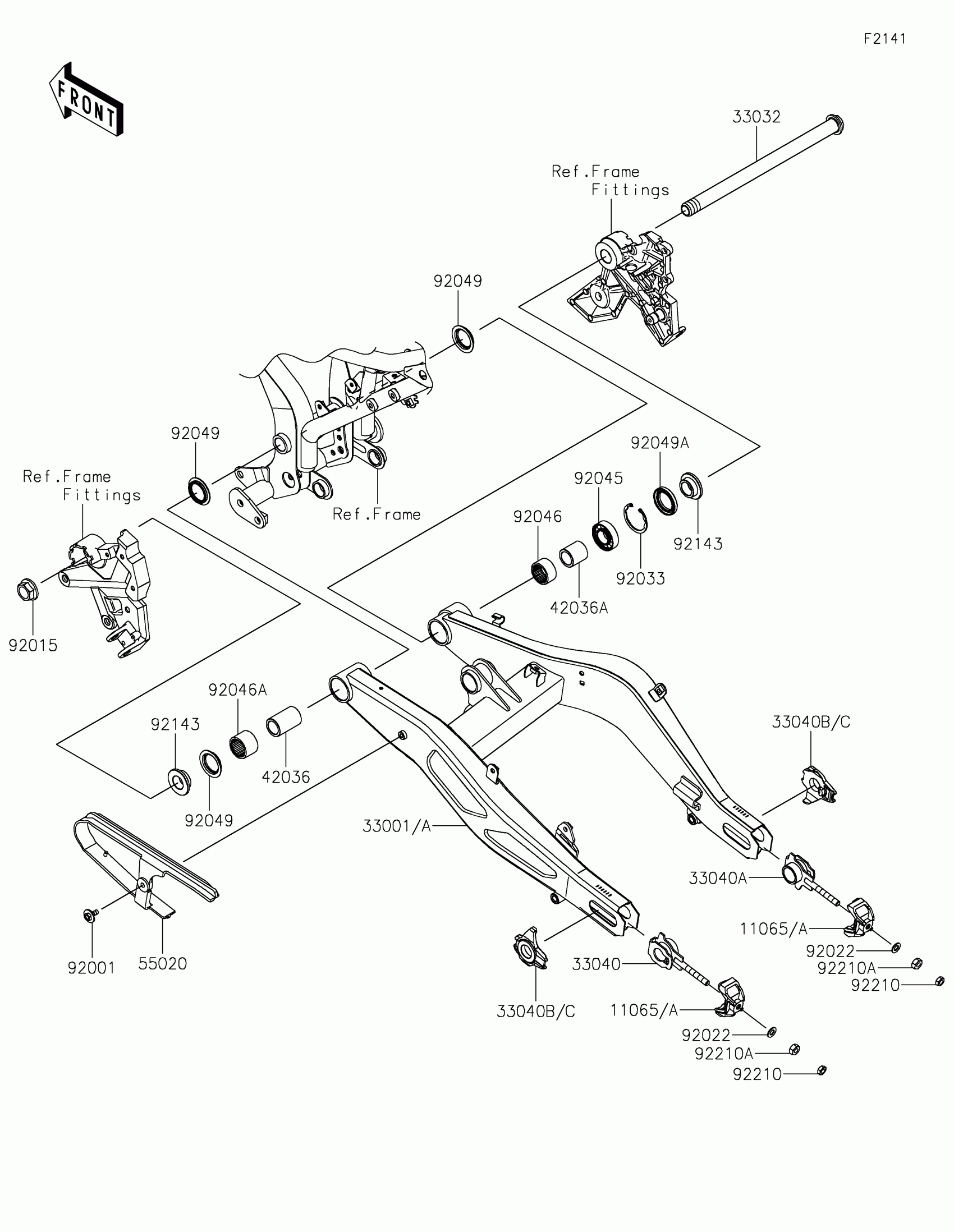

Kawasaki Z650 ABS Swingarm Diagram
#
Description
Price
11065
CAP,BLACK
11065-0957-10
$14.50
11065A
CAP,F.S.BLACK
11065-0957-18R
$14.49
33001
ARM-COMP-SWING,BLACK
33001-0663-10
$668.04
33001A
ARM-COMP-SWING,F.S.BLACK
33001-0663-18R
$668.04
33032
SHAFT-SWING ARM,20X298
33032-0050
$100.34
33040
ADJUSTER-CHAIN,IN,LH
33040-0085
$27.32
33040A
ADJUSTER-CHAIN,IN,RH
33040-0086
$27.32
33040B
ADJUSTER-CHAIN,OUTER,BLACK
33040-0087-10
$20.00
33040C
ADJUSTER-CHAIN,OUTER,F.S.BLACK
33040-0087-18R
$19.99
42036
SLEEVE,20.1X28X43.5
42036-0785
$31.89
42036A
SLEEVE,20.1X28X29.5
42036-0786
$28.98
55020
GUARD,CHAIN
55020-1959
$43.63
92001
BOLT,6X16
92001-1950
$4.31
92015
NUT,FLANGED,20MM
92015-1724
$14.90
92022
WASHER,8.5X16X1.2
92022-1582
$0.96
92033
RING-SNAP,42MM
92033-1041
$6.16
92045
BEARING-BALL,6004UL11
92045-0017
$14.39
92046
BEARING-NEEDLE,7E-HVS 28X34X17
92046-0008
$21.54
92046A
BEARING-NEEDLE,BM2824
92046-1202
$25.10
92049
SEAL-OIL
92049-0132
$9.39
92049A
SEAL-OIL
92049-0138
$9.39
92143
COLLAR,SWING ARM,RH,L=12.5
92143-1727
$19.64
92210
NUT,8MM
92210-0116
$2.26
92210A
NUT,8MM
92210-0117
$2.26
