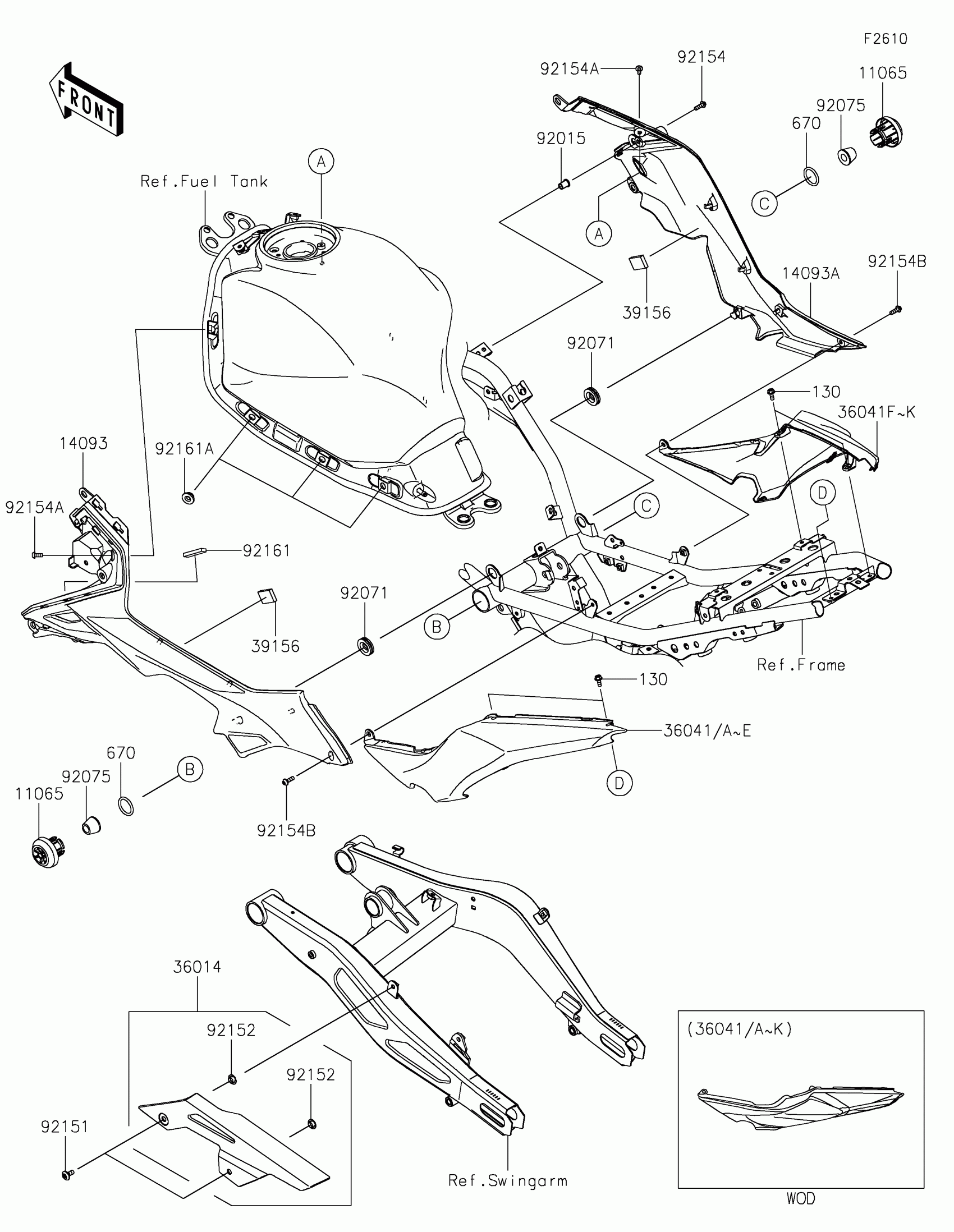

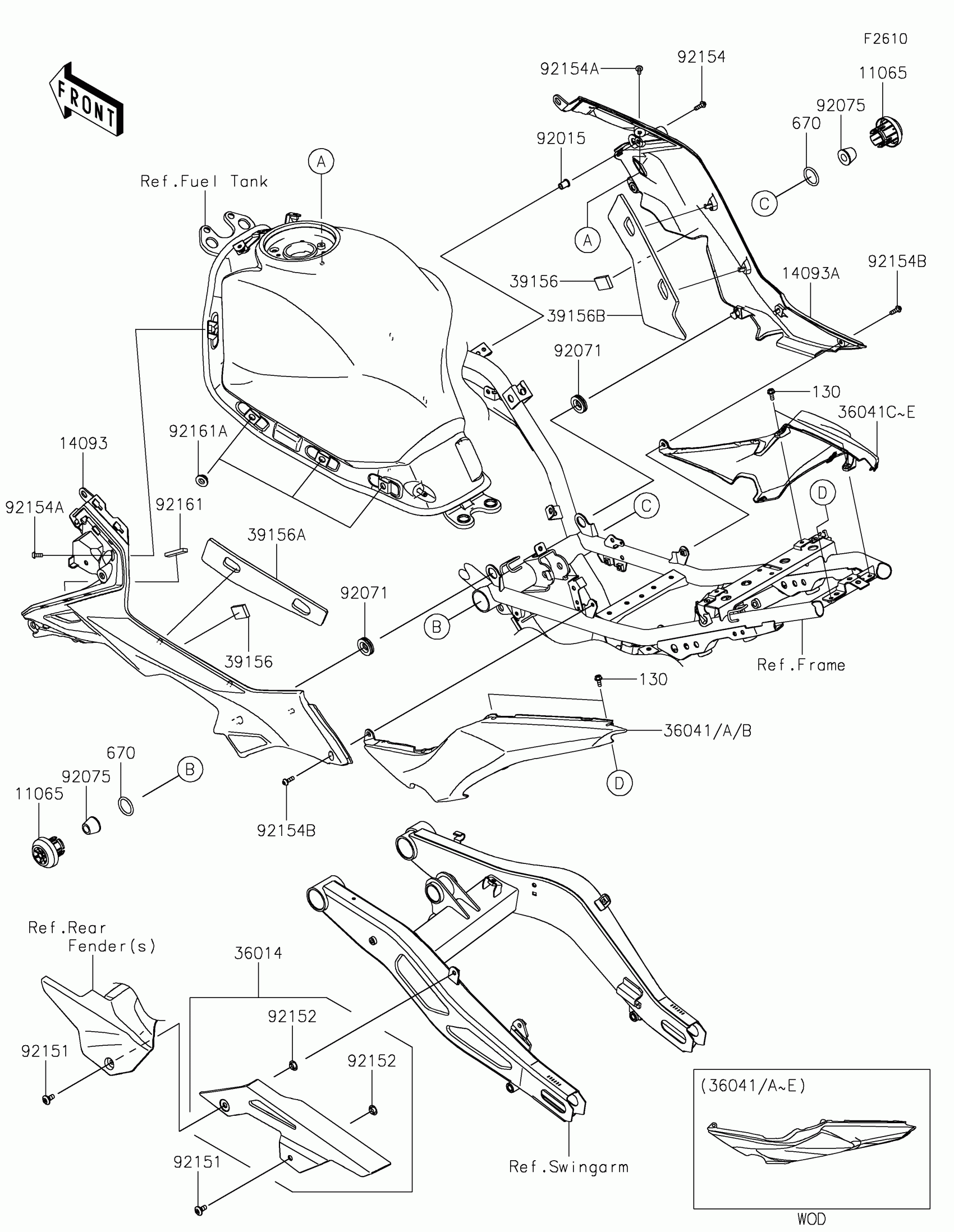

Kawasaki Z650 ABS Side Covers/Chain Cover Diagram
#
Description
Price
11065
CAP
11065-0956
$3.18
14093
COVER,KNEE GRIP,LH
14093-0613
$58.15
14093A
COVER,KNEE GRIP,RH
14093-0614
$58.15
36014
CASE-CHAIN
36014-0044
$17.48
36041
COVER-TAIL,LH,M.S.BLACK
36041-0033-660
$75.55
36041A
COVER-TAIL,LH,P.R.WHITE
36041-0033-68N
$72.11
36041B
COVER-TAIL,LH,F.RED
36041-0033-B1
$111.40
36041C
COVER-TAIL,RH,M.S.BLACK
36041-0034-660
$75.55
36041D
COVER-TAIL,RH,P.R.WHITE
36041-0034-68N
$75.55
36041E
COVER-TAIL,RH,F.RED
36041-0034-B1
$111.40
39156
PAD,20X30X6
39156-1751
$1.27
39156A
PAD,KNEE GRIP COVER,LH
39156-2589
$10.53
39156B
PAD,KNEE GRIP COVER,RH
39156-2590
$18.28
92015
NUT,WELL,5MM
92015-1757
$7.29
92071
GROMMET
92071-1043
$5.46
92075
DAMPER,HANDLE HOLDER
92075-039
$4.69
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR,8.8X11.2X4
92152-0909
$5.65
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X12
92154-1421
$0.95
92154B
BOLT,SOCKET,5X16
92154-1701
$1.19
92161
DAMPER,TANK COVER
92161-0804
$2.03
92161A
DAMPER,6X20X7.5
92161-1937
$1.94
130
BOLT-FLANGED,5X12
130BA0512
$2.22
670
O RING,25MM
670B3025
$1.22
