Description

Price

14093

COVER,RADIATOR,LH

14093-0935

$45.37

14093A

COVER,RADIATOR,RH

14093-0936

$40.27

23062

BRACKET-COMP,RADIATOR COVER,RH

23062-1246

$7.51

23062A

BRACKET-COMP,RADIATOR COVER,LH

23062-1285

$10.21

49134

SHROUD,OUTER,LH,M.F.S.BLACK

49134-0008-739

$87.69

49134A

SHROUD,OUTER,LH,F.RED

49134-0008-B1

$123.73

49134B

SHROUD,OUTER,RH,M.F.S.BLACK

49134-0009-739

$89.11

49134C

SHROUD,OUTER,RH,F.RED

49134-0009-B1

$125.62

49134D

SHROUD,INNER,LH

49134-0010

$39.46

49134E

SHROUD,INNER,RH

49134-0011

$38.67

49134F

SHROUD,OUTER,LH,P.R.WHITE

49134-5292-68N

$184.35

49134G

SHROUD,OUTER,RH,P.R.WHITE

49134-5295-68N

$185.71

49134H

SHROUD,OUTER,LH,M.S.BLACK

49134-5298-660

Unavailable

49134I

SHROUD,OUTER,RH,M.S.BLACK

49134-5299-660

Unavailable

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0709

$2.67

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92154A

BOLT,SOCKET,5X16

92154-1701

$1.19

92160

DAMPER

92160-1613

$3.74

92172

SCREW,5X12

92172-0821

$0.85

130

BOLT-FLANGED,5X12

130BA0512

$2.22

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

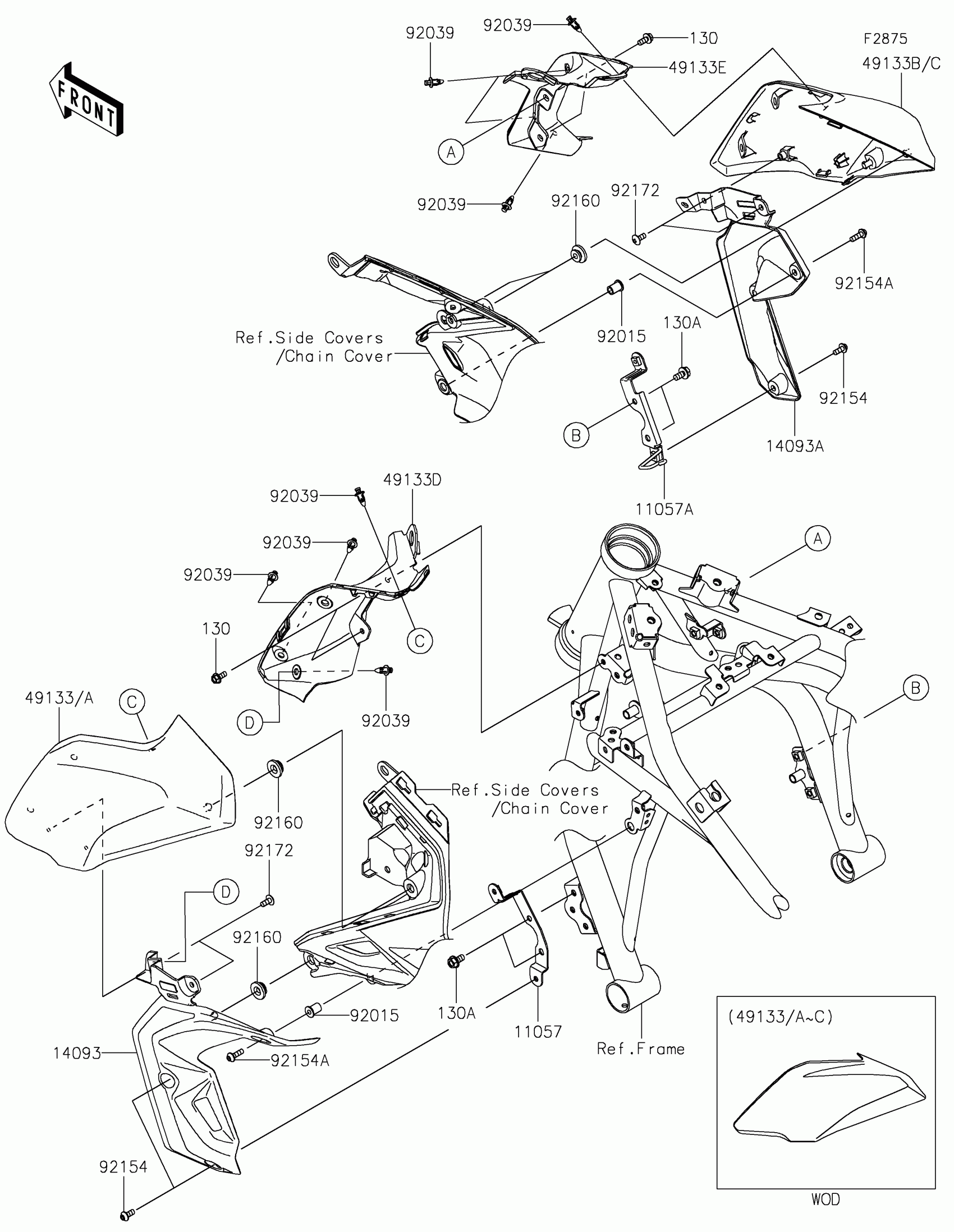

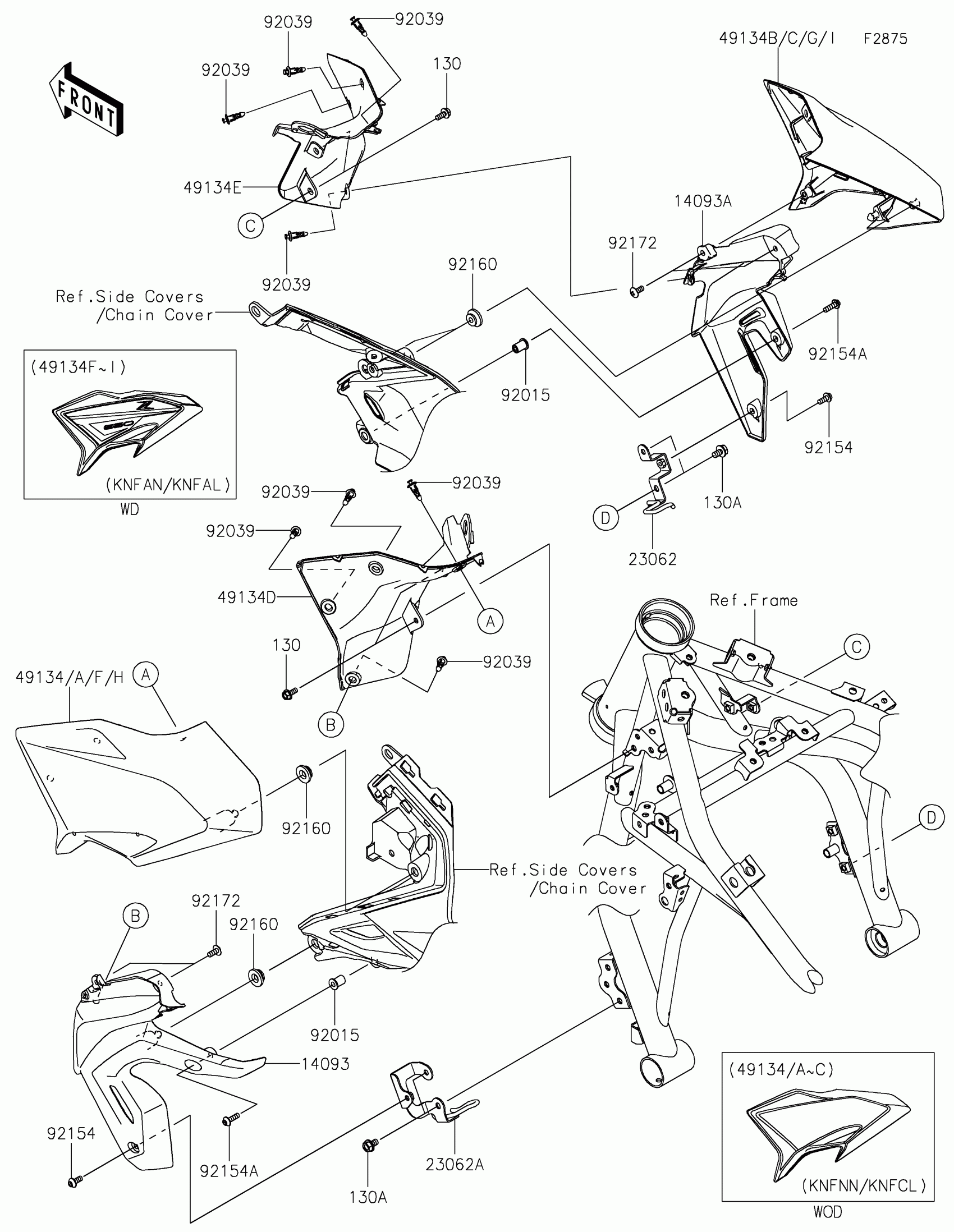

Kawasaki Z650 ABS Shroud Diagram
