Description

Price

32046

BRACKET-SEAT

32046-0394

$14.11

53003

LEATHER,FR SEAT,BLACK

53003-0425-MA

$95.11

53003A

LEATHER,BLACK

53003-0504-MA

$86.12

53003B

LEATHER,FR SEAT,BLACK

53003-0641-MA

$132.75

53003C

LEATHER,RR SEAT,BLACK

53003-0642-MA

$121.45

53066

SEAT-ASSY,RR,BLACK+BLK

53066-0661-12Y

$189.41

53066A

SEAT-ASSY,FR,BLACK

53066-0689-MA

$207.22

53066B

SEAT-ASSY,FR,BLACK

53066-0837-MA

$297.75

53066C

SEAT-ASSY,RR,BLACK+BLK

53066-0838-12Y

$266.92

92075

DAMPER

92075-1880

$1.63

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.5X10X11.6

92152-2326

$3.44

92161

DAMPER,SEAT BRACKET,FR

92161-1865

$2.70

92161A

DAMPER,10X20X8

92161-1898

$4.25

92161B

DAMPER,14X30X14.5

92161-1970

$7.43

92161C

DAMPER

92161-1971

$2.67

92161D

DAMPER

92161-2259

$3.86

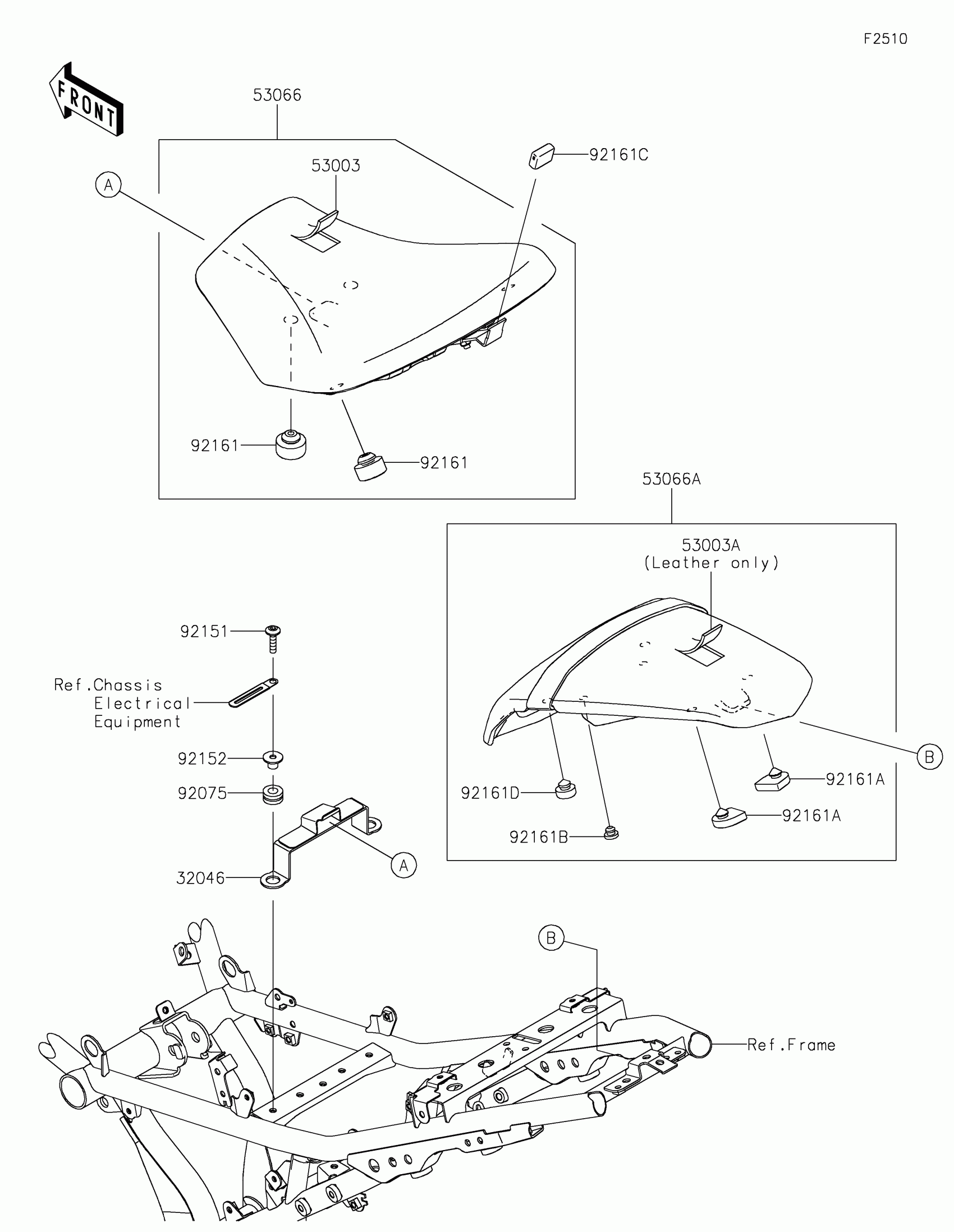

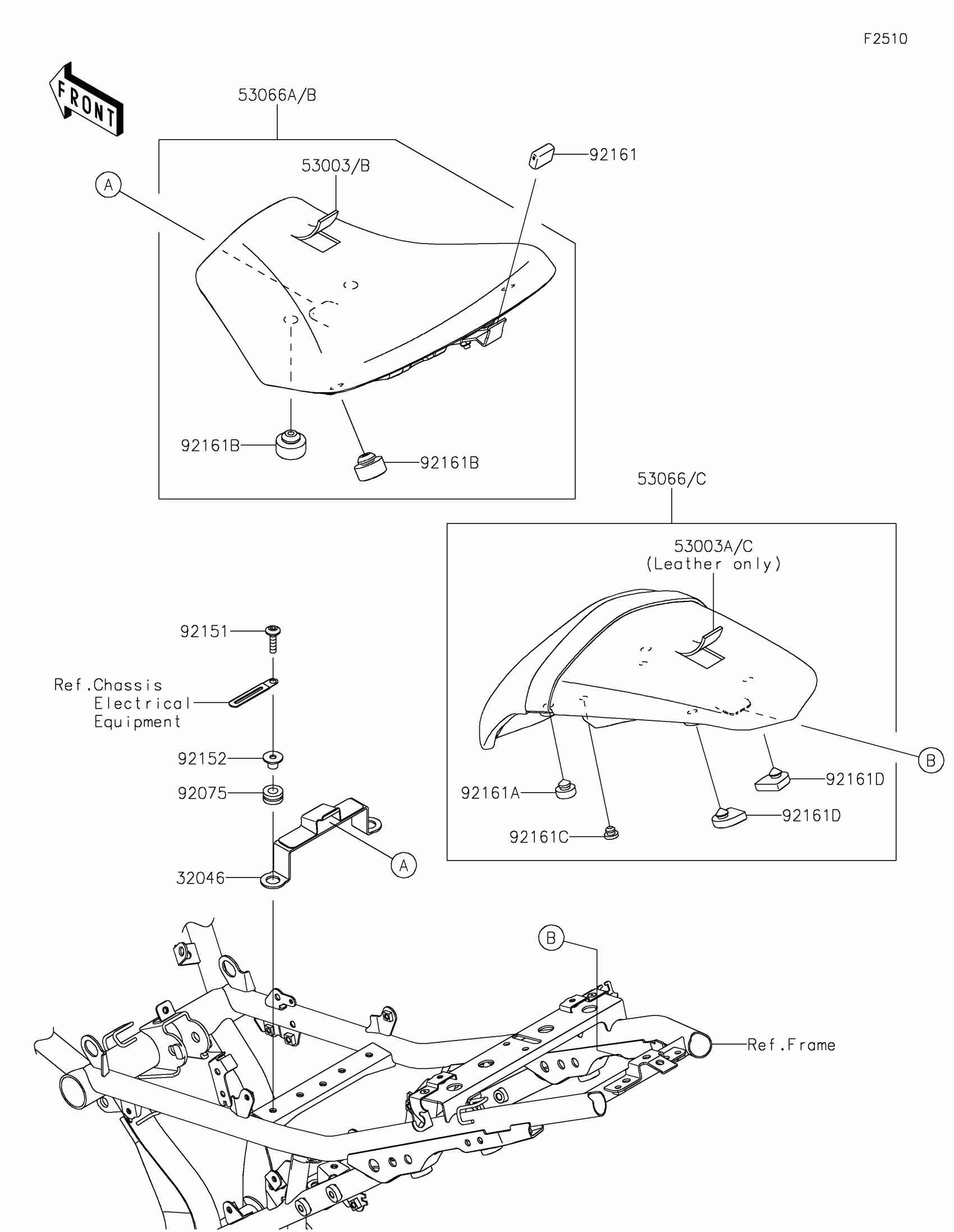

Kawasaki Z650 ABS Seat Diagram

BRACKET-SEAT

LEATHER,FR SEAT,BLACK

LEATHER,BLACK

LEATHER,FR SEAT,BLACK

LEATHER,RR SEAT,BLACK

SEAT-ASSY,RR,BLACK+BLK

SEAT-ASSY,FR,BLACK

SEAT-ASSY,FR,BLACK

SEAT-ASSY,RR,BLACK+BLK

DAMPER

BOLT,SOCKET,6X25

COLLAR,6.5X10X11.6

DAMPER,SEAT BRACKET,FR

DAMPER,10X20X8

DAMPER,14X30X14.5

DAMPER

DAMPER
