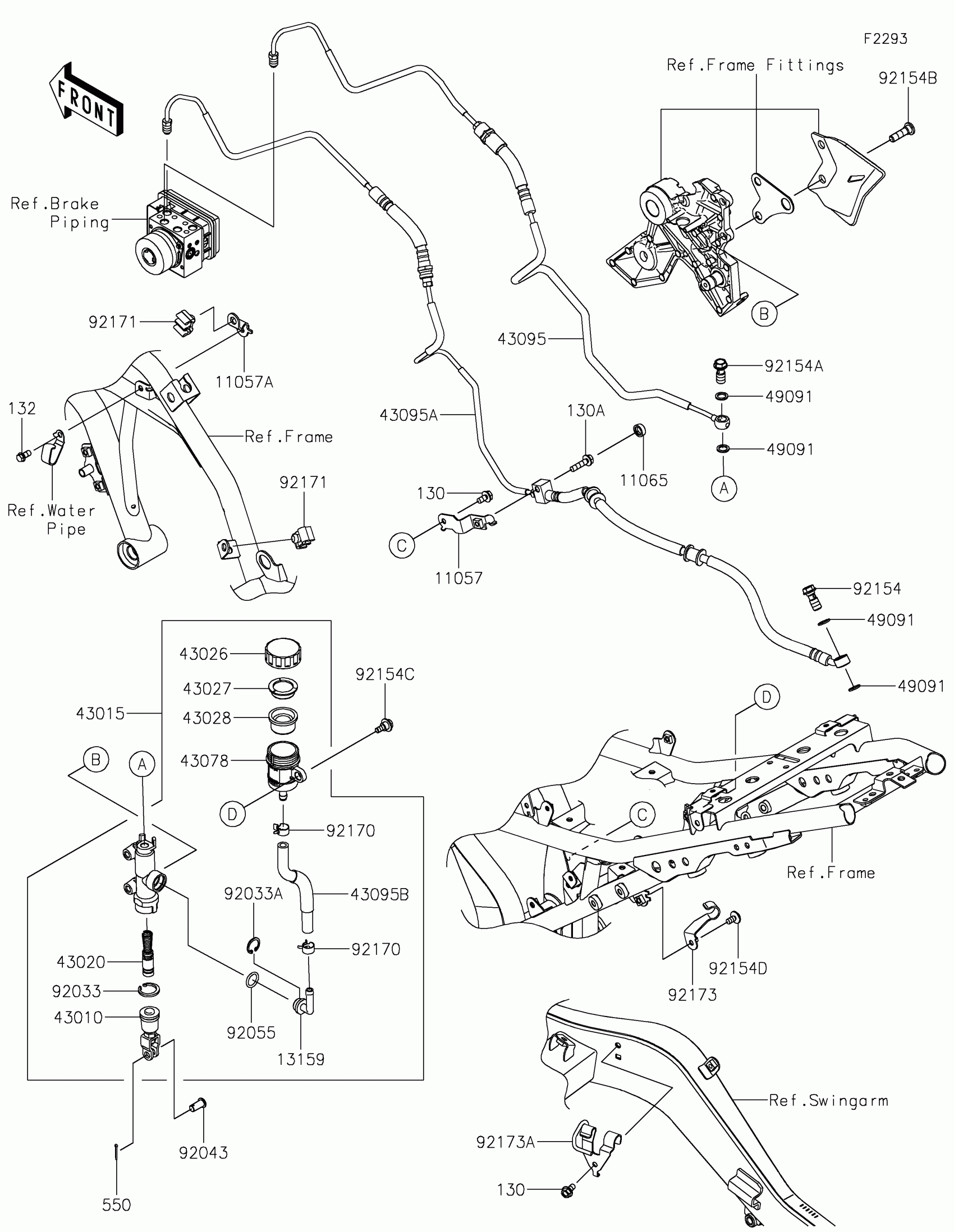

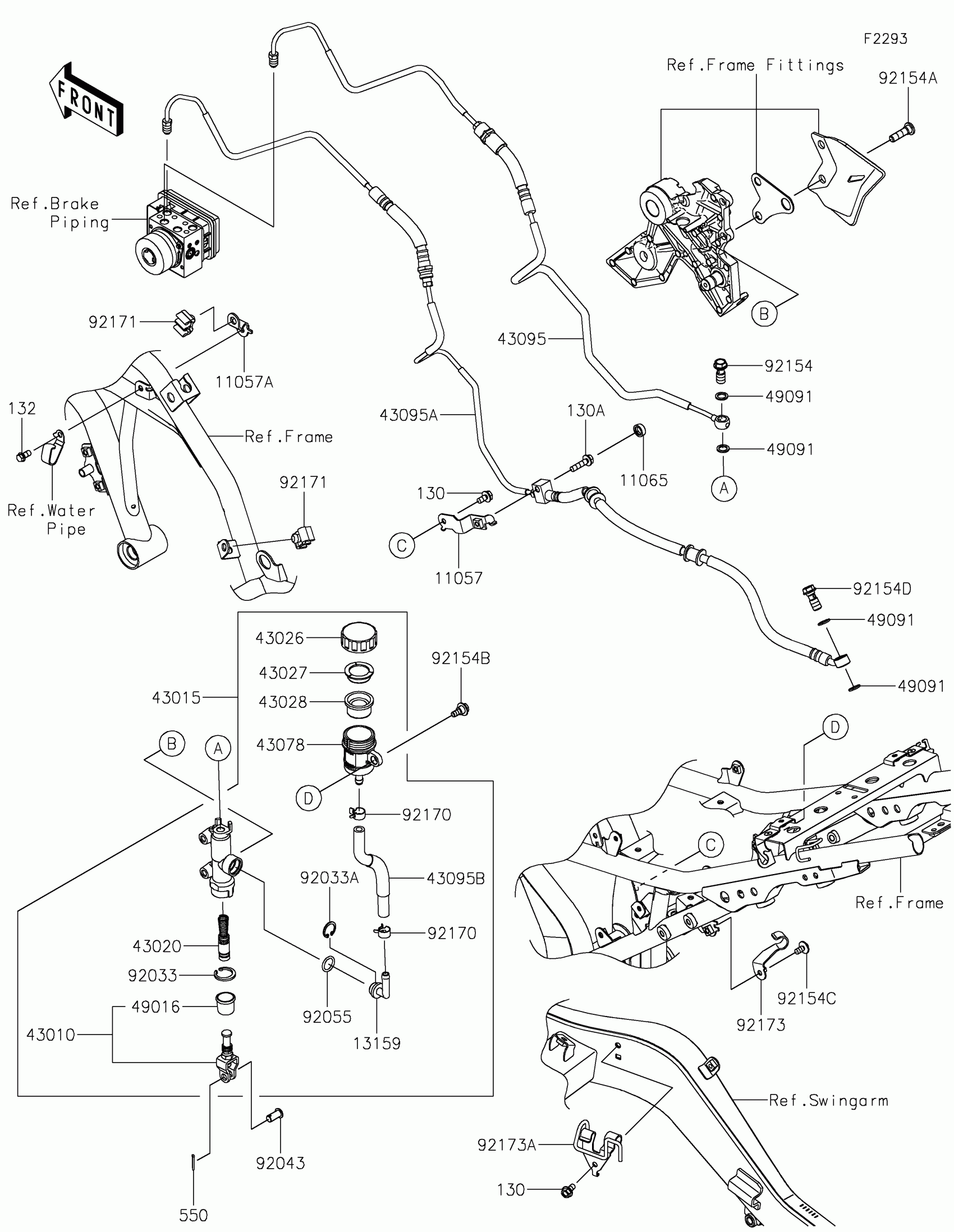

Kawasaki Z650 ABS Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET,ABS JOINT

11057-0161

$5.61

11057A

BRACKET,FR ABS PIPE

11057-0166

$3.21

11065

CAP,BOLT

11065-0752

$2.30

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-0020

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0754

$262.40

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR M/CYL.-ABS UNIT

43095-0961

$278.13

43095A

HOSE-BRAKE,ABS UNIT-RR CAL.

43095-0962

$322.59

43095B

HOSE-BRAKE,RR M/CYL.

43095-0969

$18.48

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0182

$3.29

92055

RING-O,14.8X2.4

92055-0741

$3.71

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,SOCKET,8X30

92154-0843

$4.72

92154B

BOLT

92154-0929

$3.71

92154C

BOLT,SOCKET,6X12

92154-0951

$1.63

92154D

BOLT,OIL,L=23

92154-4239

$5.91

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,RR BRAKE HOSE

92173-1604

$3.44

92173A

CLAMP

92173-2291

$7.51

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

550

PIN-COTTER,2.0X15

550AA2015

$1.12
