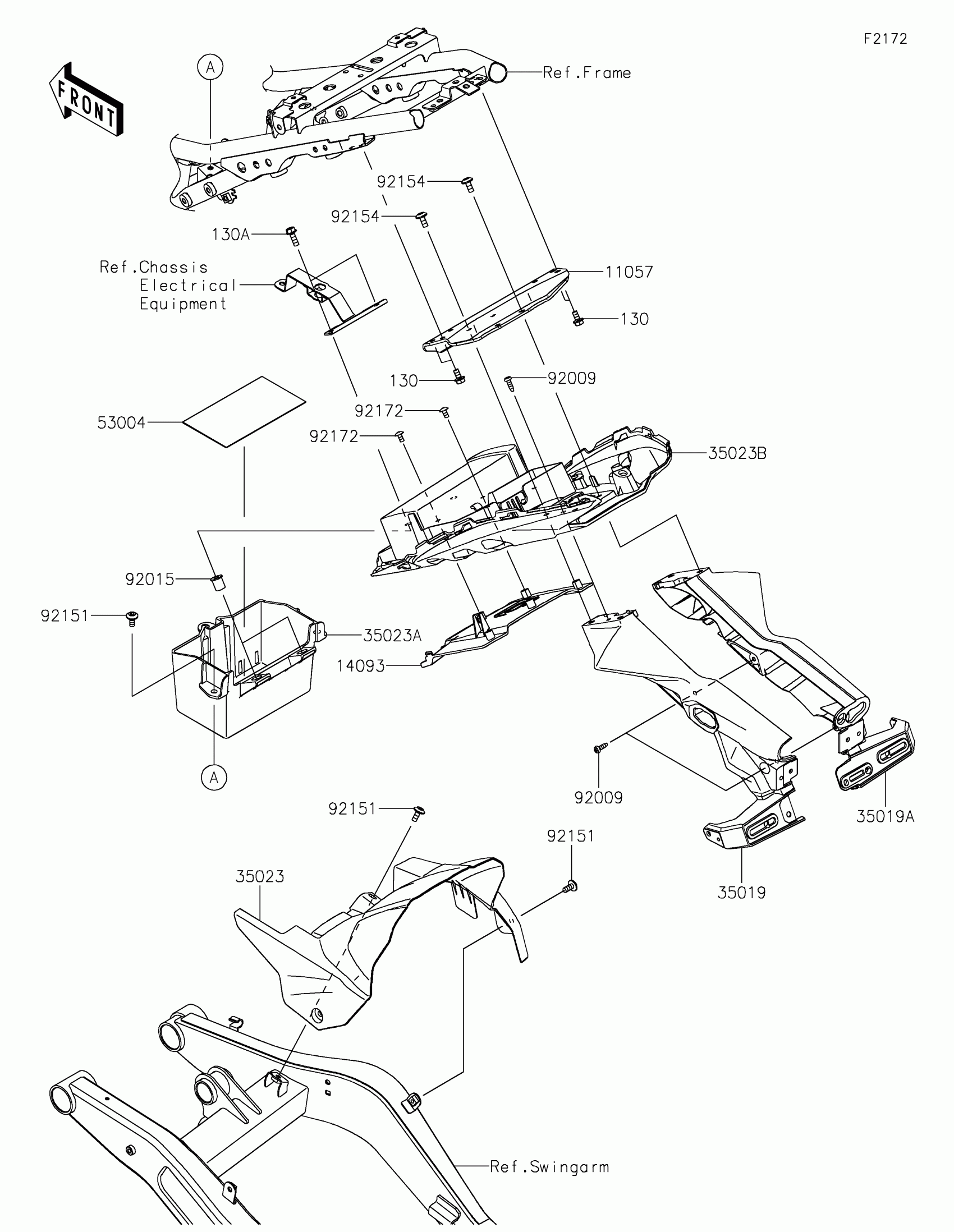

Kawasaki Z650 ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET,FLAP

11057-0757

$41.44

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X18

130BA0618

$1.36

14093

COVER

14093-0482

$16.07

35019

FLAP,LH

35019-0617

$32.73

35019A

FLAP,RH

35019-0618

$35.79

35023

FENDER-REAR

35023-0417

$25.51

35023A

FENDER-REAR,FR

35023-0418

$34.01

35023B

FENDER-REAR,RR

35023-0419

Unavailable

53004

MAT,BATTERY

53004-0560

$8.85

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92015

NUT

92015-1700

$6.55

92151

BOLT,SOCKET,6X14

92151-1654

$1.56

92154

BOLT,SOCKET,6X14

92154-0745

$1.93

92172

SCREW,5X10

92172-0864

$1.20
