Description

Price

21176

SENSOR,SPEED,RR

21176-0828

$139.73

41080

DISC,RR

41080-0667

$294.29

42036

SLEEVE

42036-0050

$7.75

43044

HOLDER-COMP-CALIPER

43044-0081

$119.37

43048

PISTON-CALIPER

43048-0008

$30.46

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$312.25

43082

PAD-ASSY-BRAKE

43082-0166

$68.30

49006

BOOT

49006-0058

$13.48

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN

92043-0137

$13.60

92043A

PIN,HANGER

92043-0820

$7.32

92049

SEAL-OIL

92049-1449

$5.00

92049A

SEAL-OIL

92049-1450

$4.31

92145

SPRING,PAD

92145-0493

$7.69

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92153A

BOLT,FLANGED

92153-1826

$10.30

92154

BOLT,SOCKET,6X12

92154-0951

$1.63

92154A

BOLT,SOCKET,8X30

92154-1865

$4.69

92171

CLAMP

92171-0640

$3.90

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-1588

$2.19

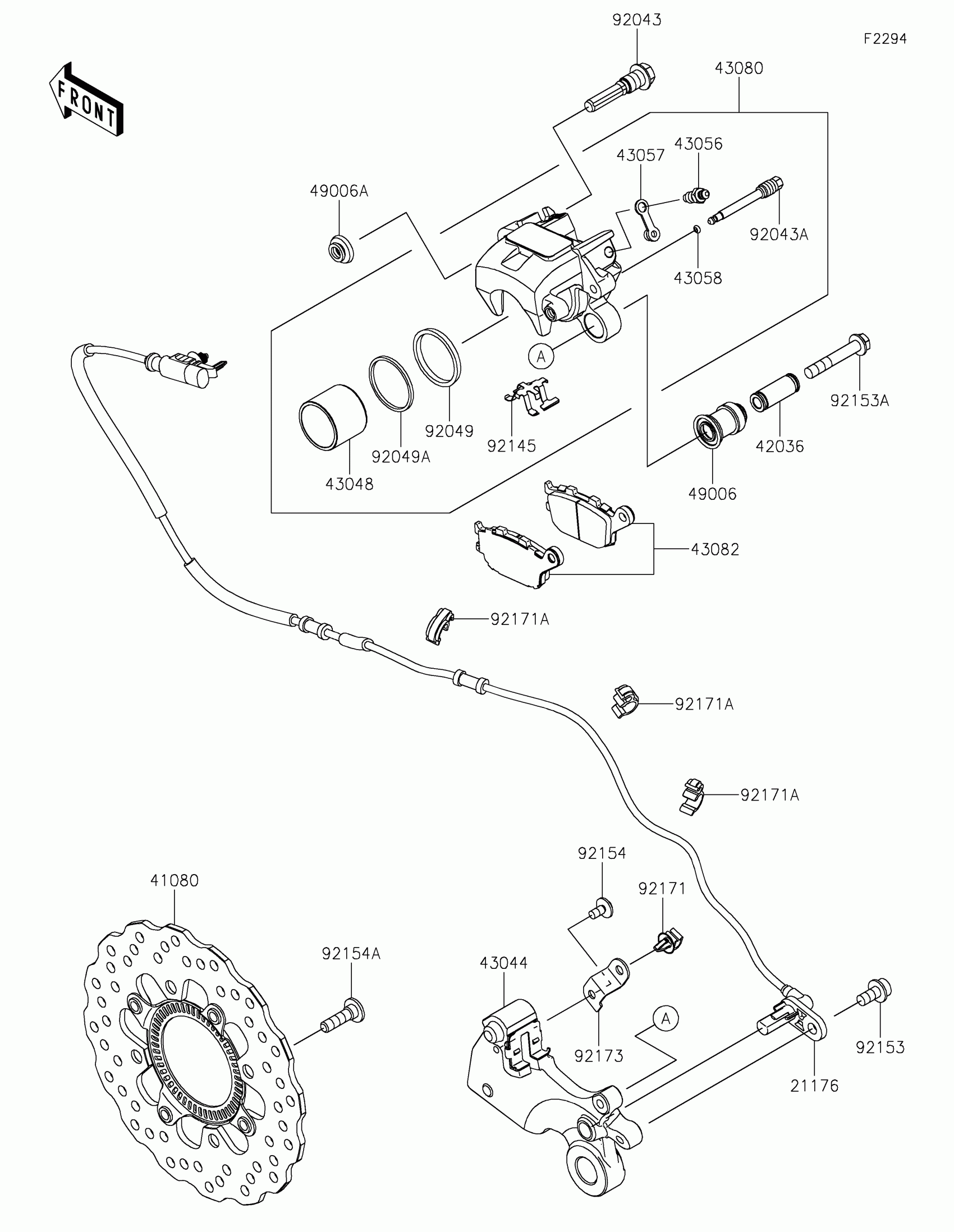

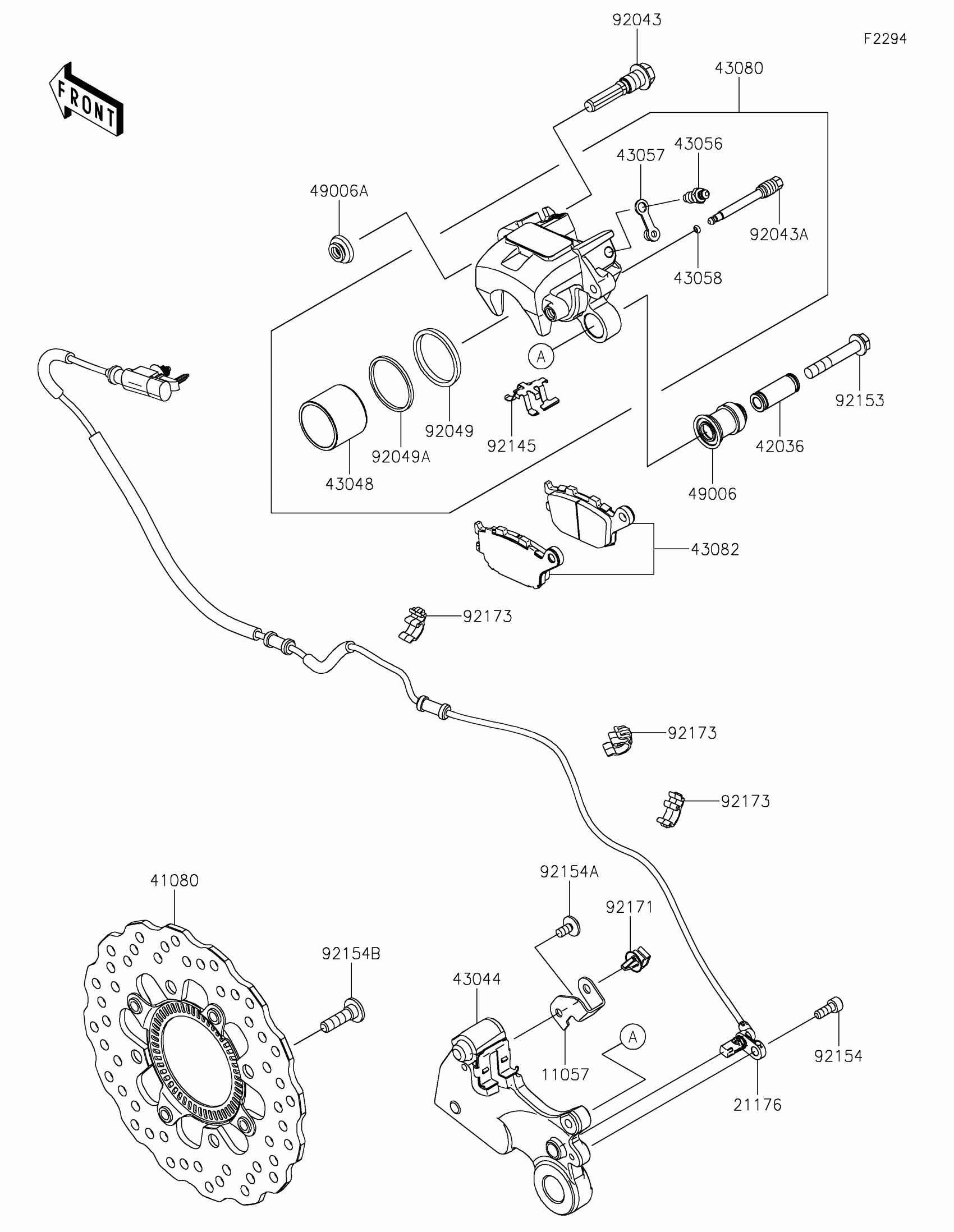

Kawasaki Z650 ABS Rear Brake Diagram

SENSOR,SPEED,RR

DISC,RR

SLEEVE

HOLDER-COMP-CALIPER

PISTON-CALIPER

BREATHER

CAP-BREATHER

RING,STOPPER

CALIPER-SUB-ASSY,RR,BLACK

PAD-ASSY-BRAKE

BOOT

BOOT,CALIPER

PIN

PIN,HANGER

SEAL-OIL

SEAL-OIL

SPRING,PAD

BOLT,SOCKET,8X16

BOLT,FLANGED

BOLT,SOCKET,6X12

BOLT,SOCKET,8X30

CLAMP

CLAMP,BRAKE HOSE

CLAMP
