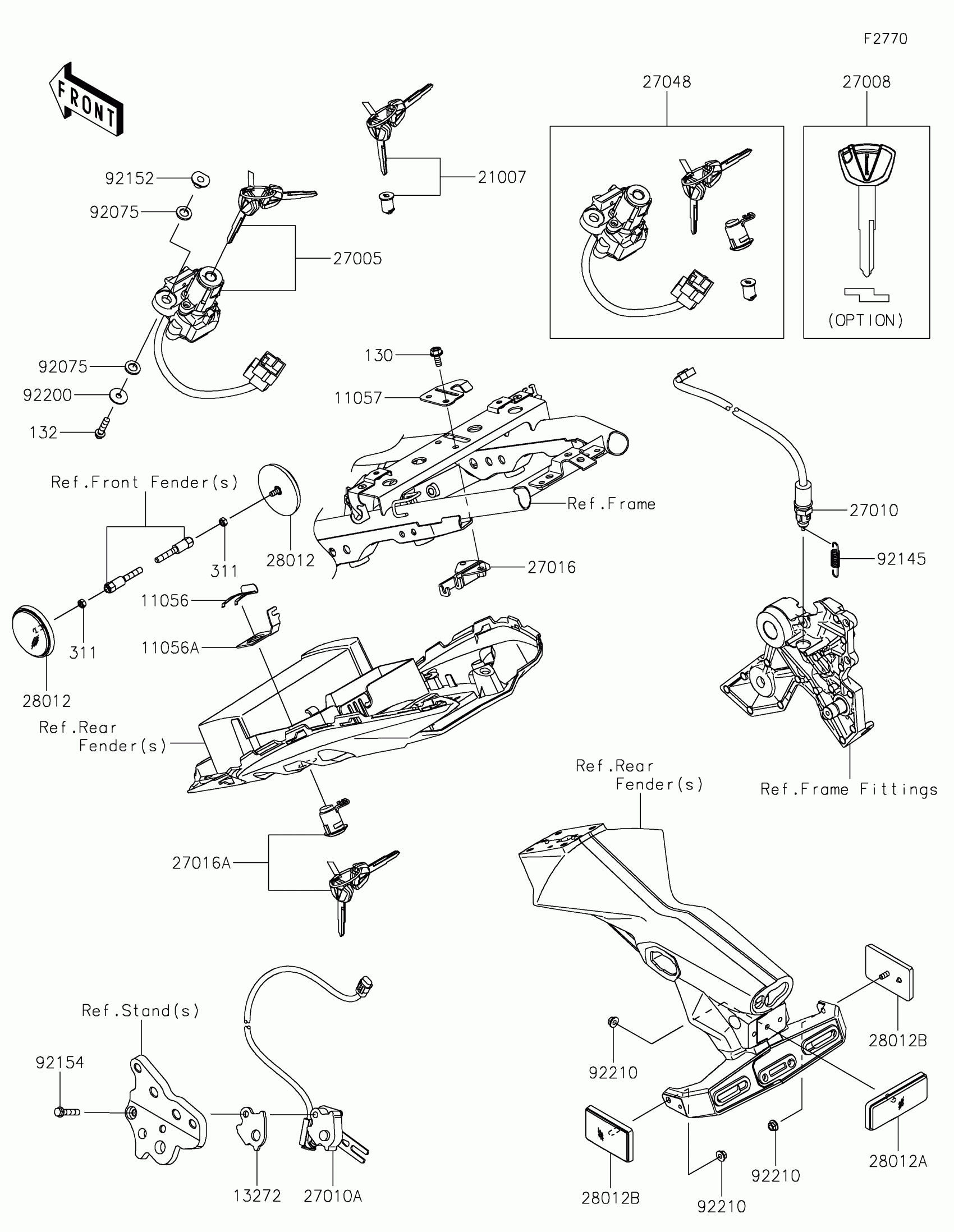

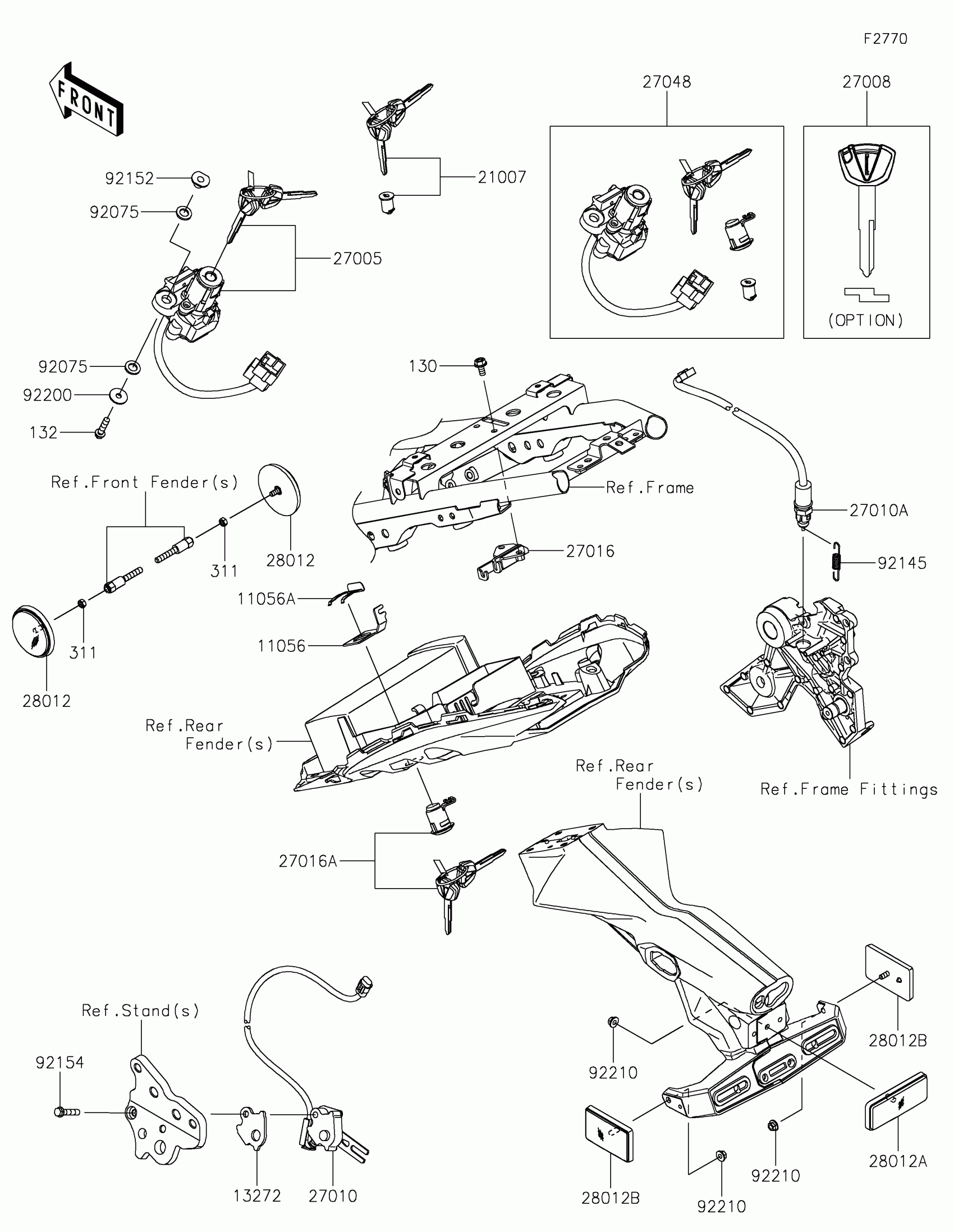

Kawasaki Z650 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.56

130

BOLT-FLANGED,6X12

130BA0612

$1.46

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

13272

PLATE

13272-1330

$2.83

21007

ROTOR,LOCK,TANK CAP

21007-5077

$126.11

27005

SWITCH-ASSY-IGNITION

27005-0624

$183.65

27008

KEY-LOCK,BLANK

27008-0596

$19.48

27010

SWITCH,SIDE STAND

27010-0845

$120.25

27010A

SWITCH,BRAKE

27010-0857

$25.46

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.14

27016A

LOCK-ASSY,SEAT

27016-5386

$92.11

27048

SWITCH-ASSY

27048-5113

$377.32

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$21.47

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$19.98

311

NUT-HEX,5MM

311AB0500

$0.47

92075

DAMPER

92075-1564

$4.17

92145

SPRING,REAR BRAKE

92145-0946

$4.42

92152

COLLAR,6X9X10.6

92152-1971

$11.44

92154

BOLT,FLANGED,6X30

92154-1040

$2.19

92200

WASHER,6X20X1.6

92200-0780

$1.10

92210

NUT,FLANGED,5MM

92210-0007

$2.20
