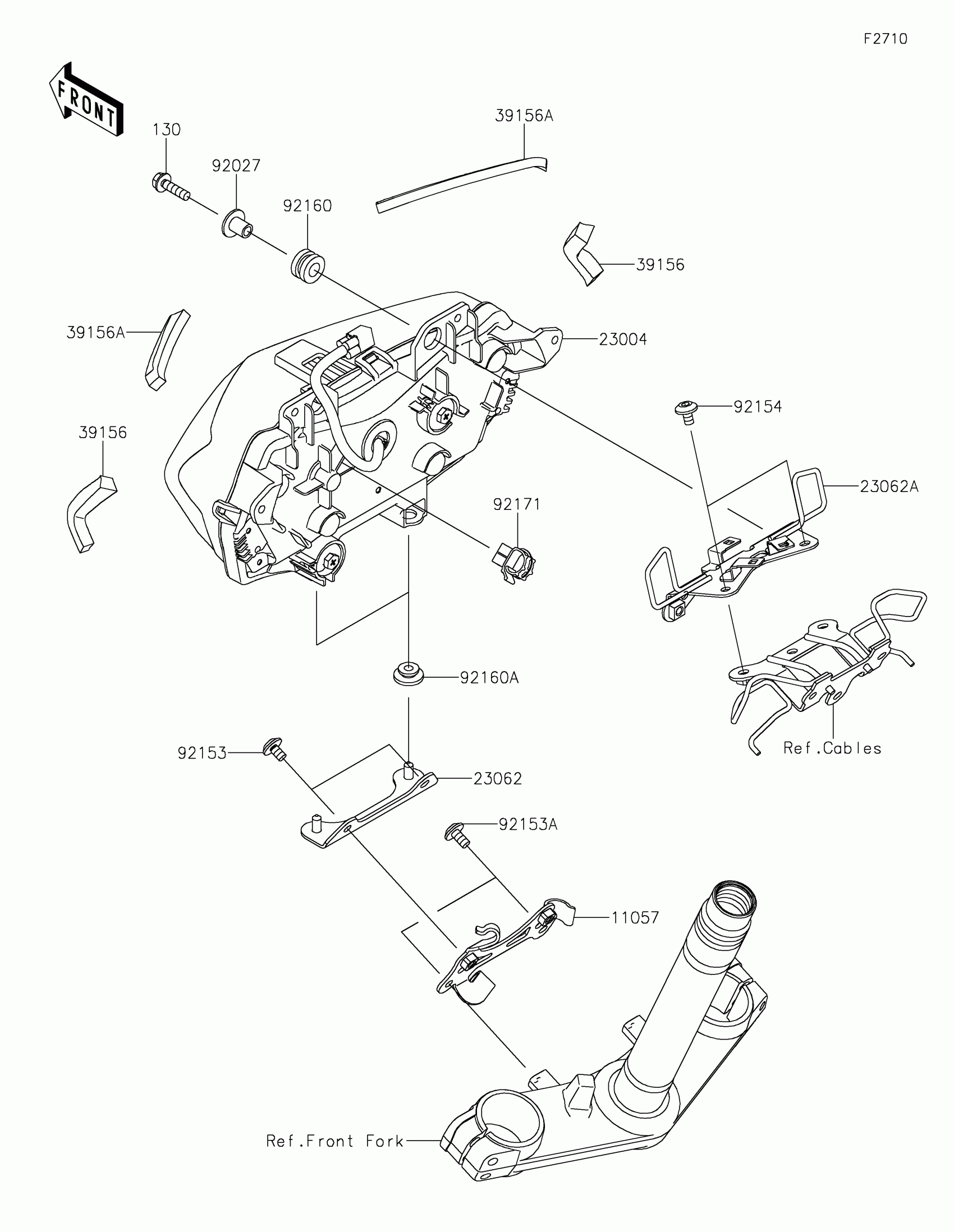

Kawasaki Z650 ABS Headlight(s) Diagram

Description

Price

11057

BRACKET,HEAD LAMP,UPP

11057-0142

$11.95

130

BOLT-FLANGED,6X22

130BA0622

$1.00

23007

LENS-COMP,HEAD LAMP

23007-0207

$407.49

23008

SOCKET-ASSY

23008-0177

$84.48

23062

BRACKET-COMP,HEAD LAMP,LWR

23062-0876

$20.19

39156

PAD,20X8X10

39156-1968

$0.98

49016

COVER-SEAL

49016-0642

$16.14

49016A

COVER-SEAL

49016-0646

$7.27

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92069

BULB,12V 60/55W,H4

92069-0050

$13.79

92069A

BULB,12V 5W

92069-1016

$4.88

92153

BOLT,SOCKET,6X12

92153-1948

$1.53

92160

DAMPER,10X20X12

92160-1167

$3.57

92160A

DAMPER

92160-1613

$2.84

92171

CLAMP,EDGE CLIP

92171-1722

$7.90

92192

TUBE,BREATHER

92192-1528

$5.81
