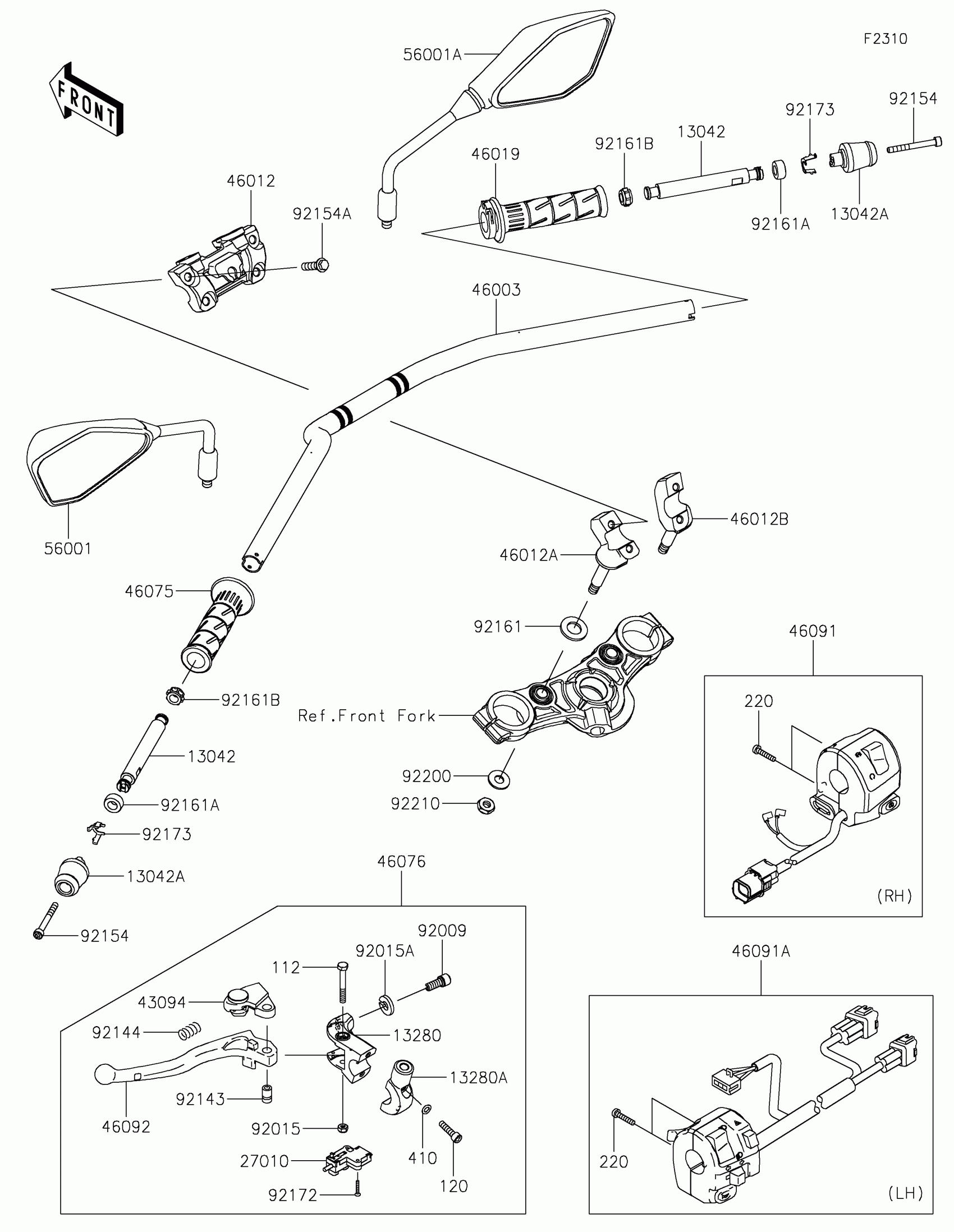

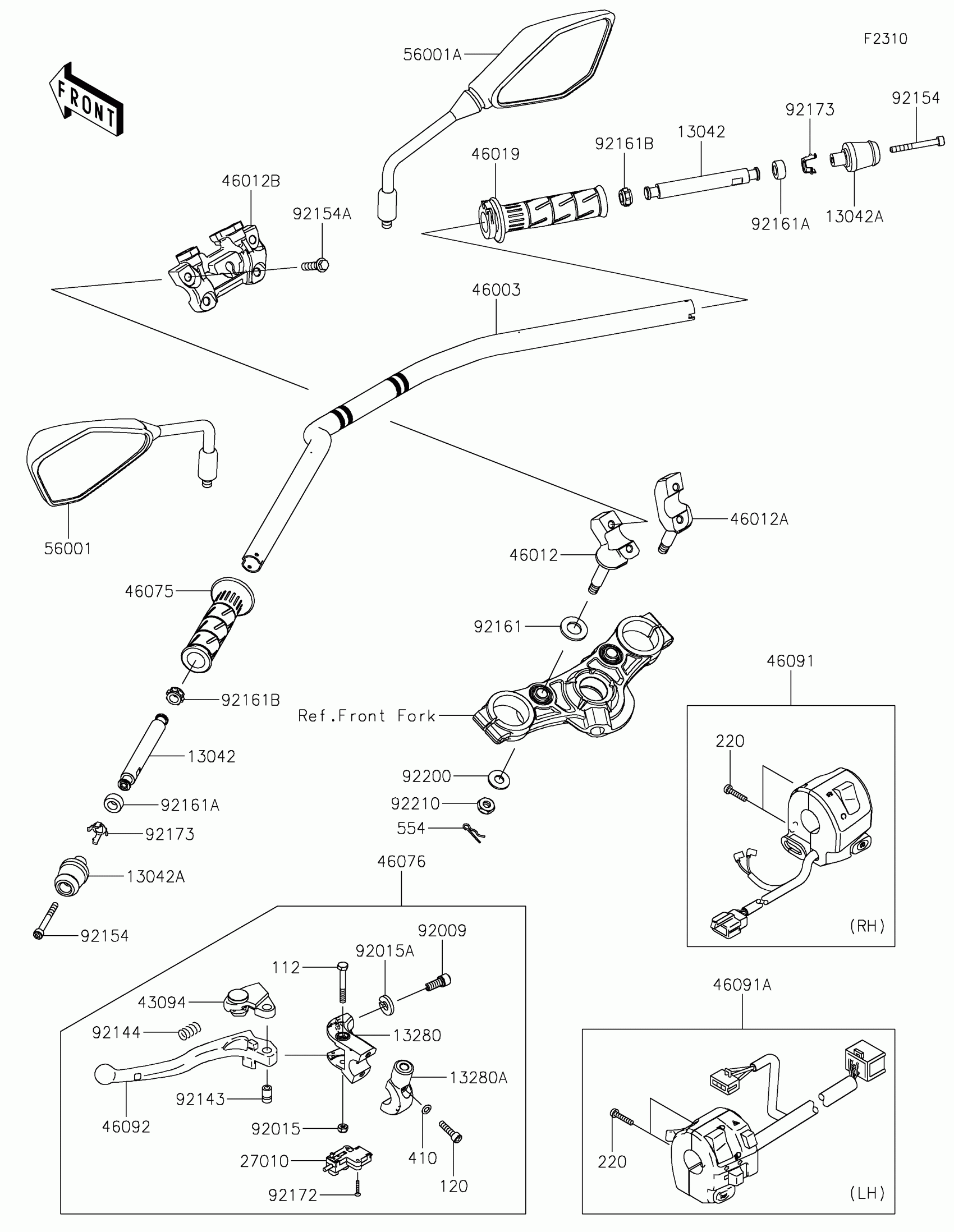

Kawasaki Z650 ABS Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X45

112BB0645

$3.74

120

BOLT-SOCKET,6X25

120CB0625

$2.62

13042

WEIGHT,HANDLE,INNER

13042-0752

$21.28

13042A

WEIGHT,HANDLE

13042-0753

$51.69

13280

HOLDER,CLUTCH LEVER

13280-0306

$53.68

13280A

HOLDER,CLUTCH LEVER

13280-0307

$36.45

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

27010

SWITCH,CLUTCH

27010-0849

$28.59

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$1.49

43094

ADJUSTER

43094-0009

$39.77

46003

HANDLE,F.S.BLACK

46003-0671-18R

$111.64

46012

HOLDER-HANDLE,LWR,LH,F.S.BLACK

46012-0303-18R

$38.30

46012A

HOLDER-HANDLE,LWR,RH,F.S.BLACK

46012-0304-18R

$38.30

46012B

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0374-18R

$158.85

46019

GRIP-ASSY,THROTTLE

46019-0060

$32.34

46075

GRIP,HANDLE,LH

46075-0564

$20.01

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0122

$110.23

46091

HOUSING-ASSY-CONTROL,RH

46091-0336

$183.00

46091A

HOUSING-ASSY-CONTROL,LH

46091-0337

$154.41

46092

LEVER-GRIP,CLUTCH

46092-0569

$25.63

554

PIN-SNAP

554DB0800

$1.49

56001

MIRROR-ASSY,LH

56001-0336

$83.70

56001A

MIRROR-ASSY,RH

56001-0337

$83.70

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92143

COLLAR

92143-1379

$9.51

92144

SPRING

92144-1467

$6.51

92154

BOLT,SOCKET,6X55

92154-1299

$2.75

92154A

BOLT,FLANGED,8X30

92154-2655

$2.00

92161

DAMPER

92161-0037

$1.86

92161A

DAMPER,10X20X10

92161-1850

$1.94

92161B

DAMPER,10X16X10,INNER

92161-1930

$1.49

92172

SCREW,3X16

92172-0183

$2.15

92173

CLAMP,WEIGHT

92173-1386

$3.02

92200

WASHER,10.5X24X2

92200-1844

$1.49

92210

NUT,LOCK,10MM

92210-0784

$5.98
