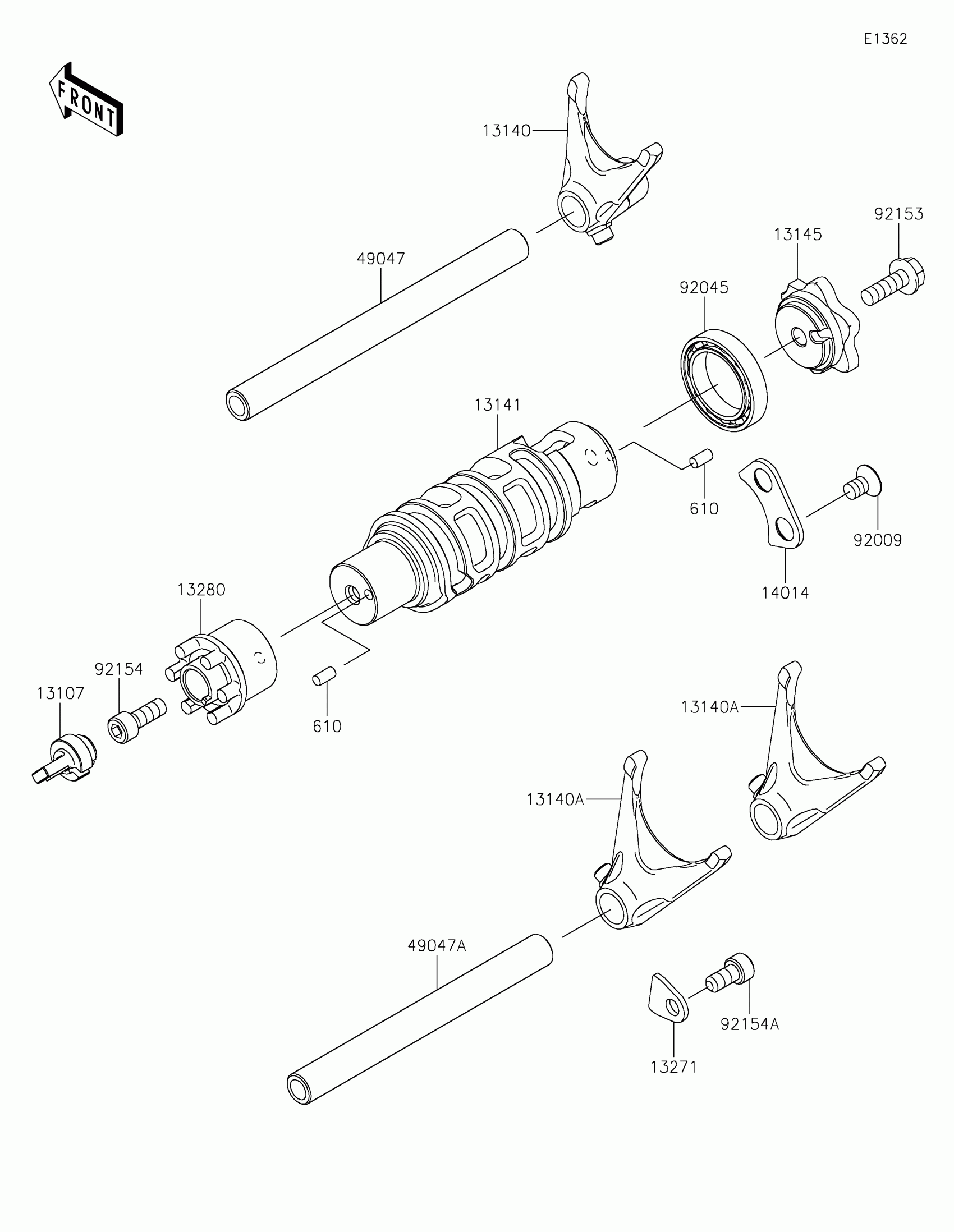

Kawasaki Z650 ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13107

SHAFT

13107-0843

$18.53

13140

FORK-SHIFT,INPUT

13140-0025

$106.04

13140A

FORK-SHIFT,OUTPUT

13140-0026

$106.04

13141

DRUM-CHANGE

13141-0568

$86.21

13145

CAM-CHANGE DRUM

13145-0567

$39.98

13271

PLATE

13271-0626

$2.71

13280

HOLDER

13280-0875

$100.95

14014

PLATE-POSITION

14014-0018

$4.95

49047

ROD-SHIFT,INPUT

49047-0631

$29.86

49047A

ROD-SHIFT,OUTPUT

49047-0632

$29.86

610

ROLLER,4X8

610A0408

$3.29

92009

SCREW,6X10

92009-1375

$3.53

92045

BEARING-BALL,6805

92045-1122

$39.92

92153

BOLT,FLANGED,6X18

92153-0958

$2.15

92154

BOLT,SOCKET,6X16

92154-0484

$1.44

92154A

BOLT,SOCKET,6X12

92154-0812

$4.95
