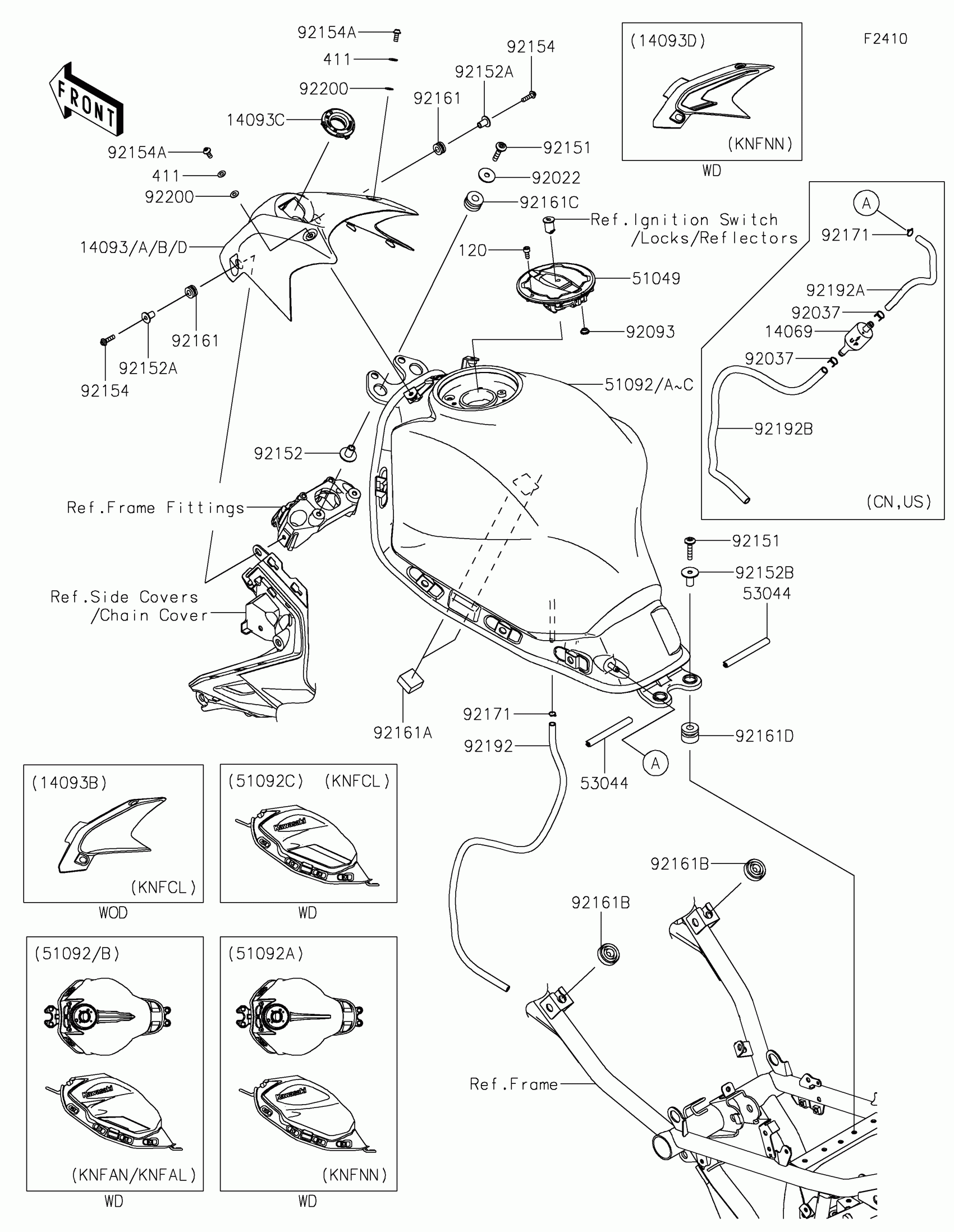

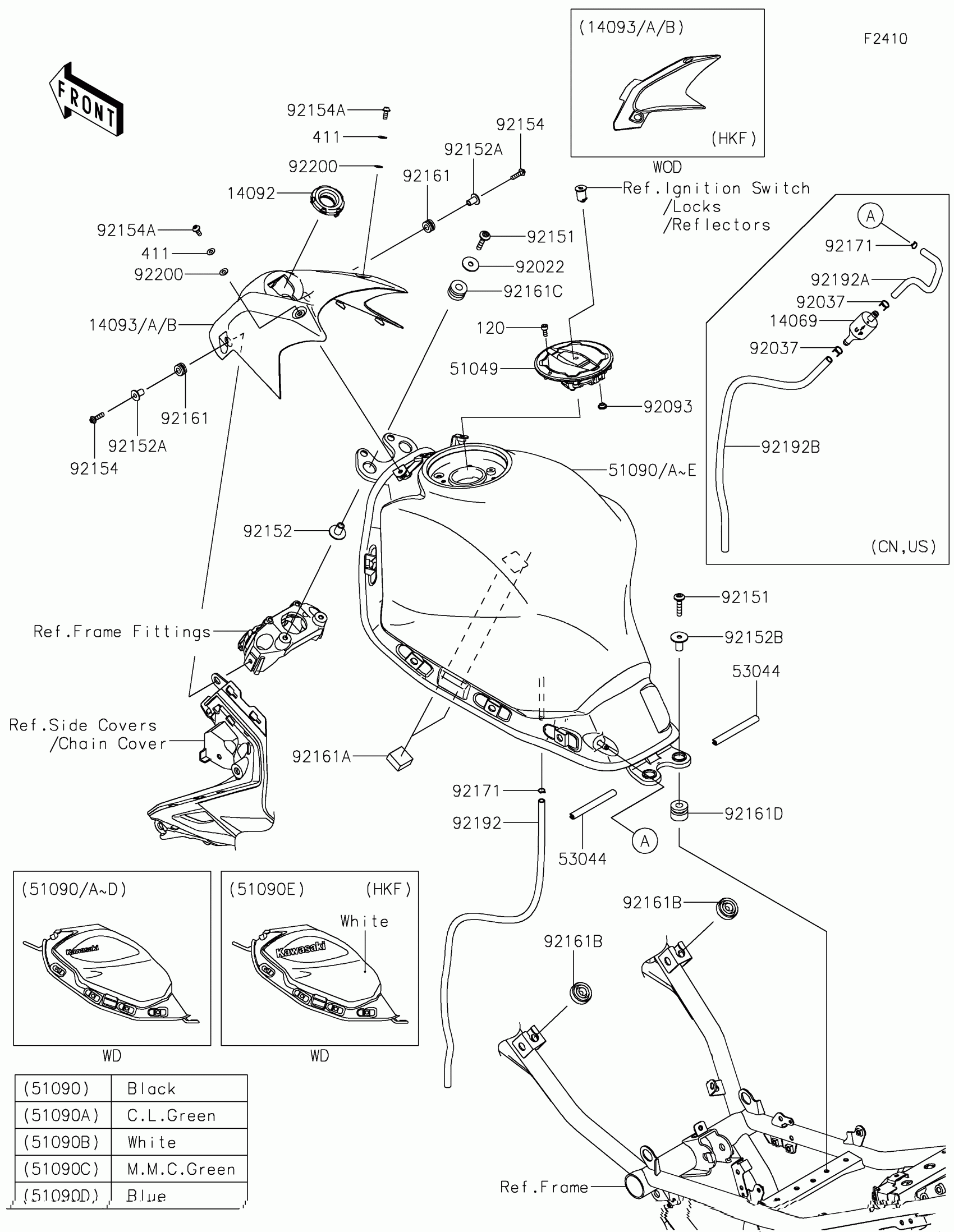

Kawasaki Z650 ABS Fuel Tank Diagram

#

Description
Price

14092

COVER,IGNITION SW.

14092-1033

$3.82

14093

COVER,TANK,P.S.GRAY

14093-0483-36S

$186.73

14093A

COVER,TANK,M.S.BLACK

14093-0483-660

$178.39

51049

CAP-TANK

51049-0735

$139.17

51090

TANK-COMP-FUEL,M.F.S.BLACK

51090-5054-739

$986.95

51090D

TANK-COMP-FUEL,S.C.BLUE

51090-5332-62K

$986.95

51090E

TANK-COMP-FUEL,P.F.S.WHITE

51090-5338-40X

Unavailable

53044

TRIM,L=85

53044-0556

$9.56

92022

WASHER,7X24X1.6

92022-228

$2.99

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR,6.5X10X17.6

92152-1655

$1.24

92152A

COLLAR,5.6X16X14.2

92152-2229

$1.90

92152B

COLLAR,6.5X10X21.1

92152-2325

$3.29

92154

BOLT,SOCKET,5X20

92154-0210

$1.54

92154A

BOLT,SOCKET,5X12

92154-1421

$0.81

92161

DAMPER,8X16X8.6

92161-0685

$4.96

92161A

DAMPER,T=13

92161-0792

$3.27

92161B

DAMPER,14X30X10

92161-1368

$1.93

92161C

DAMPER,10X24X15

92161-1482

$3.27

92161D

DAMPER,10X24X19

92161-1929

$1.81

92171

CLAMP,8X0.7

92171-1973

$1.04

92192

TUBE,6X9X620

92192-1085

$12.73

120

BOLT-SOCKET,5X12

120CA0512

$1.19

411

WASHER-PLAIN,5MM

411AA0500

$0.51

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

14069

BREATHER,FUEL TANK

14069-1004

$7.76

92037

CLAMP,TUBE

92037-147

$5.61

92171

CLAMP,8X0.7

92171-1973

$1.04

92192A

TUBE,6X9X173/35

92192-1702

$7.27

92192B

TUBE,7X10.5X480

92192-1724

$4.86
