Description

Price

11057

BRACKET,IG. SWITCH

11057-0079

$58.76

11057A

BRACKET,STEP STAY,LH

11057-0476

$5.34

11057B

BRACKET,STEP STAY,RH

11057-0477

$4.26

14093

COVER,STEP,LH,B.SILVER

14093-0480-54N

$50.04

14093A

COVER,STEP,RH,B.SILVER

14093-0623-54N

$50.04

35063

STAY,STEP,FR,LH,F.S.BLACK

35063-1348-18R

$220.98

35063A

STAY,STEP,FR,RH,F.S.BLACK

35063-1349-18R

$220.98

35063B

STAY,STEP,RR,LH,F.S.BLACK

35063-1350-18R

$252.84

35063C

STAY,STEP,RR,RH,F.S.BLACK

35063-1351-18R

$252.84

36001

COVER-SIDE,LH

36001-0642

$53.92

36001A

COVER-SIDE,RH

36001-0643

$53.92

55020

GUARD,HEEL,LH

55020-1956

$41.85

55020A

GUARD,HEEL,RH

55020-1957

$41.85

92055

RING-O,62.6X3.5

92055-0873

$3.89

92066

PLUG

92066-0096

$2.95

92075

DAMPER

92075-277

$1.90

92150

BOLT,SOCKET,8X20

92150-1760

$4.93

92151

BOLT,SOCKET,10X20

92151-1557

$1.98

92151A

BOLT,SOCKET,6X14

92151-1654

$1.24

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,TORX,8X35

92154-0730

$5.79

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92210

NUT,PLATE,5MM

92210-0935

$1.44

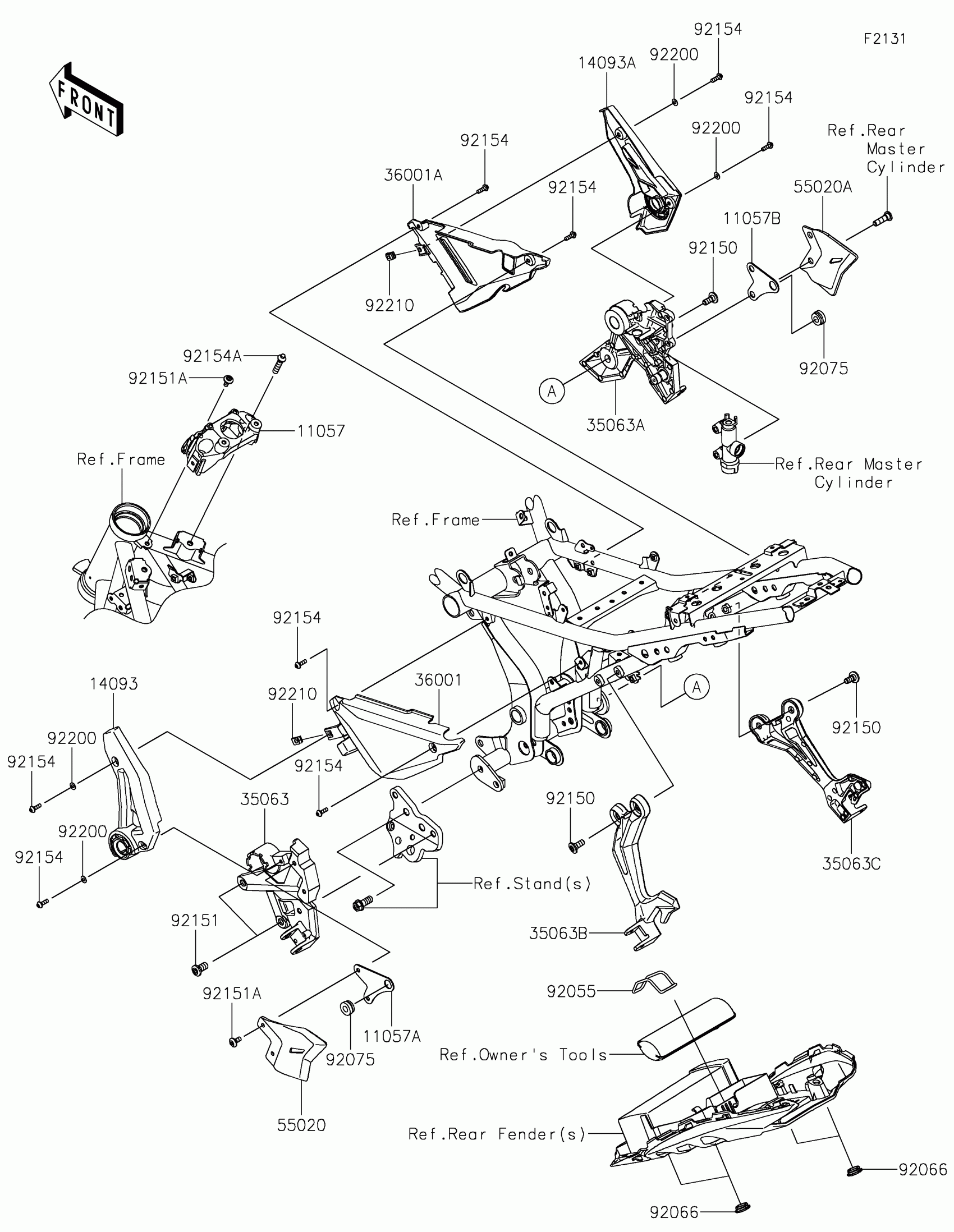

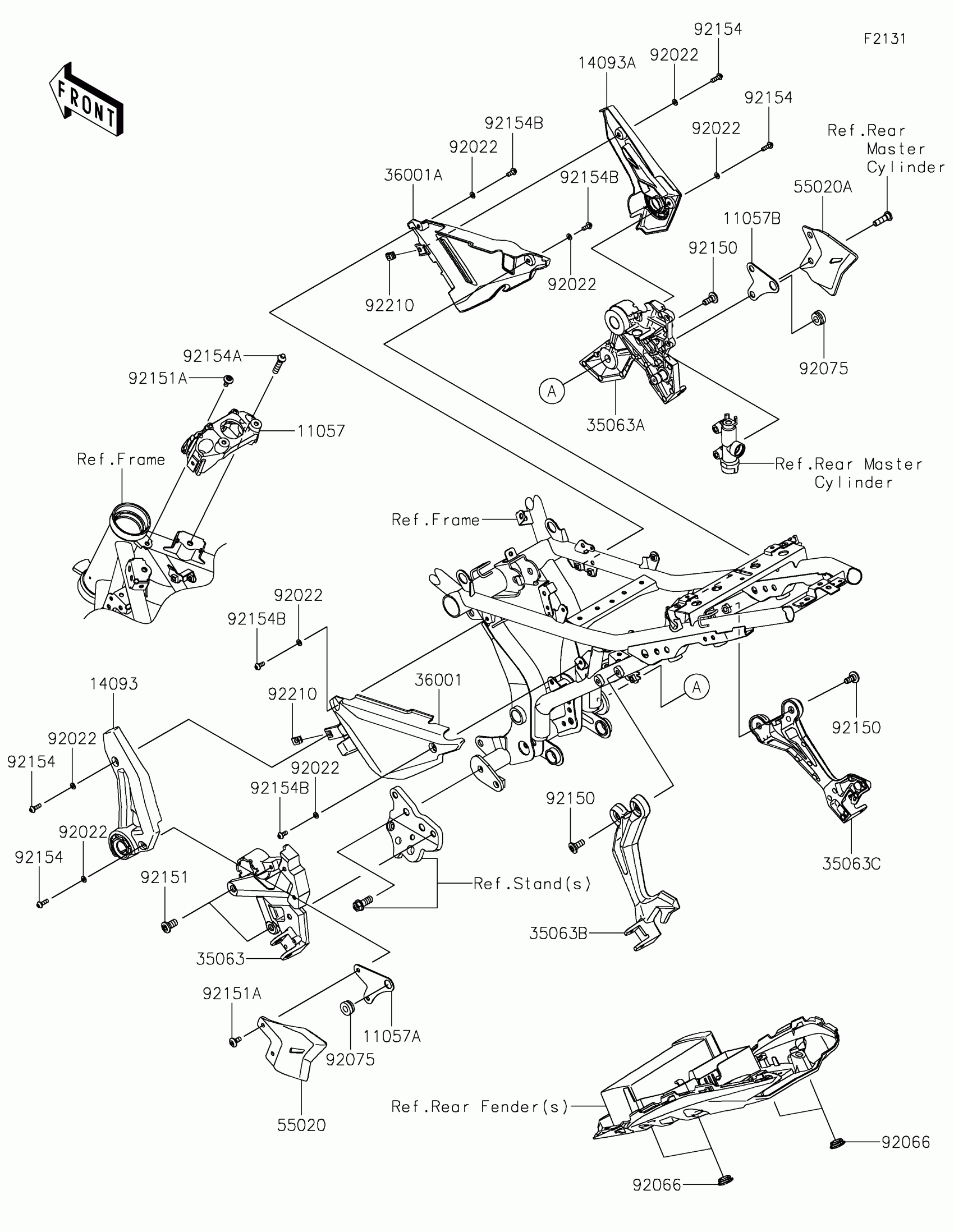

Kawasaki Z650 ABS Frame Fittings Diagram
