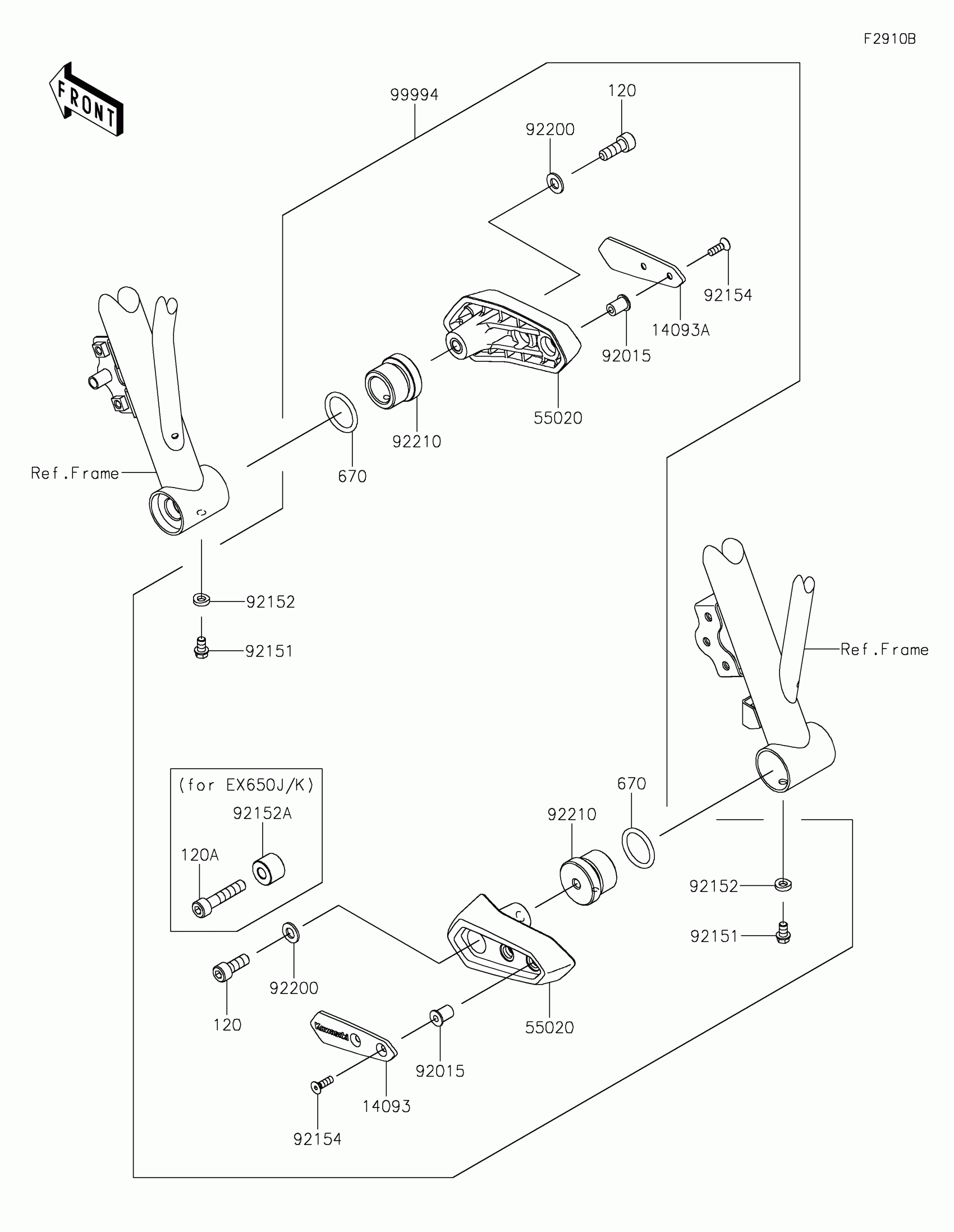

Kawasaki Z650 ABS Accessory(Frame Slider) Diagram

Description

Price

14093

COVER,SLIDER,LH

14093-0350

$89.41

14093A

COVER,SLIDER,RH

14093-0351

$89.41

55020

GUARD

55020-1997

$142.02

92015

NUT,WELL,5MM

92015-1757

$7.29

92151

BOLT,6X10

92151-1277

$1.58

92152

COLLAR,6.3X12

92152-2236

$3.02

92152A

COLLAR,8.3X20X15

92152-2237

$7.32

92154

BOLT,SOCKET,5X16

92154-1014

$0.85

92200

WASHER,8.4X16X1.6

92200-0807

$4.41

92210

NUT

92210-1505

$20.92

99994

KIT-ACCESSORY,FRAME SLIDER

99994-0797

$273.05

120

BOLT-SOCKET,8X22

120CA0822

$4.85

120A

BOLT-SOCKET,8X40

120CA0840

$2.80

670

O RING,26MM

670B3026

$5.11
