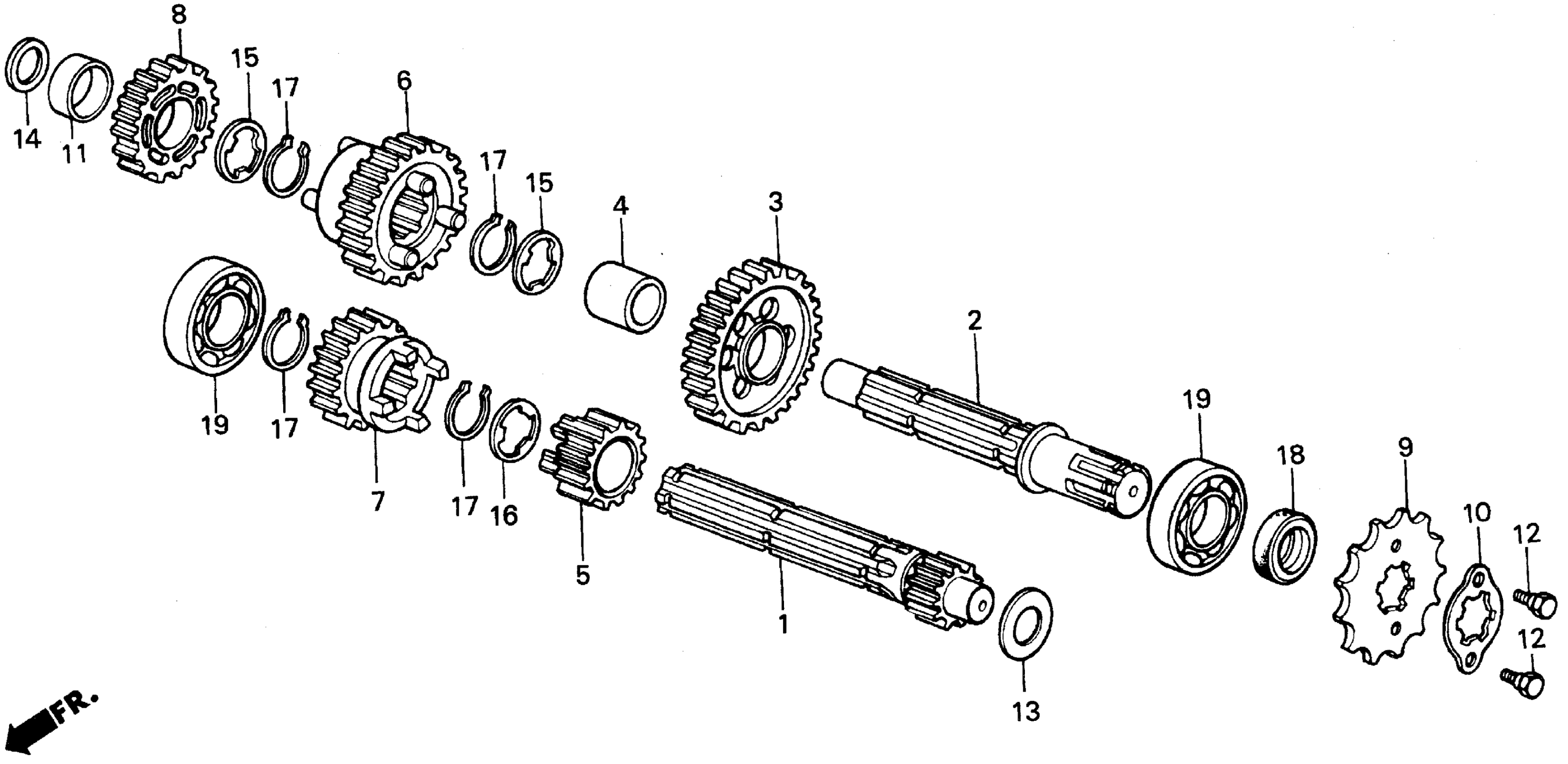

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23421-086-020

Unavailable

4

COLLAR, COUNTERSHAFT LOW GEAR

23422-041-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23431-171-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T)

23441-086-010

Unavailable

7

GEAR, MAINSHAFT THIRD (21T)

23471-041-050

Unavailable

8

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

9

SPROCKET, DRIVE (14T)

23801-178-000

$16.40

10

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

11

COLLAR, GEAR

23911-041-020

Unavailable

12

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

13

WASHER, THRUST (14MM)

90451-121-000

$1.87

14

WASHER, THRUST (13.5MM)

90451-141-000

$12.84

15

WASHER, SPLINE (17MM)

90461-035-000

$2.57

16

WASHER B, SPLINE (17MM)

90462-035-000

Unavailable

17

CIRCLIP, OUTER (17MM)

90601-001-000

$1.49

18

OIL SEAL (17X29X5) (NOK)

91203-GBG-900

$6.99

18

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-761.

91203-GBG-900

$6.99

19

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
