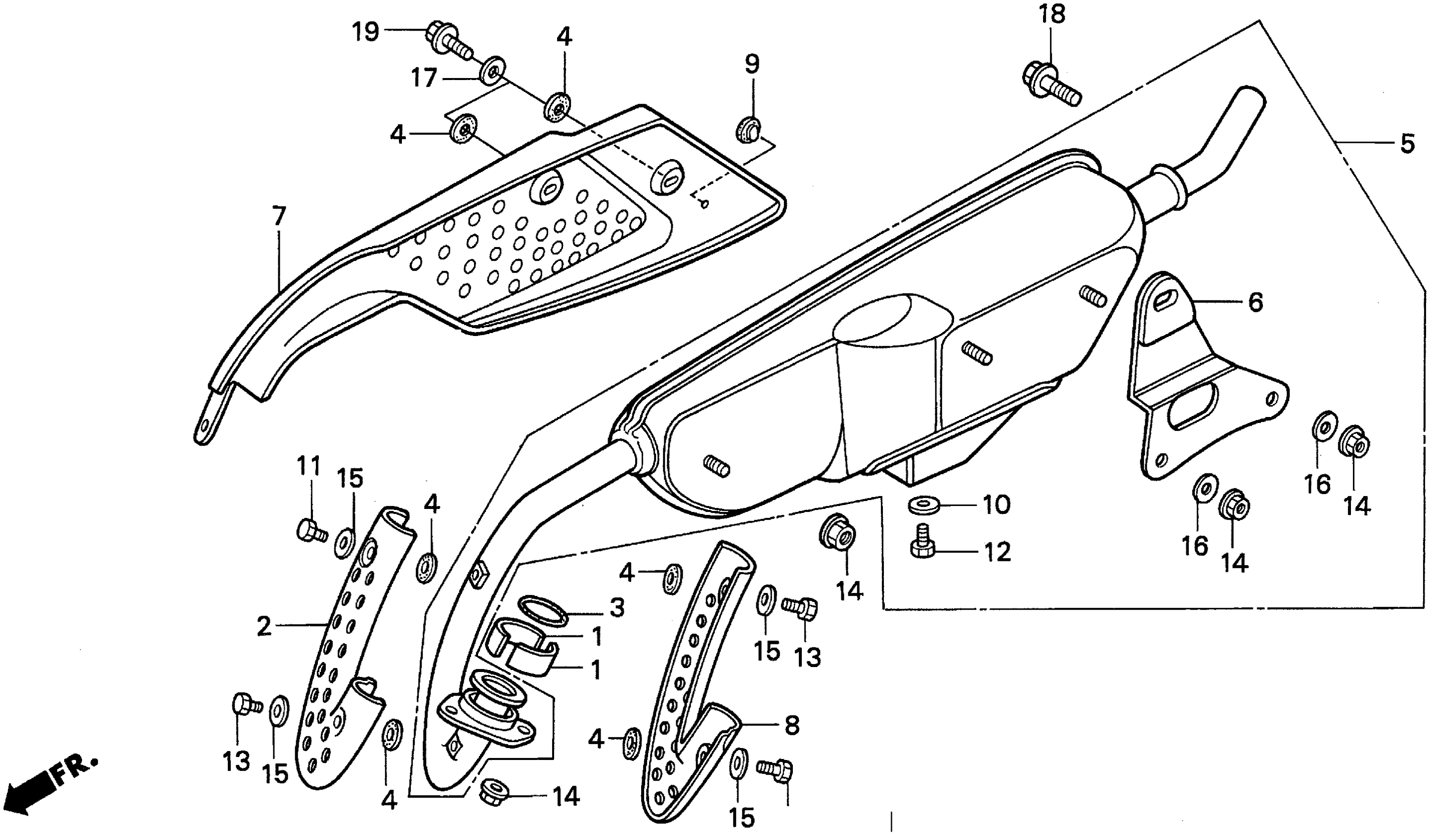

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-051-000

$2.56

2

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18240-GCF-305ZA.

18240-165-600ZA

$24.49

2

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK)

18240-165-600ZA

$24.49

3

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, PROTECTOR

18292-KBR-000

$3.45

5

MUFFLER, EX.

18300-GW8-680

Unavailable

6

STAY, MUFFLER HANGER *NH83L* (OFF BLACK) (NOT AVAILABLE) This part replaces 18353-120-000.

18353-120-000CT

Unavailable

7

PROTECTOR, MUFFLER (NOT AVAILABLE)

18360-GW8-770

Unavailable

8

COVER B, EX. PIPE *NH106* (COO) (HEATPROOF BLACK)

18450-GCF-305ZA

$15.46

8

COVER B, EX. PIPE *NH106* (COO) (HEATPROOF BLACK) This part replaces 18450-181-000ZC.

18450-GCF-305ZA

$15.46

9

STOPPER, RADIATOR

19055-GS2-000

Unavailable

10

WASHER, OIL BOLT

90545-300-000

$3.99

11

BOLT, HEX. (5X8)

92101-05008-0G

Unavailable

12

BOLT, HEX. (10X12)

92101-10012-0G

Unavailable

13

BOLT, HEX. (5X6)

93301-05006-0G

Unavailable

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

WASHER, PLAIN (5MM)

94101-05700

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06700

$1.49

18

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

19

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
