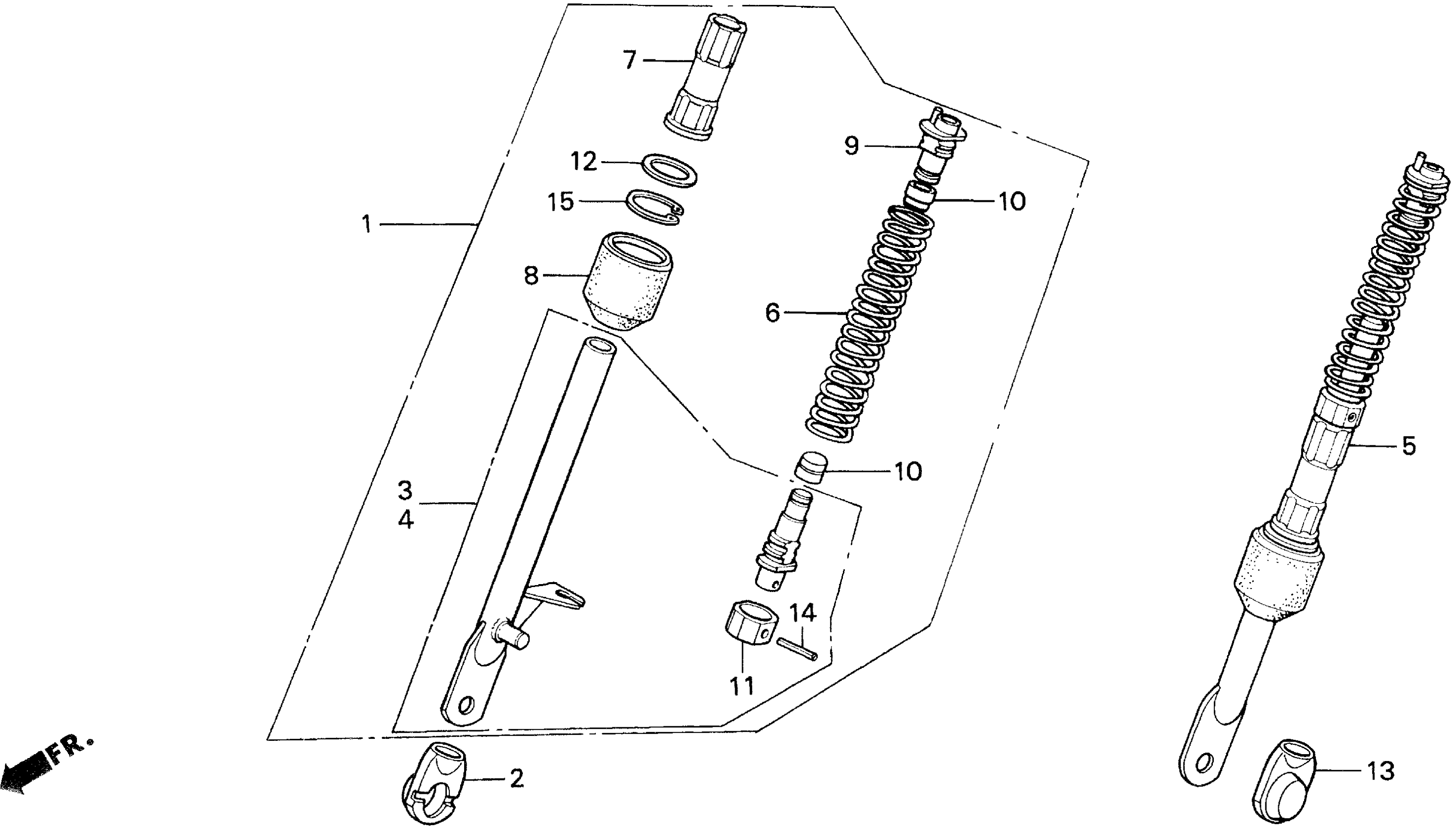

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 FRONT FORK (2) Diagram

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-165-600

Unavailable

COVER, R. FR. FORK

51411-GW8-670

Unavailable

PIPE, R. FR. FORK SLIDE

51450-165-600

Unavailable

PIPE, L. FR. FORK SLIDE HALF

51460-165-000

$121.57

PIPE, L. FR. FORK SLIDE HALF This part replaces 51460-165-600.

51460-165-000

$121.57

FORK ASSY., L. FR.

51500-165-000

$133.10

SPRING, FR. FORK

51501-120-000

$25.30

GUIDE, FR. FORK PIPE

51502-045-670

$16.83

DUST SEAL, FR. FORK

51503-165-003

$12.06

HOLDER, SPRING (UPPER)

51504-165-000

$23.12

RUBBER, FR. FORK STOPPER

51506-064-020

$2.92

PISTON, SLIDE PIPE

51507-098-000

$11.20

RING, BACK-UP

51507-165-000

$3.95

COVER, L. FR. FORK

51511-GW8-670

Unavailable

PIN, SPRING

51526-098-000

$2.92

CIRCLIP (INNER) (34MM)

94520-34000

$1.49
