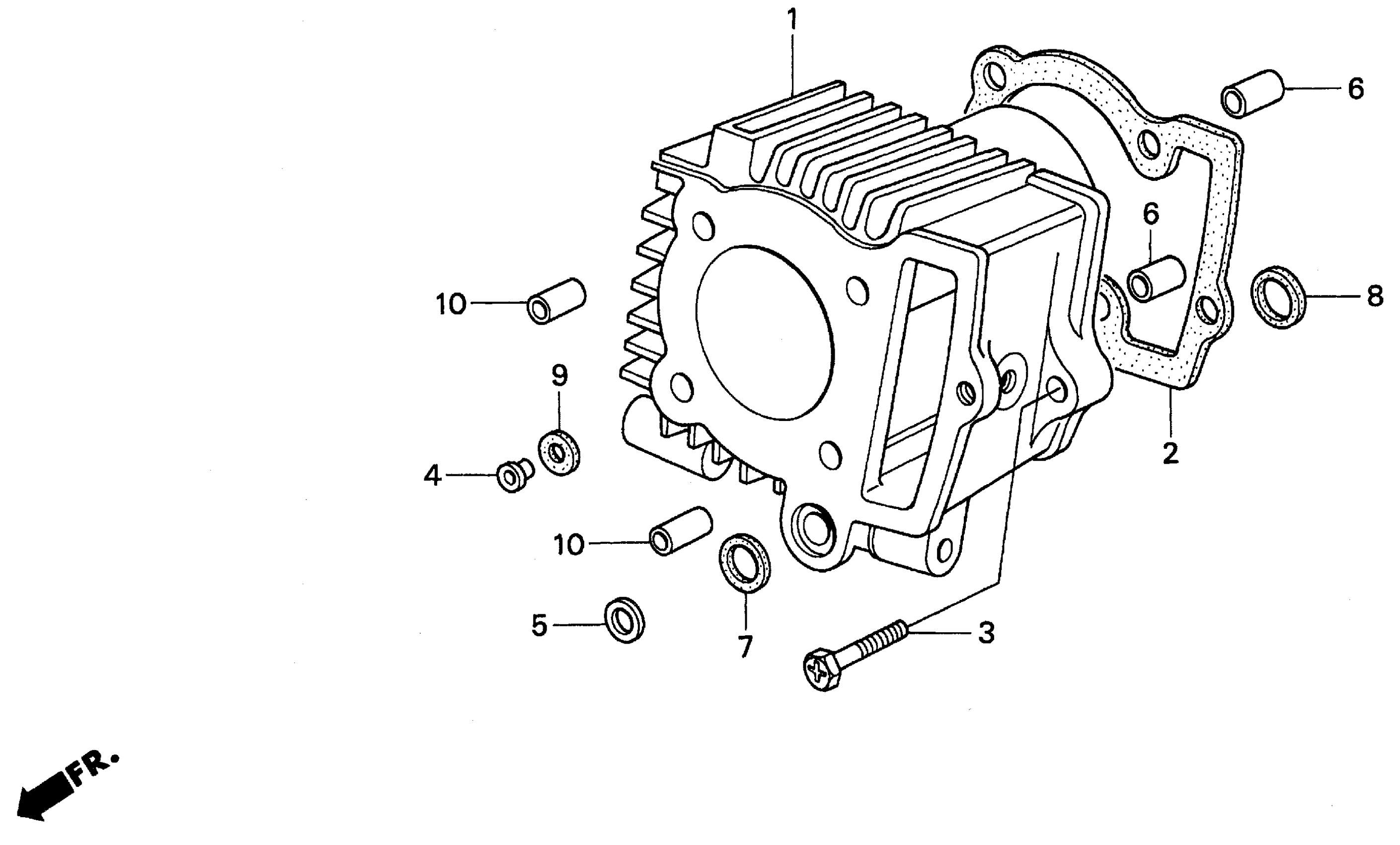

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12101-GB2-000

$157.35

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$7.96

2

GASKET, CYLINDER This part replaces 12191-GW8-682.

12191-GW8-683

$7.96

3

BOLT (6MM)

90082-035-010

$2.17

5

COLLAR (14.8MM)

90603-GB0-911

$2.88

6

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.09

6

PIN A, DOWEL (8X12)

94301-08120

$2.09

7

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.22

7

O-RING (14.5MM)

91301-GF6-003

$6.22

8

GASKET, RUBBER (16MM)

91303-035-000

$4.54

10

PIN, DOWEL (8X14)

94301-08140

$2.04
