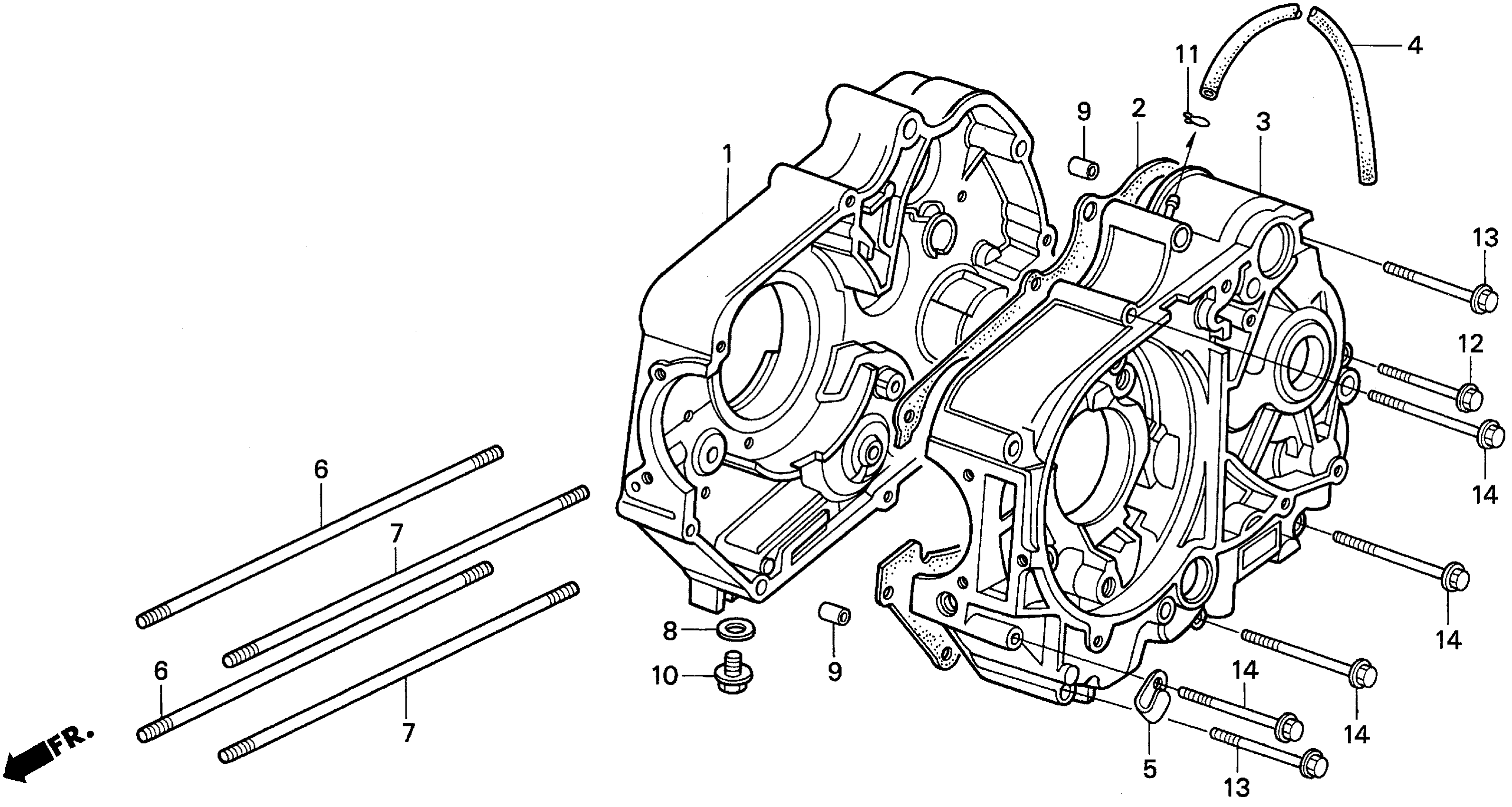

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE, R. This part replaces 11100-GB4-010.

11100-GEL-A80

$276.26

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L.

11200-GW8-670

$331.15

4

TUBE, BREATHER (5X320)

15761-087-611

Unavailable

5

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

6

BOLT A, CYLINDER STUD (196MM)

90031-035-010

$5.46

7

BOLT B, CYLINDER STUD (188MM)

90032-035-000

$5.46

8

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

9

PIN A, DOWEL (10X14)

94301-10140

$2.28

9

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

10

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

11

CLIP, TUBE (C9)

95002-50000

$1.49

12

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

13

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

14

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
