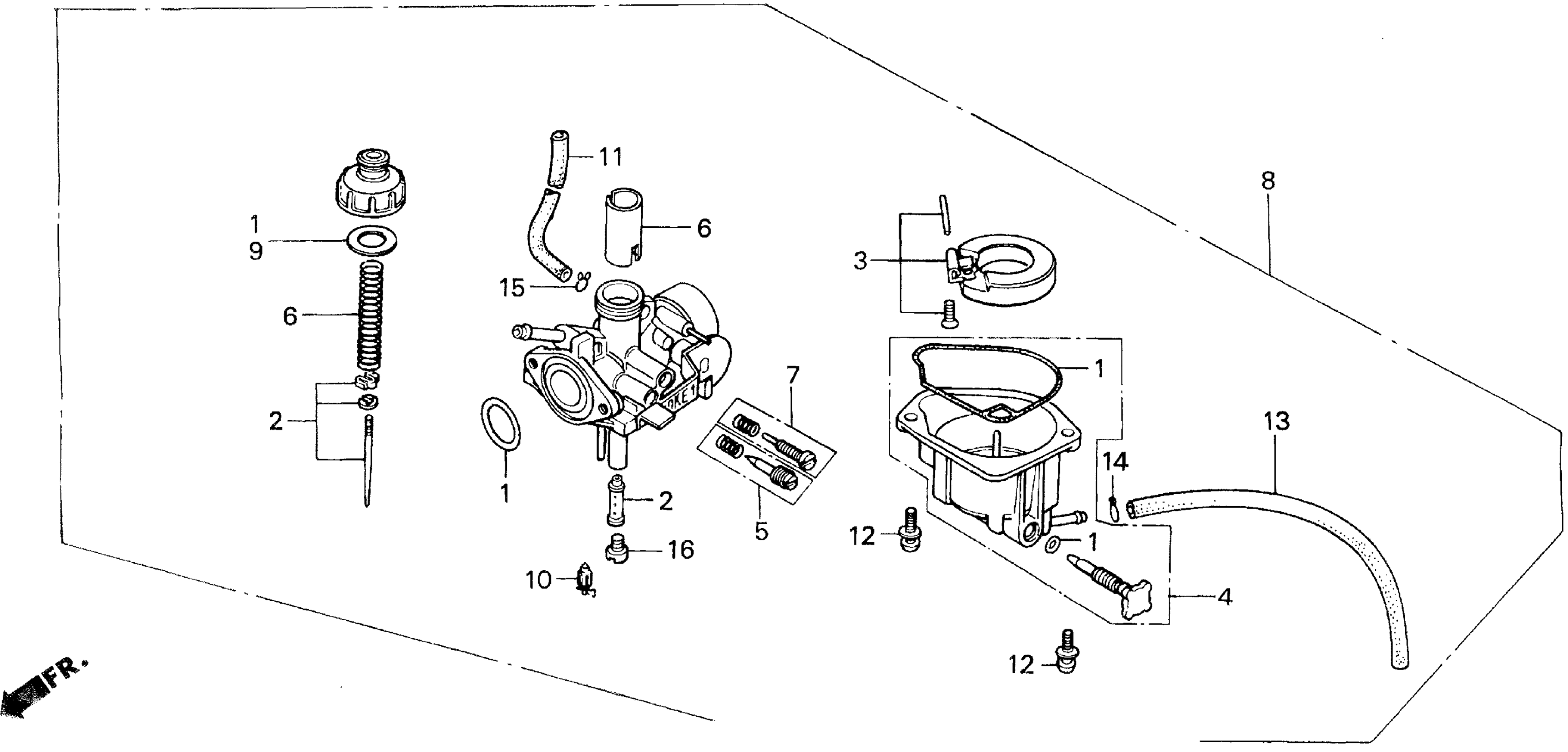

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-181-305

$20.43

1

GASKET SET This part replaces 16010-181-831.

16010-181-305

$20.43

2

NEEDLE SET, JET

16012-GW8-680

Unavailable

3

FLOAT SET

16013-147-004

$44.62

4

CHAMBER SET, FLOAT

16015-099-691

$95.92

5

SCREW SET

16016-GW8-672

Unavailable

6

VALVE SET, THROTTLE This part replaces 16022-GW8-671.

16022-GW8-672

$38.24

6

VALVE SET, THROTTLE

16022-GW8-672

$38.24

7

SCREW SET B

16028-GC8-004

$16.35

8

CARBURETOR ASSY. (PA03M A)

16100-GW8-305

Unavailable

8

CARBURETOR ASSY. (PA03M A) This part replaces 16100-GW8-682.

16100-GW8-305

Unavailable

8

CARBURETOR ASSY. (PA03M A) This part replaces 16100-GW8-792.

16100-GW8-305

Unavailable

9

GASKET, TOP

16110-181-831

$4.92

10

VALVE, FLOAT

16155-883-005

$20.11

11

TUBE, AIR VENT

16199-GW8-680

Unavailable

12

SCREW-WASHER (4X12)

93892-04012-08

$1.49

12

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

13

BULK HOSE, FUEL (3.5X3000) (3.5X180)

95001-35003-60M

$20.85

14

CLIP, TUBE (B7)

95002-02070

$1.80

15

CLIP, TUBE (B8)

95002-02089

$1.49

16

JET, MAIN (#58)

99101-187-0580

$8.08
