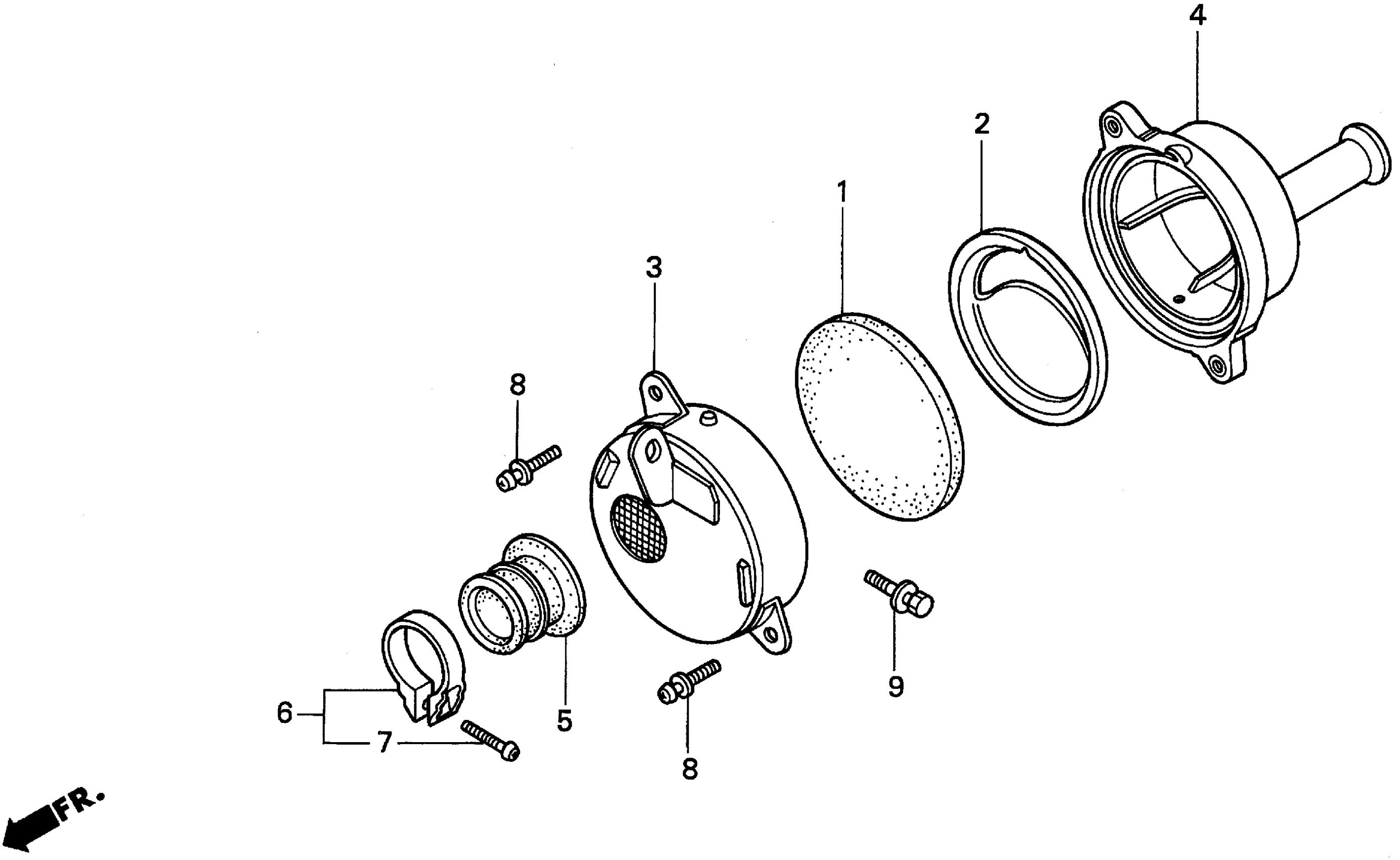

Honda Z50RA (99) MOTORCYCLE, JPN, VIN# JH2AB020-XK800001 AIR CLEANER Diagram

#

Description

Price

1

ELEMENT, AIR CLEANER

17211-165-730

$4.93

2

PLATE, AIR CLEANER BAFFLE

17212-GW8-670

$9.18

3

HOUSING, AIR CLEANER This part replaces 17221-GW8-670.

17221-165-000

$42.26

3

HOUSING, AIR CLEANER

17221-165-000

$42.26

4

COVER, AIR CLEANER

17231-GW8-770

$22.73

4

COVER, AIR CLEANER This part replaces 17231-165-010.

17231-GW8-770

$22.73

5

TUBE, AIR CLEANER

17253-GW8-670

$9.24

6

BAND, CARBURETOR INSULATOR

17256-KG4-000

$12.38

7

SCREW, PAN (4X20)

93500-04020-0A

$1.49

8

SCREW-WASHER (5X12)

93892-05012-07

$1.49

9

BOLT, GROUND (6X16)

90149-SE0-003

$7.20
