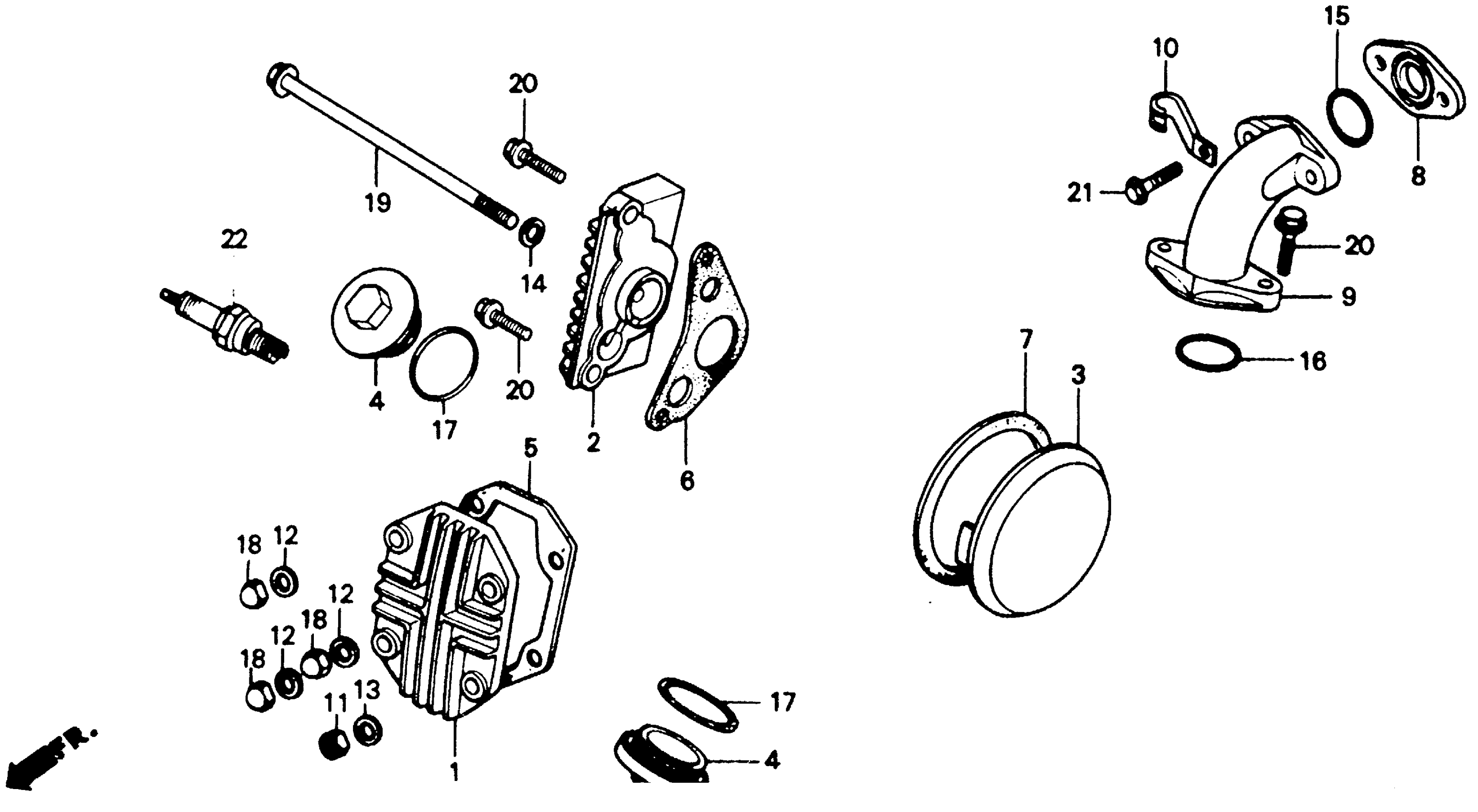

Honda Z50RA (93) MOTORCYCLE, JPN, VIN# JH2AB020-PK200001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12301-086-000

$28.23

2

COVER, R. CYLINDER HEAD SIDE

12331-GB0-910

$29.36

3

COVER, L. CYLINDER HEAD SIDE

12341-GB6-910

$22.47

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680.

12391-KVM-C20

$4.15

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-681.

12391-KVM-C20

$4.15

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-680.

12394-GW8-682

$4.17

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-681.

12394-GW8-682

$4.17

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680.

12395-GW8-682

$4.94

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-681.

12395-GW8-682

$4.94

8

INSULATOR, CARBURETOR

16211-181-750

$10.30

9

PIPE, INLET

17111-165-620

$50.13

11

NUT, HEX. (6MM)

90230-087-000

$1.80

12

WASHER, SEALING (6MM)

90442-035-000

$2.21

13

WASHER A, SEALING (6MM)

90443-035-000

$3.65

14

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

14

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

15

O-RING (18X1.9)

91301-GA7-720

$2.99

16

O-RING (27X2.0) (ARAI)

91301-GK4-871

$3.97

17

O-RING (30.8MM)

91302-001-020

$3.75

18

NUT, CAP (6MM)

94021-06200-0S

$1.62

19

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

20

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

21

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

22

SPARK PLUG (U20FSR-U) (DENSO)

98056-56726

$2.54

22

SPARK PLUG (CR5HSA) (NGK) | (Optional).

98056-55718

$2.62

22

SPARK PLUG (U16FSR-U) (DENSO) | (Optional).

98056-55726

$2.54

22

SPARK PLUG (CR6HSA) (NGK)

98056-56718

$2.62

22

SPARK PLUG (CR7HSA) (NGK) | (Optional).

98056-57718

$2.62

22

SPARK PLUG (U22FSR-U) (DENSO) | (Optional).

98056-57726

$2.54
