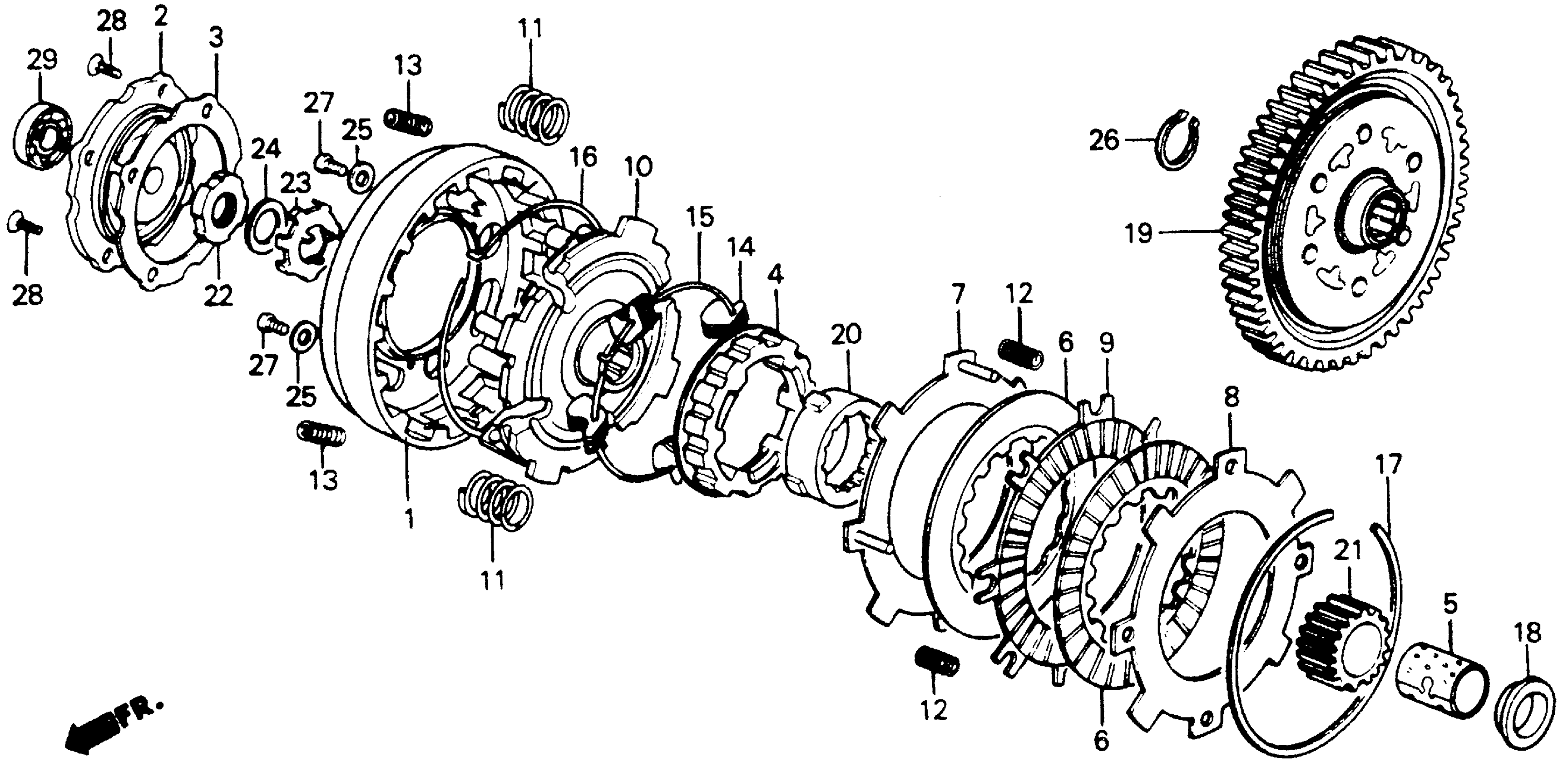

Honda Z50RA (93) MOTORCYCLE, JPN, VIN# JH2AB020-PK200001 CLUTCH 88-93 Diagram

#

Description
Price

1

CLUTCH OUTER

22101-178-000

$53.56

2

COVER, CLUTCH (OUTER) This part replaces 22111-178-000.

22111-178-010

$10.98

2

COVER, CLUTCH (OUTER)

22111-178-010

$10.98

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-GW8-680.

22119-GW8-682

$2.92

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-GW8-681.

22119-GW8-682

$2.92

4

CENTER, CLUTCH (17T)

22120-040-030

$72.13

5

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

6

DISK A, CLUTCH FRICTION

22201-GW8-681

$10.04

7

PLATE A, CLUTCH

22310-GB0-910

$14.59

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

DISK B, CLUTCH FRICTION

22331-GW8-681

$10.04

10

PLATE, DRIVE

22351-GB2-710

$61.70

11

SPRING, CLUTCH

22401-GW8-670

$4.20

12

SPRING, CLUTCH FREE

22411-092-010

$2.25

13

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

14

WEIGHT, CLUTCH

22531-178-000

$1.80

15

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

16

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

17

SET-RING (102MM)

22901-001-000

$4.02

18

COLLAR (17MM)

22911-GB4-680

$6.74

19

GEAR, PRIMARY DRIVEN (69T)

23110-086-030

$133.18

20

OUTER, DRIVE GEAR

23112-GB0-910

$28.82

21

GEAR, PRIMARY DRIVE (17T)

23120-086-020

$48.48

22

NUT, LOCK (14MM)

90231-087-010

$3.80

23

WASHER, LOCK (14MM)

90431-086-000

$3.03

24

WASHER B, LOCK

90432-086-000

$4.44

25

WASHER, STOPPER

90483-041-000

$1.92

26

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

27

SCREW, PAN (5X10)

93500-05010-0A

$1.49

28

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
