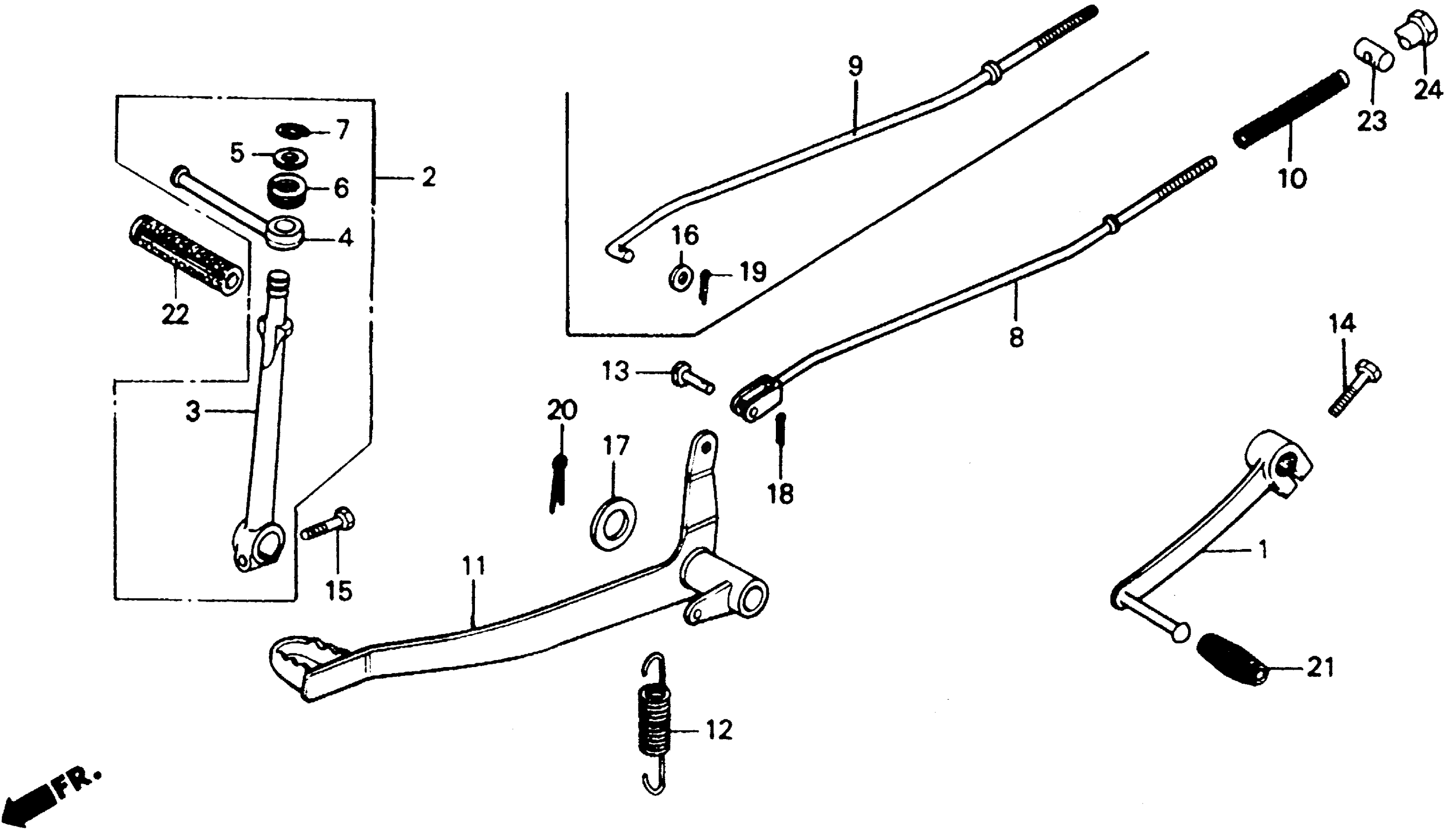

Honda Z50RA (93) MOTORCYCLE, JPN, VIN# JH2AB020-PK200001 BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-181-770

$39.02

2

ARM ASSY., KICK STARTER

28300-GW8-670

Unavailable

8

ROD, RR. BRAKE (NOT AVAILABLE)

43451-GW8-770

Unavailable

10

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

11

PEDAL, BRAKE This part replaces 46500-GW8-870.

46500-GAR-000

Unavailable

12

SPRING, BRAKE PEDAL

46514-GW8-670

$4.33

13

PIN C, JOINT

95015-53000

$3.06

14

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

15

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

17

WASHER, PLAIN (14MM)

94102-14700

$1.49

18

PIN, SPLIT (2.0X12)

94201-20120

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, SPLIT (3.0X45)

94201-30450

$1.49

21

RUBBER, CHANGE PEDAL

95011-40000

$1.49

22

RUBBER A, KICK STARTER

95011-51000

$3.69

23

JOINT A, BRAKE ARM

95015-31001

$1.53

24

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
