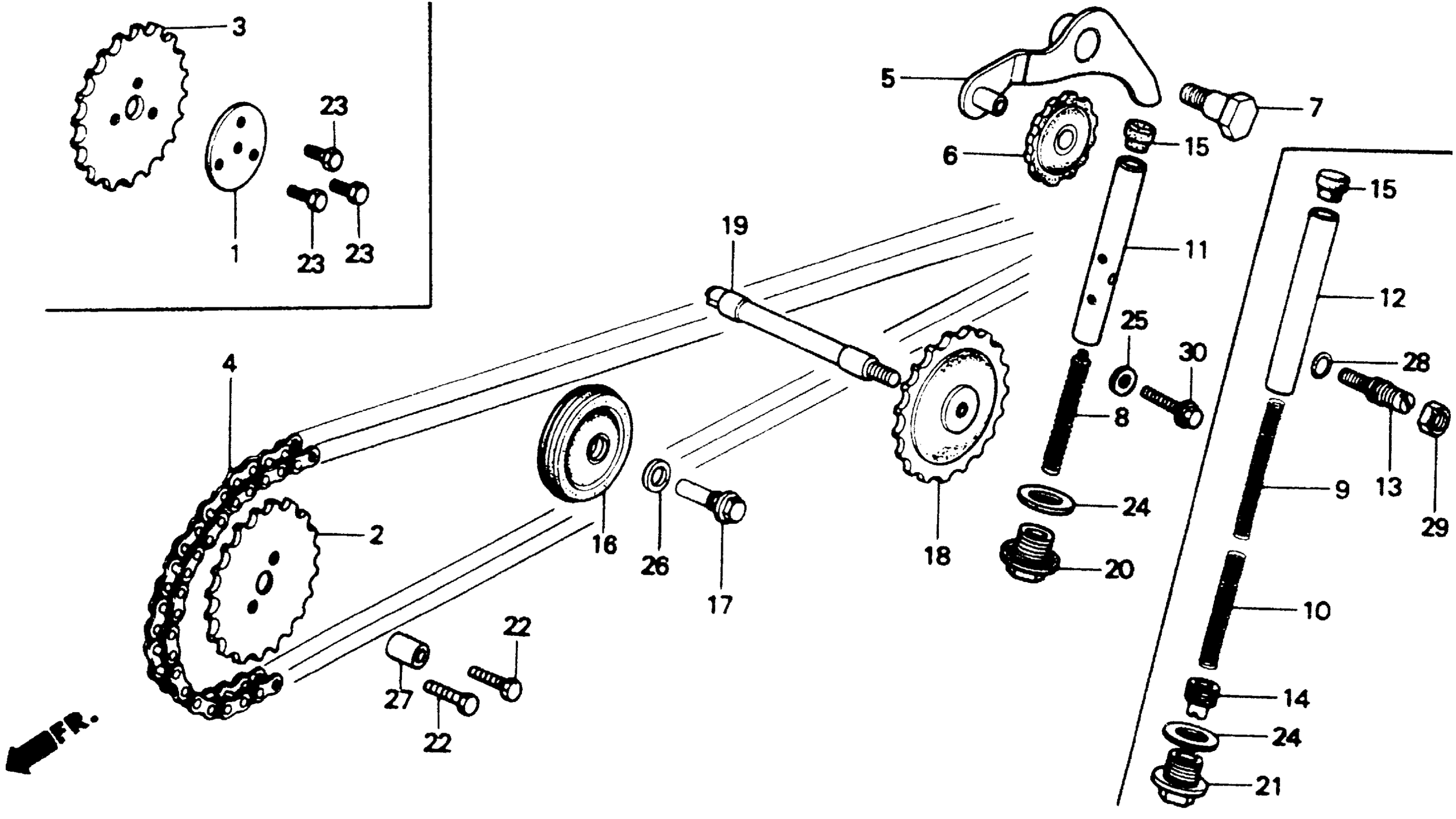

Honda Z50RA (92) MOTORCYCLE, JPN, VIN# JH2AB020-NK100001 TO JH2AB020-NK105410 CAM CHAIN Diagram

#

Description
Price

2

SPROCKET, CAM (28T) (SOURCE: VINTAGE PARTS INC.)

14321-GB6-910

Unavailable

4

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$26.88

4

CHAIN, CAM (82L) (DAIDO)

14401-115-010

$26.88

5

ARM, CAM CHAIN TENSIONER

14500-035-020

$25.17

6

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$14.67

7

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.52

8

SPRING, CAM CHAIN TENSIONER This part replaces 14541-GB4-680.

14541-GB4-681

$4.43

8

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.43

11

ROD, CAM CHAIN TENSIONER PUSH This part replaces 14550-GB0-910.

14550-GB0-911

$19.17

11

ROD, TENSIONER PUSH

14550-GB0-911

$19.17

15

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.12

16

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$18.16

16

ROLLER, CAM CHAIN GUIDE

14610-086-010

$18.16

16

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-013.

14610-086-010

$18.16

17

PIN, CAM CHAIN GUIDE ROLLER | Use up to Engine SN 6405774 This part replaces 14615-035-000.

14615-035-010

$2.58

17

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.58

18

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$20.95

19

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-178-000

$26.36

20

BOLT, SEALING (14MM)

90081-035-000

$3.95

22

BOLT, KNOCK (5MM)

90083-GB6-911

$2.00

24

WASHER, SEALING (14MM)

90441-035-000

$2.17

25

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.25

25

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.25

26

WASHER (8MM)

90481-035-000

$1.70

27

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.09

27

PIN A, DOWEL (8X12)

94301-08120

$2.09

30

BOLT, FLANGE (6X18)

95701-06018-00

$1.48
